Feasibility Study of SiC Wafer Reutilization Process through Laser Splitting and Bonding Techniques

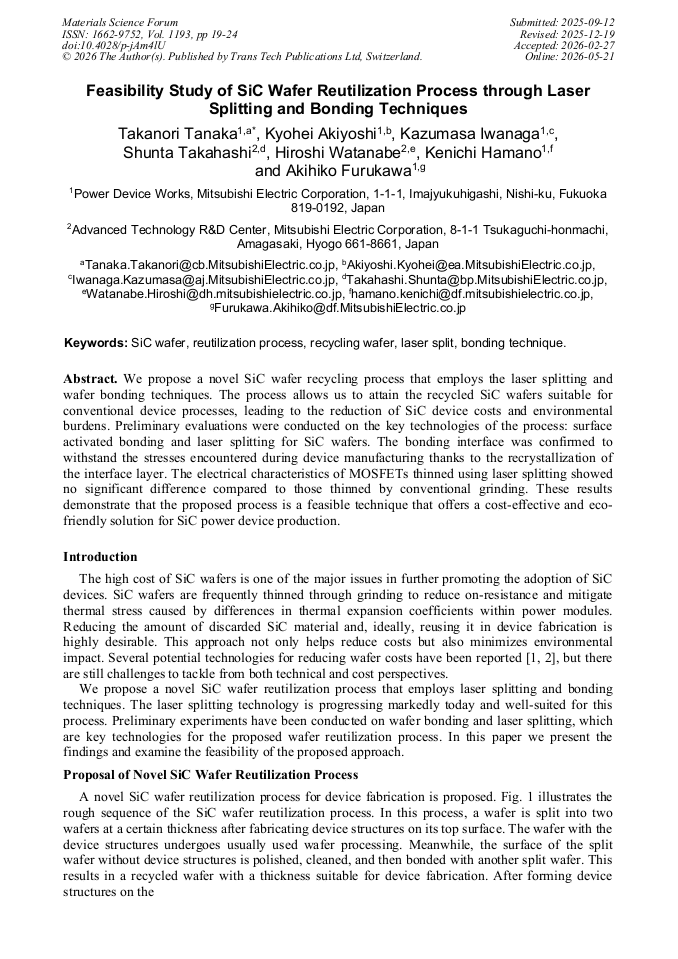

Article Preview
View Pdf By email

Abstract:

We propose a novel SiC wafer recycling process that employs the laser splitting and wafer bonding techniques. The process allows us to attain the recycled SiC wafers suitable for conventional device processes, leading to the reduction of SiC device costs and environmental burdens. Preliminary evaluations were conducted on the key technologies of the process: surface activated bonding and laser splitting for SiC wafers. The bonding interface was confirmed to withstand the stresses encountered during device manufacturing thanks to the recrystallization of the interface layer. The electrical characteristics of MOSFETs thinned using laser splitting showed no significant difference compared to those thinned by conventional grinding. These results demonstrate that the proposed process is a feasible technique that offers a cost-effective and eco-friendly solution for SiC power device production.

You have full access to the following eBook
Wafer Processing Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1193)

Pages:

19-24

DOI:

https://doi.org/10.4028/p-jAm4lU

Citation:

Cite this paper

Online since:

May 2026

Authors:

Takanori Tanaka*, Kyohei Akiyoshi, Kazumasa Iwanaga, Shunta Takahashi, Hiroshi Watanabe, Kenichi Hamano, Akihiko Furukawa

Keywords:

Bonding Technique, Laser Split, Recycling Wafer, Reutilization Process, SiC Wafer

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] S. Rouchier, G. Gaudin, J. Widiez, F. Allibert, E. Rolland, K. Vladimirova, G. Gélineau, N. Troutot, C. Navone, G. Berre, D. Bosch, Y.L. Leow, A. Duboust, A. Drouin, J-M. Bethoux, R. Boulet, A. Chapelle, E. Cela, G. Lavaitte, A. Bouville-Lallart, L. Viravaux, F. Servant, S. Bhargava, S. Thomas, I. Radu, C. Maleville and W. Schwarzenbach, Materials Science Forum 1062, 131 (2022).

DOI: 10.4028/p-mxxdef

Google Scholar

[2] H.Uchida, M. Kobayashi, N. Hatta, S. Ishikawa, K. Ozono, K. Masumoto, S. Kurihara, S. Harada and K. Kojima, Defect and Diffusion Forum 434, 39 (2024).

DOI: 10.4028/p-m70plj

Google Scholar

[3] T. Suga, F. Mu, M. Fujino, Y. Takahashi, H. Nakazawa and K. Iguchi, Jpn. J. Appl. Phys., 54, 030214 (2015).

DOI: 10.7567/jjap.54.030214

Google Scholar

[4] K. Hirata, Proc. of SPIE, 10520, 1052003 (2018).

Google Scholar

[5] K. Akiyoshi, T. Tanaka, S. Takahashi, K. Iwanaga, K. Hamano and A. Furukawa, "Impacts of Wafer Thinning Process Using Laser Slice Technique on Silicon Carbide Device Characteristics", Proc. of ICSCRM 2025 (in press).
