CMOS-Compatible Pore Nucleation on 4H-SiC Si-Face via Reactive Ion Etching for Homogeneous Electrochemical Etching

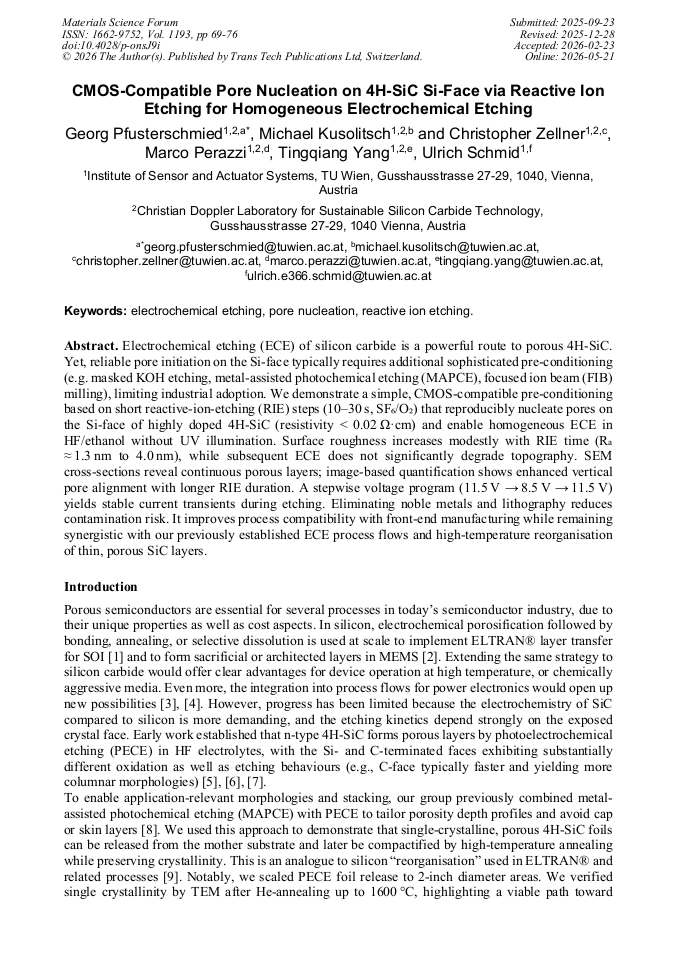

Article Preview

View Pdf By email

Abstract:

Electrochemical etching (ECE) of silicon carbide is a powerful route to porous 4H‑SiC. Yet, reliable pore initiation on the Si-face typically requires additional sophisticated pre-conditioning (e.g. masked KOH etching, metal-assisted photochemical etching (MAPCE), focused ion beam (FIB) milling), limiting industrial adoption. We demonstrate a simple, CMOS‑compatible pre‑conditioning based on short reactive‑ion‑etching (RIE) steps (10–30 s, SF₆/O₂) that reproducibly nucleate pores on the Si‑face of highly doped 4H‑SiC (resistivity < 0.02 Ω·cm) and enable homogeneous ECE in HF/ethanol without UV illumination. Surface roughness increases modestly with RIE time (R_a ≈ 1.3 nm to 4.0 nm), while subsequent ECE does not significantly degrade topography. SEM cross‑sections reveal continuous porous layers; image‑based quantification shows enhanced vertical pore alignment with longer RIE duration. A stepwise voltage program (11.5 V → 8.5 V → 11.5 V) yields stable current transients during etching. Eliminating noble metals and lithography reduces contamination risk. It improves process compatibility with front‑end manufacturing while remaining synergistic with our previously established ECE process flows and high‑temperature reorganisation of thin, porous SiC layers.

You have full access to the following eBook

Wafer Processing

Info:

Periodical:

Materials Science Forum (Volume 1193)

Pages:

69-76

DOI:

https://doi.org/10.4028/p-onsJ9i

Citation:

Cite this paper

Online since:

May 2026

Authors:

Georg Pfusterschmied*, Michael Kusolitsch, Christopher Zellner, Marco Perazzi, Ting Qiang Yang, Ulrich Schmid

Keywords:

Electrochemical Etching, Pore Nucleation, Reactive Ion Etching

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

[1] M. Jurczak et al., 'Silicon-on-Nothing (SON)-an innovative process for advanced CMOS', IEEE Transactions on Electron Devices, vol. 47, no. 11, p.2179–2187, 2000.

DOI: 10.1109/16.877181

[2] T. Yonehara and K. Sakaguchi, 'ELTRAN® (SOI-Epi WaferTM) Technology', in Progress in SOI Structures and Devices Operating at Extreme Conditions, F. Balestra, A. Nazarov, and V. S. Lysenko, Eds, Dordrecht: Springer Netherlands, 2002, p.39–86.

DOI: 10.1007/978-94-010-0339-1_5

[3] M. B. J. Wijesundara and R. Azevedo, Silicon Carbide Microsystems for Harsh Environments. 2011.

[4] X. She, A. Q. Huang, O. Lucia, and B. Ozpineci, 'Review of Silicon Carbide Power Devices and Their Applications', IEEE Trans Ind Electron, vol. 64, no. 10, p.8193–8205, 2017.

DOI: 10.1109/TIE.2017.2652401

[5] Y. Ke, R. P. Devaty, and W. J. Choyke, 'Comparative columnar porous etching studies on n-type 6H SiC crystalline faces', physica status solidi (b), vol. 245, no. 7, p.1396–1403, 2008.

DOI: 10.1002/pssb.200844024

[6] A. O. Konstantinov, C. I. Harris, and E. Janzén, 'Electrical properties and formation mechanism of porous silicon carbide', Applied Physics Letters, vol. 65, no. 21, p.2699–2701, Nov. 1994.

DOI: 10.1063/1.112610

[7] G. Gautier, F. Cayrel, M. Capelle, J. Billoué, X. Song, and J.-F. Michaud, 'Room light anodic etching of highly doped n-type 4 H-SiC in high-concentration HF electrolytes: Difference between C and Si crystalline faces', Nanoscale Res Lett, vol. 7, no. 1, p.367, Dec. 2012.

DOI: 10.1186/1556-276X-7-367

[8] M. Leitgeb, C. Zellner, M. Schneider, and U. Schmid, 'A combination of metal assisted photochemical and photoelectrochemical etching for tailored porosification of 4H SiC substrates', ECS Journal of Solid State Science and Technology, vol. 5, no. 10, p. P556, 2016.

DOI: 10.1149/2.0041610jss

[9] M. Leitgeb et al., 'Stacked Layers of Different Porosity in 4H SiC Substrates Applying a Photoelectrochemical Approach', J. Electrochem. Soc., vol. 164, no. 12, p. E337, Aug. 2017.

DOI: 10.1149/2.1081712jes

[10] M. Perazzi et al., 'High-Temperature Reorganization Behavior of Single-Crystalline Porous 4H-SiC Thin Foils', presented at the ICSCRM 2023, Trans Tech Publ, 2023, p.43–49.

DOI: 10.4028/p-d0xoyc

[11] S. N. Wahid, M. Leitgeb, G. Pfusterschmied, and U. Schmid, 'A Novel Approach for Thin 4H-SiC Foil Realization Using Controlled Spalling from a 4H-SiC Wafer', presented at the ICSCRM 2023, Trans Tech Publ, 2023, p.35–41.

DOI: 10.4028/p-8aeonp

[12] V. Lehmann, 'The physics of macropore formation in low doped n-type silicon', Journal of the Electrochemical Society, vol. 140, no. 10, p.2836, 1993.

DOI: 10.1149/1.2220919

[13] P. Schmuki, U. Schlierf, T. Herrmann, and G. Champion, 'Pore initiation and growth on n-InP(100)', Electrochimica Acta, vol. 48, no. 9, p.1301–1308, Apr. 2003.

DOI: 10.1016/S0013-4686(02)00839-3

[14] L. Jiang and R. Cheung, 'Impact of Ar addition to inductively coupled plasma etching of SiC in SF6/O2', Microelectronic Engineering, vol. 73–74, p.306–311, June 2004.

DOI: 10.1016/j.mee.2004.02.058

[15] M. Huff, 'Recent Advances in Reactive Ion Etching and Applications of High-Aspect-Ratio Microfabrication', Micromachines (Basel), vol. 12, no. 8, p.991, Aug. 2021.

DOI: 10.3390/mi12080991

[16] M. Leitgeb, C. Zellner, M. Schneider, and U. Schmid, 'Porous single crystalline 4H silicon carbide rugate mirrors', APL Mater., vol. 5, no. 10, p.106106, Oct. 2017.

DOI: 10.1063/1.5001876

[17] M. Leitgeb, C. Zellner, G. Pfusterschmied, M. Schneider, and U. Schmid, 'Porous Silicon Carbide for MEMS', EUROSENSORS 2017, vol. 1, no. 4, p.297, 2017.

DOI: 10.3390/proceedings1040297

[18] M. Mokhtarzadeh, M. Carulla, R. Kozak, and C. David, 'Optimization of etching processes for the fabrication of smooth silicon carbide membranes for applications in quantum technology', Micro and Nano Engineering, vol. 16, p.100155, Aug. 2022.

DOI: 10.1016/j.mne.2022.100155

[19] A. Hochreiter, F. Groß, M.-N. Möller, M. Krieger, and H. B. Weber, 'Electrochemical etching strategy for shaping monolithic 3D structures from 4H-SiC wafers', Sci Rep, vol. 13, no. 1, p.19086, Nov. 2023.

DOI: 10.1038/s41598-023-46110-2

[20] G. Lee et al., 'Oxidation differences on Si- versus C-terminated surfaces of SiC during planarization in the fabrication of high-power, high-frequency semiconductor device', Sci Rep, vol. 13, p.22847, Dec. 2023.

DOI: 10.1038/s41598-023-49622-z

[21] M. Ohmukai, M. Honda, Y. Kodama, H. Tsunekuni, and Y. Tsutsumi, 'The effect of chemical treatment on porous silicon: the role of alcohol', MRS Online Proceedings Library, vol. 737, no. 1, p.39, Dec. 2002.

DOI: 10.1557/PROC-737-F3.9
