Study on Electrochemical Assisted Fixed-Abrasive Lapping for Wafer Thinning of Monocrystalline Silicon Carbide Wafer

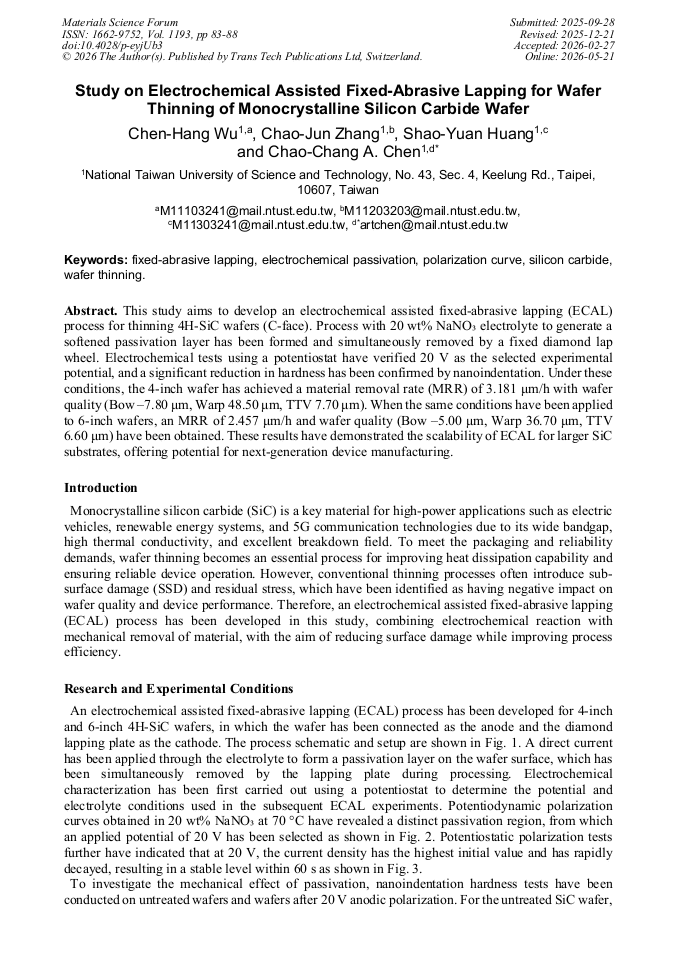

Article Preview
View Pdf By email

Abstract:

This study aims to develop an electrochemical assisted fixed-abrasive lapping (ECAL) process for thinning 4H-SiC wafers (C-face). Process with 20 wt% NaNO₃ electrolyte to generate a softened passivation layer has been formed and simultaneously removed by a fixed diamond lap wheel. Electrochemical tests using a potentiostat have verified 20 V as the selected experimental potential, and a significant reduction in hardness has been confirmed by nanoindentation. Under these conditions, the 4-inch wafer has achieved a material removal rate (MRR) of 3.181 μm/h with wafer quality (Bow –7.80 μm, Warp 48.50 μm, TTV 7.70 μm). When the same conditions have been applied to 6-inch wafers, an MRR of 2.457 μm/h and wafer quality (Bow –5.00 μm, Warp 36.70 μm, TTV 6.60 μm) have been obtained. These results have demonstrated the scalability of ECAL for larger SiC substrates, offering potential for next-generation device manufacturing.

You have full access to the following eBook
Wafer Processing Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1193)

Pages:

83-88

DOI:

https://doi.org/10.4028/p-eyjUb3

Citation:

Cite this paper

Online since:

May 2026

Authors:

Chen Hang Wu, Chao Jun Zhang, Shao Yuan Huang*, Chao Chang Arthur Chen

Keywords:

Electrochemical Passivation, Fixed-Abrasive Lapping, Polarization Curve, Silicon Carbide (SiC), Wafer Thinning

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] P. Wu, et al., Effect of voltage on electrochemical mechanical polishing (ECMP) of 4H-SiC with fixed abrasives, Journal of Materials Research and Technology (2025).

DOI: 10.1016/j.jmrt.2025.05.026

Google Scholar

[2] C.-H. Wu, Research on electrochemical-assisted fixed abrasive lapping process for monocrystalline silicon carbide wafer, M.S. Thesis, National Taiwan University of Science and Technology, Taipei, Taiwan (2024).

Google Scholar

[3] T.-C. Wu, Research on electrochemical-assisted fixed abrasive lapping process for monocrystalline silicon wafer thinning, M.S. Thesis, National Taiwan University of Science and Technology, Taipei, Taiwan (2023).

Google Scholar

[4] X. Yang, et al., Selective electrochemical mechanical polishing of 4H-SiC surface employing porous material impregnated with electrolyte, Ceramics International 49 (22) (2023) 34569–34581.

DOI: 10.1016/j.ceramint.2023.08.101

Google Scholar

[5] X. Yang, et al., Charge utilization efficiency and side reactions in the electrochemical mechanical polishing of 4H-SiC (0001), Journal of the Electrochemical Society 169 (2) (2022) 023501.

DOI: 10.1149/1945-7111/ac4b1f

Google Scholar

[6] Z. Chen, Y. Zhao, Investigation into electrochemical oxidation behavior of 4H-SiC with varying anodizing conditions, Electrochemistry Communications 109 (2019) 106608.

DOI: 10.1016/j.elecom.2019.106608

Google Scholar
