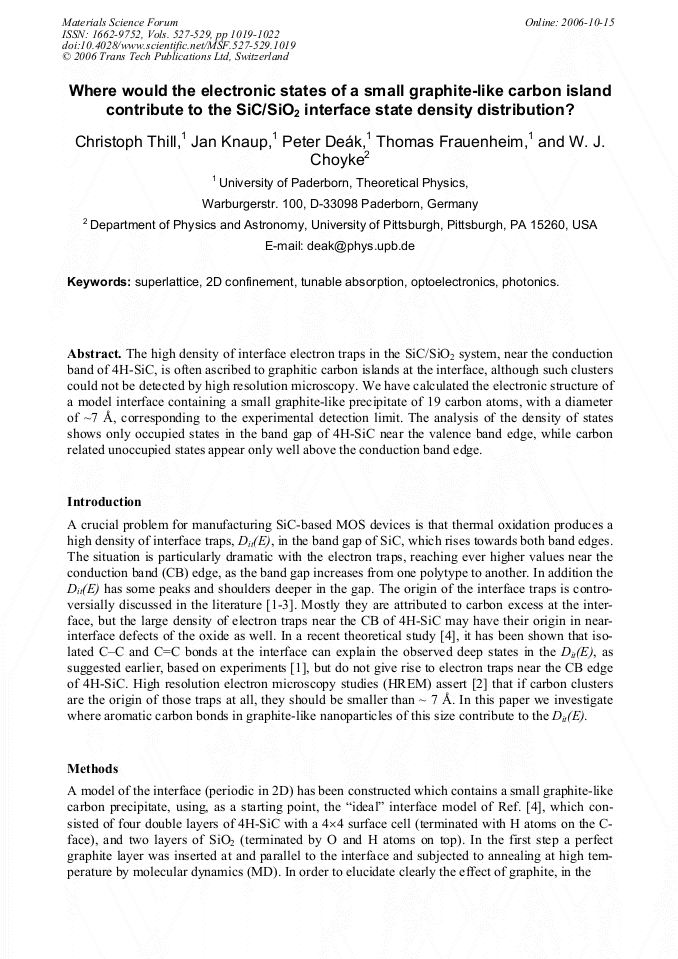

Where Would the Electronic States of a Small Graphite-Like Carbon Island Contribute to the SiC/SiO₂ Interface State Density Distribution?

Abstract:

The high density of interface electron traps in the SiC/SiO2 system, near the conduction band of 4H-SiC, is often ascribed to graphitic carbon islands at the interface, although such clusters could not be detected by high resolution microscopy. We have calculated the electronic structure of a model interface containing a small graphite-like precipitate of 19 carbon atoms, with a diameter of ~7 Å, corresponding to the experimental detection limit. The analysis of the density of states shows only occupied states in the band gap of 4H-SiC near the valence band edge, while carbon related unoccupied states appear only well above the conduction band edge.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2005

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 527-529)

Pages:

1019-1022

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.527-529.1019

Citation:

Cite this paper

Online since:

October 2006

Authors:

Christoph Thill, Jan Knaup, Peter Deák, Thomas Frauenheim, Wolfgang J. Choyke

Keywords:

2D Confinement, Optoelectronics, Photonics, Superlattice, Tunable Absorption

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] V. V. Afanas'ev, F. Ciobanu, G. Pensl, and A. Stesmans, in Silicon Carbide - Recent Major Advances, eds. W. J. Choyke, H. Matsunami, and G. Pensl (Springer, 2003), p.343.

DOI: 10.1007/978-3-642-18870-1

Google Scholar

[2] E. Pippel, J. Woltersdorf, H. Ö. Ólafsson, and E. Ö. Sveinbjörnsson: J. Appl. Phys. 97 (2005), Nr. 034302.

Google Scholar

[3] K. -C. Chang et al.: J. Appl. Phys. 95 (2004), p.8252.

Google Scholar

[4] J.M. Knaup et al.: Phys. Rev. B 71 (2005), Nr. 235321.

Google Scholar

[5] Ch. Thill et al., to be published.

Google Scholar

[6] V. V. Afanas'ev et al.: Appl. Phys. Lett. 82 (2003), p.568.

Google Scholar

[7] J.M. Knaup et al.: Phys. Rev. B 72 (2005), Nr. 115323.

Google Scholar
