Improved Structural Quality and Carrier Decay Times in GaN Epitaxy on SiN and TiN Porous Network Templates

Abstract:

Article Preview

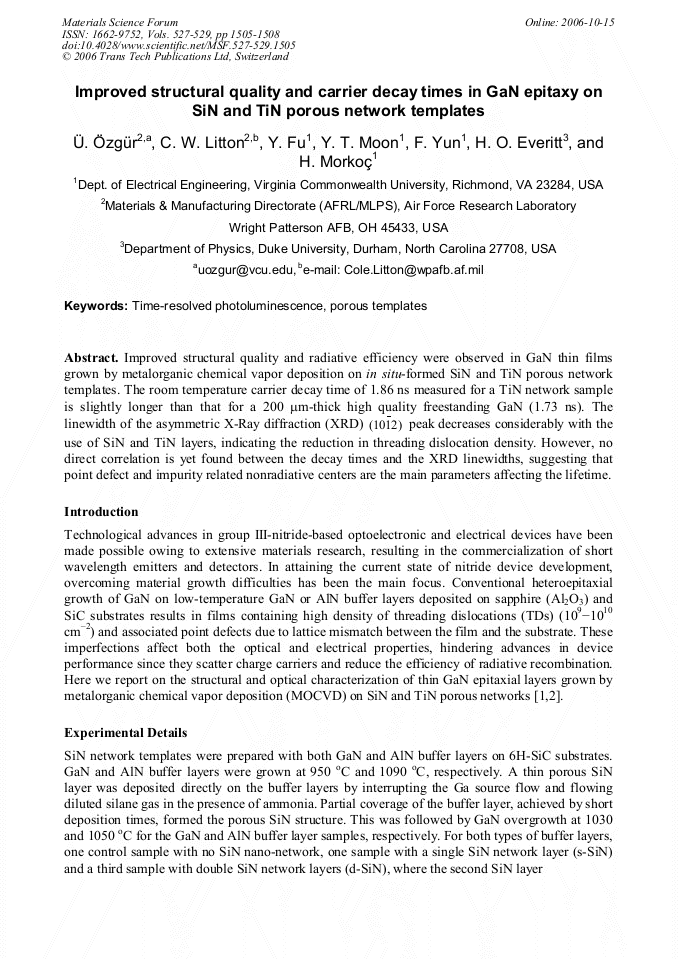

Improved structural quality and radiative efficiency were observed in GaN thin films grown by metalorganic chemical vapor deposition on in situ-formed SiN and TiN porous network templates. The room temperature carrier decay time of 1.86 ns measured for a TiN network sample is slightly longer than that for a 200 μm-thick high quality freestanding GaN (1.73 ns). The linewidth of the asymmetric X-Ray diffraction (XRD) (1012) peak decreases considerably with the use of SiN and TiN layers, indicating the reduction in threading dislocation density. However, no direct correlation is yet found between the decay times and the XRD linewidths, suggesting that point defect and impurity related nonradiative centers are the main parameters affecting the lifetime.

Info:

Periodical:

Materials Science Forum (Volumes 527-529)

Edited by:

Robert P. Devaty, David J. Larkin and Stephen E. Saddow

Pages:

1505-1508

Citation:

Ü. Özgür et al., "Improved Structural Quality and Carrier Decay Times in GaN Epitaxy on SiN and TiN Porous Network Templates", Materials Science Forum, Vols. 527-529, pp. 1505-1508, 2006

Online since:

October 2006

Export:

Price:

$41.00

[1] A. Sagar et al.: Phys. Status Solidi (a) Vol 202 (2005), p.722.

[2] Y. Fu et al.: Appl. Phys. Lett. Vol. 86 (2005), p.043108.

[3] H. K. Kwon et al.: Appl. Phys. Lett. Vol. 77 (2000), p.2503.

[4] G. E. Bunea, W. D. Herzog, M. S. Ünlü , B. B. Goldberg, and R. J. Molnar: Appl. Phys. Lett. Vol. 75 (1999), p.838.

[5] S. Jurš÷nas, S. Miasojedovas, G. Kurilčik, A. Žukauskas, and P. R. Hageman: Phys. Stat. Sol. (a) Vol. 201 (2004), p.199.

[6] A. V. Sampath et al.: J. Vac. Sci. Technol. B Vol. 22 (2004), p.1487.

[7] S. Jurš÷nas et al.: Appl. Phys. Lett. Vol. 78 (2001), p.3776.

[8] S. F. Chichibu et al.: Appl. Phys. Lett. Vol. 74 (1999), p.1460.

[9] T. Izumi et al.: J. Lumin. Vols. 87-89 (2000), p.1196.
