Stability Investigation of High Heat-Resistant Resin under High Temperature for Ultra-High Blocking Voltage SiC Devices

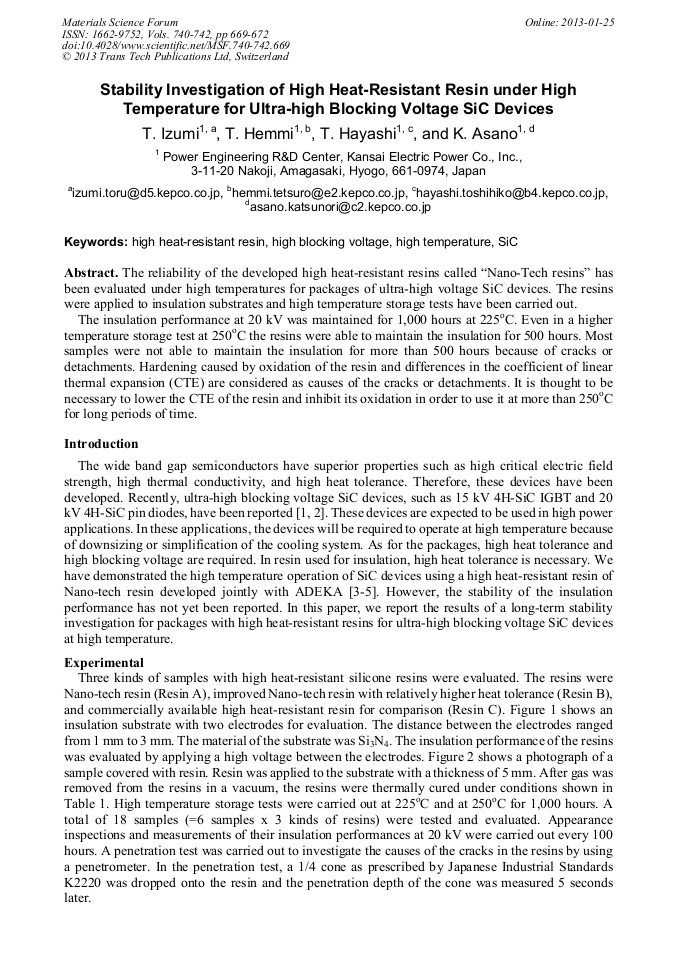

Abstract:

The reliability of three kinds of high heat-resistant resins has been evaluated under high temperatures. These resins were applied to insulation substrates and a high temperature storage test has been carried out. The insulation performance of the resins was evaluated by applying 20 kV between a pair of electrodes on the substrate covered with resin. The insulation performance at 20 kV was maintained in samples with two of the three kinds of resins for 1,000 hours at 225oC. In a higher temperature storage test at 250oC, samples with one of the kinds of resin were not able to maintain insulation of 20 kV for 200 hours, while the two remaining resins were not able to maintain the insulation for 1,000 hours. In most samples that were not able to maintain the insulation, cracks or detachments were seen. Hardening caused by oxidation of the resin and differences in the coefficient of linear thermal expansion (CTE) are considered as causes of the cracks or detachments. It is thought to be necessary to lower the CTE of the resin and inhibit its oxidation in order to use it at more than 250oC for long periods of time.

• Periodical: Materials Science Forum (Volumes 740-742)
• Pages: 669-672
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.740-742.669
• Online since: January 2013
• Authors: Toru Izumi, Tetsuro Hemmi, Toshihiko Hayashi, Katsunori Asano
• Keywords: High Blocking Voltage, High Heat-Resistant Resin, High-Temperature, Silicon Carbide (SiC)

References

[1] Sei, Ryu, Lin Cheng, Sarit Dhar, Craig Capell, Charlotte Jonas, Jack Clayton, Matt Donofrio, Michael O'Loughlin, Al Burk, Anant Agarwal and John Palmour, Development of 15 kV 4H-SiC IGBTs, Mater. Sci. Forum, vols. 712-720, pp.1135-1138, (2011).

DOI: 10.4028/www.scientific.net/msf.717-720.1135

[2] Hiroki Niwa, Gan Feng, John Suda, Tsunenobu Kimoto, Breakdown Characteristics of 12-20 kV-class 4H-SiC Pin Diodes with Improved Junction Termination Structures, Proceedings of ISPSD2012, (2012).

DOI: 10.1109/ispsd.2012.6229101

[3] Y. Sugawara, K. Asano, A. Agarwal, S. Ryu, J. Palmour, Y. Syoji, S. Okada, S. Ogata, T. Izumi, 4. 5kV 120A SiCGT and Its PWM Three Phase Inverter Operation of 100kVA Class, , Proceedings of ISPSD2006, pp.117-120, (2006).

DOI: 10.1109/ispsd.2006.1666086

[4] K. Asano, Y. Sugawara, A. Tanaka, Y. Miyanagi, S. Okada, S. Ogata, T. Izumi, K. Nakayama, New Measurement Method of Tj of SiCGT and Its Application to a High Voltage Inverter Operating at greater than 300°C, Proceedings of ISPSD2007, pp.137-140, (2007).

DOI: 10.1109/ispsd.2007.4294951

[5] Y. Sugawara, S. Ogata, T. Izumi, K. Nakayama, Y. Miyanagi, K. Asano, A. Tanaka, S. Okada and R. Ishii, Development of a 100kVA SiC Inverter with High Overload Capability of 300kVA, " Proceedings of ISPDS, 09, pp.331-334, (2009).

DOI: 10.1109/ispsd.2009.5158069
