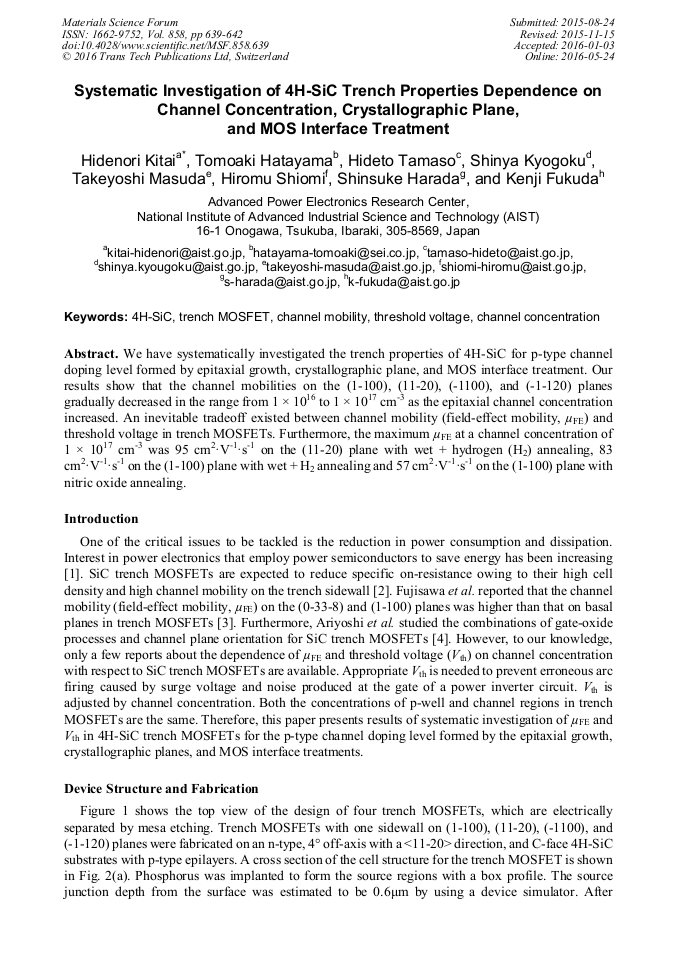

Systematic Investigation of 4H-SiC Trench Properties Dependence on Channel Concentration, Crystallographic Plane, and MOS Interface Treatment

Abstract:

We have systematically investigated the trench properties of 4H-SiC for p-type channel doping level formed by epitaxial growth, crystallographic plane, and MOS interface treatment. Our results show that the channel mobilities on the (1-100), (11-20), (-1100), and (-1-120) planes gradually decreased in the range from 1 × 10¹⁶ to 1 × 10¹⁷ cm^-3 as the epitaxial channel concentration increased. An inevitable tradeoff existed between channel mobility (field-effect mobility, µ_FE) and threshold voltage (V_th) in trench MOSFETs. Furthermore, the maximum µ_FE at a channel concentration of 1 × 10¹⁷ cm^-3 was 95 cm²·V^-1·s^-1 on the (11-20) plane with wet + hydrogen (H₂) annealing, 83 cm²·V^-1·s^-1 on the (1-100) plane with wet + H₂ annealing and 57 cm²·V^-1·s^-1 on the (1-100) plane with nitric oxide annealing.
