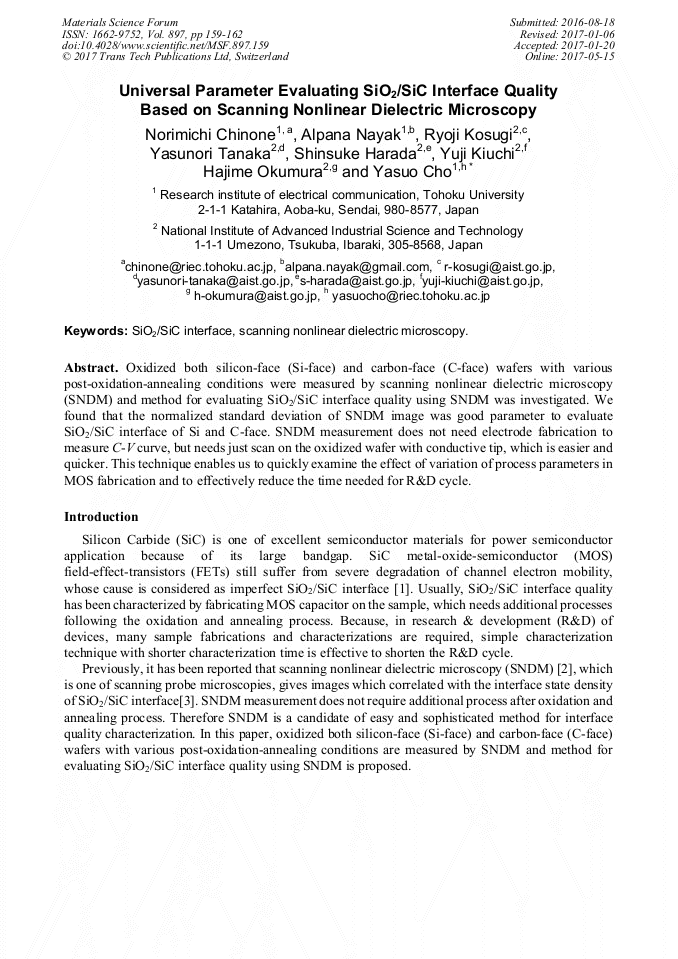

Universal Parameter Evaluating SiO₂/SiC Interface Quality Based on Scanning Nonlinear Dielectric Microscopy

Abstract:

Oxidized both silicon-face (Si-face) and carbon-face (C-face) wafers with various post-oxidation-annealing conditions were measured by scanning nonlinear dielectric microscopy (SNDM) and method for evaluating SiO₂/SiC interface quality using SNDM was investigated. We found that the normalized standard deviation of SNDM image was good parameter to evaluate SiO₂/SiC interface of Si and C-face. SNDM measurement does not need electrode fabrication to measure C-V curve, but needs just scan on the oxidized wafer with conductive tip, which is easier and quicker. This technique enables us to quickly examine the effect of variation of process parameters in MOS fabrication and to effectively reduce the time needed for R&D cycle.
