Improved Interface Trap Density Close to the Conduction Band Edge of a-Face 4H-SiC MOSFETs Revealed Using the Charge Pumping Technique

Abstract:

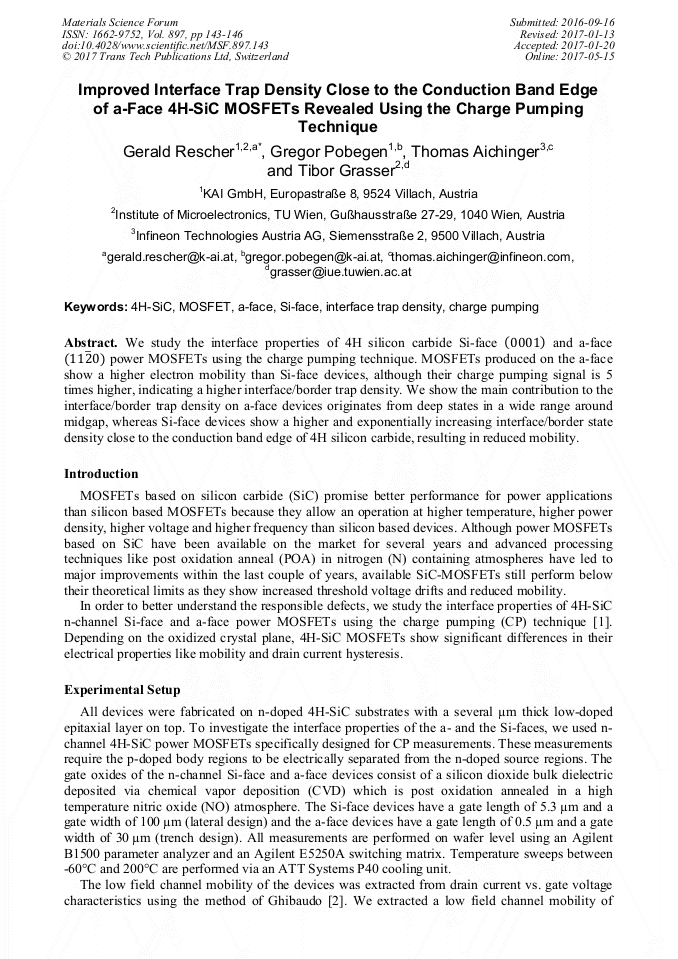

Article Preview

We study the interface properties of 4H silicon carbide Si-face 0001 and a-face 11220 power MOSFETs using the charge pumping technique. MOSFETs produced on the a-face show a higher electron mobility than Si-face devices, although their charge pumping signal is 5 times higher, indicating a higher interface/border trap density. We show the main contribution to the interface/border trap density on a-face devices originates from deep states in a wide range around midgap, whereas Si-face devices show a higher and exponentially increasing interface/border state density close to the conduction band edge of 4H silicon carbide, resulting in reduced mobility.

Info:

Periodical:

Edited by:

Konstantinos Zekentes, Konstantin V. Vasilevskiy and Nikolaos Frangis

Pages:

143-146

Citation:

G. Rescher et al., "Improved Interface Trap Density Close to the Conduction Band Edge of a-Face 4H-SiC MOSFETs Revealed Using the Charge Pumping Technique", Materials Science Forum, Vol. 897, pp. 143-146, 2017

Online since:

May 2017

Export:

Price:

$38.00

* - Corresponding Author

[1] J. S. Brugler et al, Charge pumping in MOS devices, IEEE TED , 16. 3 (1969): 297-302.

[2] G. Ghibaudo, New Method for the extraction of MOSFET parameters, Electronic Letters, 24. 9 (1988): 543-545.

[3] H. Yano et al, Increased channel mobility in 4H-SiC UMOSFETs using on-axis substrates, Materials science forum. Vol. 556. Trans Tech Publications, (2007).

DOI: https://doi.org/10.4028/www.scientific.net/msf.556-557.807

[4] T. Aichinger et al, Charge pumping revisited-the benefits of an optimized constant base level charge pumping technique for MOSFET analysis, IEEE IIRW, (2007).

DOI: https://doi.org/10.1109/irws.2007.4469223

[5] A. Salinaro et al., Charge Pumping Measurements on Differently Passivated Lateral 4H-SiC MOSFETs. IEEE Transactions on Electron Devices, 62. 1 (2015): 155-163.

DOI: https://doi.org/10.1109/ted.2014.2372874

[6] G. van den Bosch et al., Spectroscopic charge pumping: A new procedure for measuring interface trap distributions on MOS transistors. IEEE TED 38. 8 (1991): 1820-1831.

DOI: https://doi.org/10.1109/16.119021

[7] T. Kimoto et al., Physics of SiC MOS interface and development of trench MOSFETs, IEEE Workshop on Wide Bandgap Power Devices and Applications, (2013): 135-138.

DOI: https://doi.org/10.1109/wipda.2013.6695580
