Investigation of 4H-SiC Extraction-Enhanced Vertical Insulated-Gate Bipolar Transistor with Lightly Doped Extractor in Collector Region

Abstract:

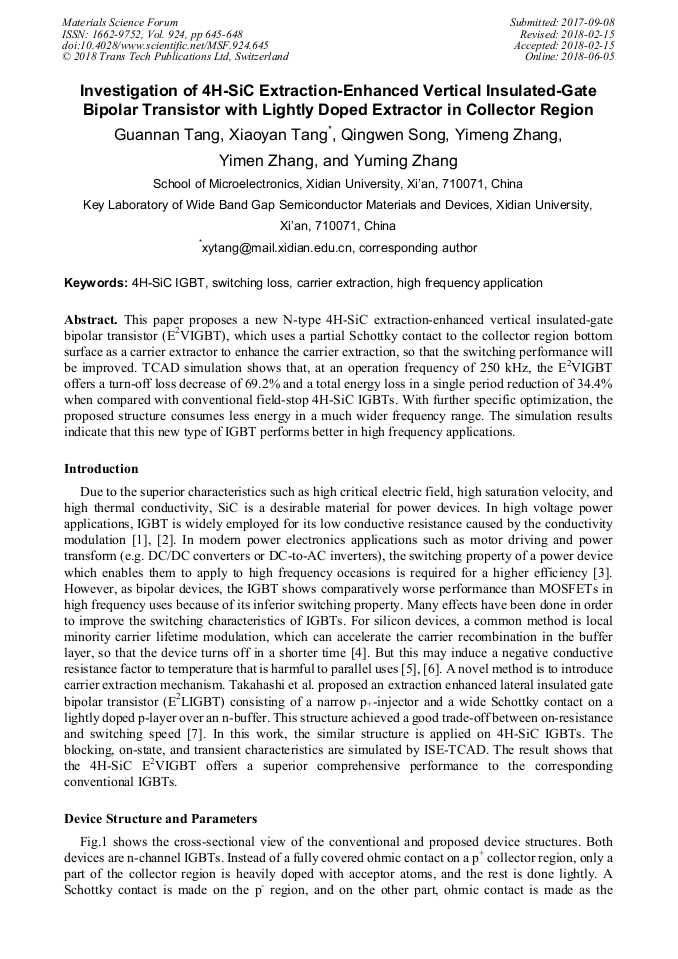

Article Preview

This paper proposes a new N-type 4H-SiC extraction-enhanced vertical insulated-gate bipolar transistor (E2VIGBT), which uses a partial Schottky contact to the collector region bottom surface as a carrier extractor to enhance the carrier extraction, so that the switching performance will be improved. TCAD simulation shows that, at an operation frequency of 250 kHz, the E2VIGBT offers a turn-off loss decrease of 69.2% and a total energy loss in a single period reduction of 34.4% when compared with conventional field-stop 4H-SiC IGBTs. With further specific optimization, the proposed structure consumes less energy in a much wider frequency range. The simulation results indicate that this new type of IGBT performs better in high frequency applications.

Info:

Periodical:

Edited by:

Robert Stahlbush, Philip Neudeck, Anup Bhalla, Robert P. Devaty, Michael Dudley and Aivars Lelis

Pages:

645-648

Citation:

G. N. Tang et al., "Investigation of 4H-SiC Extraction-Enhanced Vertical Insulated-Gate Bipolar Transistor with Lightly Doped Extractor in Collector Region", Materials Science Forum, Vol. 924, pp. 645-648, 2018

Online since:

June 2018

Export:

Price:

$38.00

* - Corresponding Author

[1] Östling, Mikael et al, Proc. ISPSD'11, 2011:10-15.

[2] Ogura T. International Power Electronics Conference. 2014:2068-(2073).

[3] Mino K et al, Power Electronics Conference. IEEE, 2014:1920-(1924).

[4] Yuan X et al, IEEE Transactions on Power Electronics, 2002, 17(5):815-823.

[5] Zhang Q et al, IEEE Transactions on Electron Devices, 2008, 55(8):1912-(1919).

[6] Keller C et al, EPE'93. IET, 1993:1-6 vol.5.

[7] Takahashi S et al, ISPSD'12, 2012:393-396.

[8] Ryu S H et al, ECCE'12, 2012, 11(4):3603-3608.

[9] X. Wang et al, IEEE Transactions on Electron Devices, 2010, 57(2):511-515.
