Blocking Performance Improvements for 4H-SiC P-GTO Thyristors with Carrier Lifetime Enhancement Processes

Abstract:

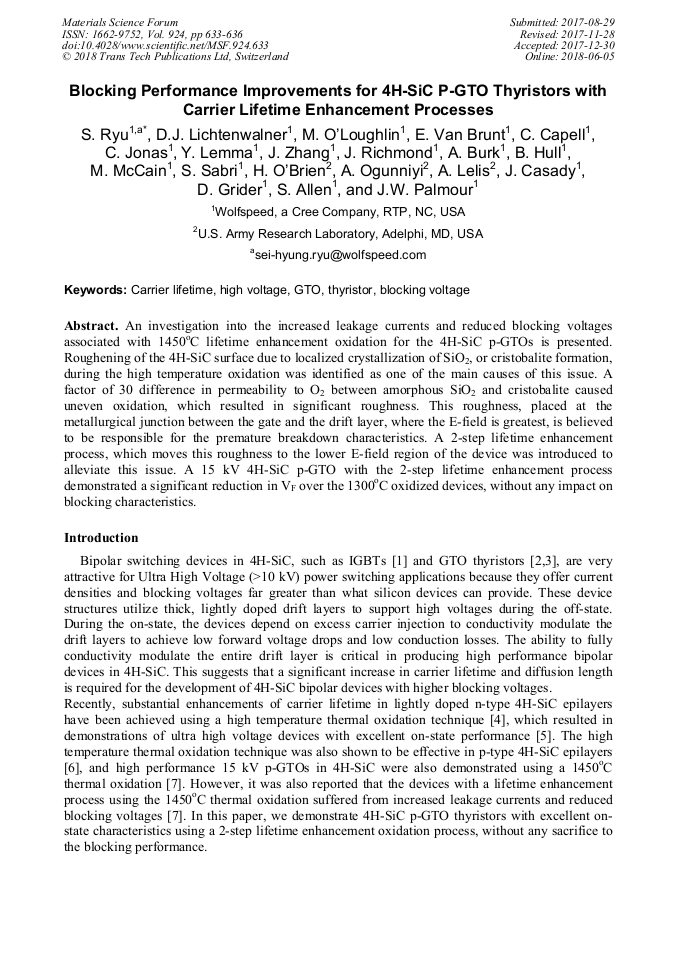

Article Preview

An investigation into the increased leakage currents and reduced blocking voltages associated with 1450°C lifetime enhancement oxidation for the 4H-SiC p-GTOs is presented. Roughening of the 4H-SiC surface due to localized crystallization of SiO2, or crystobalite formation, during the high temperature oxidation was identified as one of the main causes of this issue. A factor of 30 difference in permeability to O2 between amorphous SiO2 and crystobalite caused uneven oxidation, which resulted in significant roughness. This roughness, placed at the metallurgical junction between the gate and the drift layer, where the E-field is greatest, is believed to be responsible for the premature breakdown characteristics. A 2-step lifetime enhancement process, which moves this roughness to the lower E-field region of the device was introduced to alleviate this issue. A 15 kV 4H-SiC p-GTO with the 2-step lifetime enhancement process demonstrated a significant reduction in VF over the 1300°C oxidized devices, without any impact on blocking characteristics.

Info:

Periodical:

Edited by:

Robert Stahlbush, Philip Neudeck, Anup Bhalla, Robert P. Devaty, Michael Dudley and Aivars Lelis

Pages:

633-636

Citation:

S. H. Ryu et al., "Blocking Performance Improvements for 4H-SiC P-GTO Thyristors with Carrier Lifetime Enhancement Processes", Materials Science Forum, Vol. 924, pp. 633-636, 2018

Online since:

June 2018

Export:

Price:

$38.00

* - Corresponding Author

[1] S. Ryu et al., Semicond. Sci. Technol. 30 084001, (2015).

[2] Q. J. Zhang et al., Materials Science Forum Vols. 717-720 (2012), pp.1151-1154.

[3] S. Sundaresan et al., Materials Science Forum Vols. 645-648 (2010), pp.1021-1024.

[4] T. Kimoto et al., Journal of Applied Physics 108, 083721 (2010).

[5] N. Kaji et al., Materials Science Forum Vols. 778-780 (2014), pp.832-835.

[6] T. Hayashi et al., Journal of Applied Physics, 112, 064503 (2012).

[7] S. Ryu et al., Materials Science Forum Vol. 897 (2017) pp.587-590.

[8] L. U. J. T. Ogbuji, J. Electrochem. Soc., Vol. 145, No. 8, Aug 1998, p.2876.

[9] T. Narushima et al., Materials Transactions, JIM, Vol. 38, No. 10 (1997), p.40.
