Experimental Demonstration on Ultra High Voltage and High Speed 4H-SiC DSRD with Smaller Numbers of Die Stacks for Pulse Power

Taiga Goto; Noriyuki Iwamuro; Akira Tokuchi; Takashi Naito; Kenji Fukuda; Noriyuki Iwamuro

doi:10.4028/www.scientific.net/MSF.924.858

Paper Titles

30 kV Pulse Diode Stack Based on 4H-SiC
p.841

30-kW All-SiC Inverter with 3D-Printed Air-Cooled Heatsinks for Plug-In and Full Electric Vehicle Applications
p.845

Extremely Compact Half-Bridge SiC Power Modules Built into EV In-Wheel Motor
p.849

First Demonstration of High Temperature SiC CMOS Gate Driver in Bridge Leg for Hybrid Power Module Application
p.854

Experimental Demonstration on Ultra High Voltage and High Speed 4H-SiC DSRD with Smaller Numbers of Die Stacks for Pulse Power
p.858

SiC JBS Diode Symmetrical Voltage Doubler Represented as the Diffusion-Welded Stack
p.862

The Development of High Thermal Conductivity SiC Power Modules through the Implementation of Advanced Cooling Techniques Coupled with High Heat Transfer Materials
p.866

Short-Circuit Capability of SiC Cascode
p.871

Benefits of High Voltage SiC Applications in Medium Voltage Power Distribution Grids
p.875

HomeMaterials Science ForumMaterials Science Forum Vol. 924Experimental Demonstration on Ultra High Voltage...

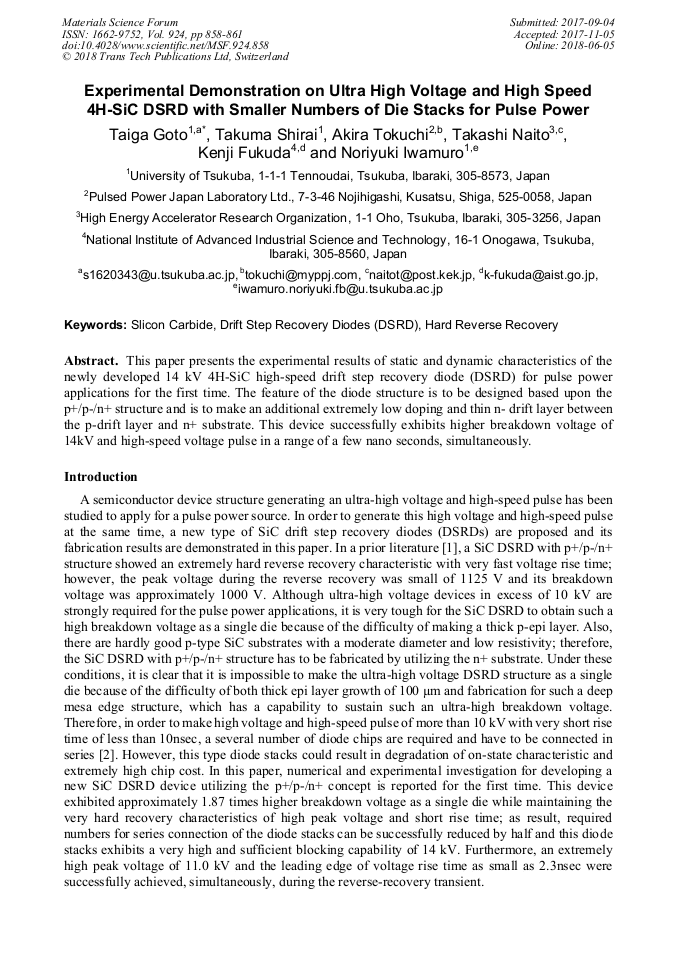

Experimental Demonstration on Ultra High Voltage and High Speed 4H-SiC DSRD with Smaller Numbers of Die Stacks for Pulse Power

Abstract:

This paper presents the experimental results of static and dynamic characteristics of the newly developed 14 kV 4H-SiC high-speed drift step recovery diode (DSRD) for pulse power applications for the first time. The feature of the diode structure is to be designed based upon the p+/p-/n+ structure and is to make an additional extremely low doping and thin n-drift layer between the p-drift layer and n+ substrate. This device successfully exhibits higher breakdown voltage of 14kV and high-speed voltage pulse in a range of a few nanoseconds, simultaneously.
