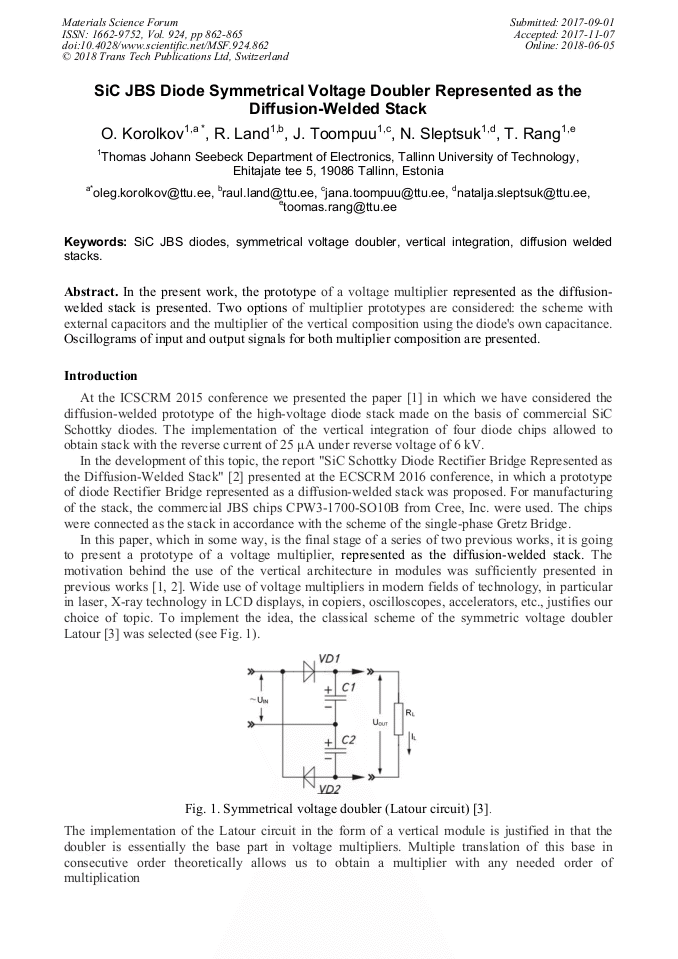

SiC JBS Diode Symmetrical Voltage Doubler Represented as the Diffusion-Welded Stack

Abstract:

In the present work, the prototype of a voltage multiplier represented as the diffusion-welded stack is presented. Two options of multiplier prototypes are considered: the scheme with external capacitors and the multiplier of the vertical composition using the diode's own capacitance. Oscillograms of input and output signals for both multiplier composition are presented.
