Improved Device Characteristics Obtained Using a Novel High-K Dielectric Stack for 4H-SiC n-IGBT: HfO2-SiO2- AlN

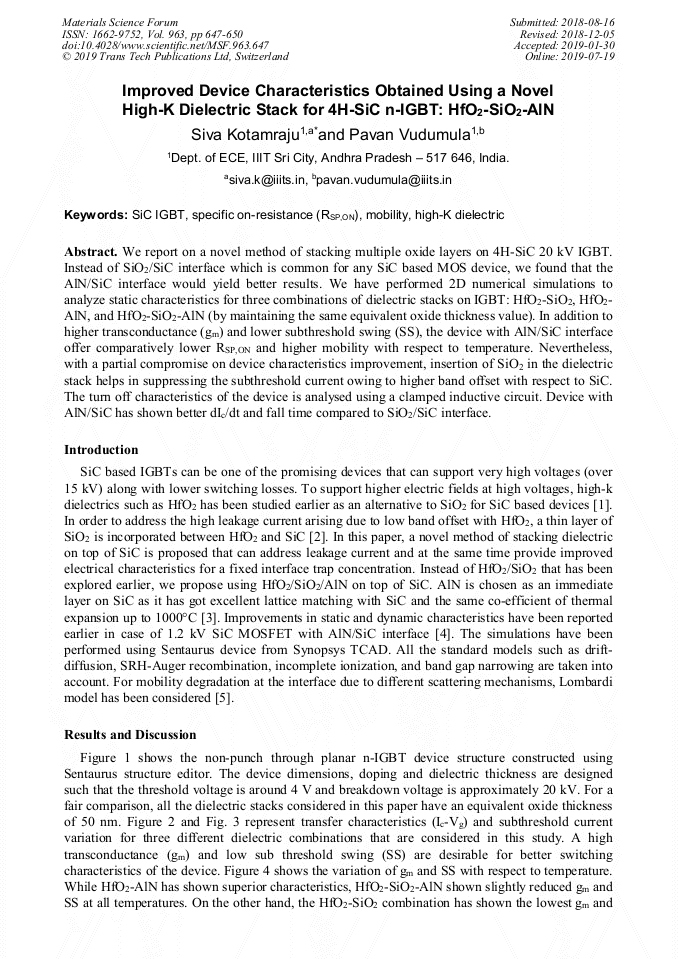

Article Preview

Abstract:

We report on a novel method of stacking multiple oxide layers on 4H-SiC 20 kV IGBT. Instead of SiO2/SiC interface which is common for any SiC based MOS device, we found that the AlN/SiC interface would yield better results. We have performed 2D numerical simulations to analyze static characteristics for three combinations of dielectric stacks on IGBT: HfO2-SiO2, HfO2-AlN, and HfO2-SiO2-AlN (by maintaining the same equivalent oxide thickness value). In addition to higher transconductance (gm) and lower subthreshold swing (SS), the device with AlN/SiC interface offer comparatively lower RSP,ON and higher mobility with respect to temperature. Nevertheless, with a partial compromise on device characteristics improvement, insertion of SiO2 in the dielectric stack helps in suppressing the subthreshold current owing to higher band offset with respect to SiC. The turn off characteristics of the device is analysed using a clamped inductive circuit. Device with AlN/SiC has shown better dIc/dt and fall time compared to SiO2/SiC interface.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

647-650

Citation:

Online since:

July 2019

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2019 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Taube, A., S. Gierałtowska, T. Gutt, T. Małachowski, I. Pasternak, T. Wojciechowski, W. Rzodkiewicz, M. Sawicki, and A. Piotrowska. Electronic properties of thin HfO2 films fabricated by atomic layer deposition on 4H-SiC., Acta Physica Polonica A 119, no. 5 (2011): 696-698.

DOI: 10.12693/aphyspola.119.696

Google Scholar

[2] Cheong, Kuan Yew, Jeong Hyun Moon, Tae Joo Park, Jeong Hwan Kim, Cheol Seong Hwang, Hyeong Joon Kim, Wook Bahng, and Nam-Kyun Kim. Improved Electronic Performance of HfO2/SiO2 Stacking Gate Dielectric on 4H-SiC., IEEE Transactions on Electron Devices 54, no. 12 (2007): 3409-3413.

DOI: 10.1109/ted.2007.908545

Google Scholar

[3] Ponce, F. A., C. G. Van de Walle, and J. E. Northrup. Atomic arrangement at the AlN/SiC interface., Physical Review B 53, no. 11 (1996): 7473.

DOI: 10.1103/physrevb.53.7473

Google Scholar

[4] Pavan Vudumula, and Siva Kotamraju. Improved device characteristics obtained in 4H-SiC MOSFET using high-k dielectric stack with ultrathin SiO2-AlN as interfacial layers., Materials Science in Semiconductor Processing 80 (2018): 24-30.

DOI: 10.1016/j.mssp.2018.02.012

Google Scholar

[5] Pérez-Tomás, Amador, P. Brosselard, P. Godignon, J. Millán, N. Mestres, M. R. Jennings, James A. Covington, and Philip A. Mawby. Field-effect mobility temperature modeling of 4H-SiC metal-oxide-semiconductor transistors., Journal of Applied Physics 100, no. 11 (2006): 114508.

DOI: 10.1063/1.2395597

Google Scholar

[6] Usman, Muhammad, and Muhammad Nawaz. Device design assessment of 4H–SiC n-IGBT: A simulation study., Solid State Electronics 92 (2014): 5-11.

DOI: 10.1016/j.sse.2013.10.019

Google Scholar

[7] Miyake, M., Ueno, F., Navarro, D., & Miura-Mattausch, M, Compact modeling of the punch-through effect in SiC-IGBT for 6.6 kV switching operation with improved performance. Materials Science Forum, 740 (2013) 1103-1106.

DOI: 10.4028/www.scientific.net/msf.740-742.1103

Google Scholar
