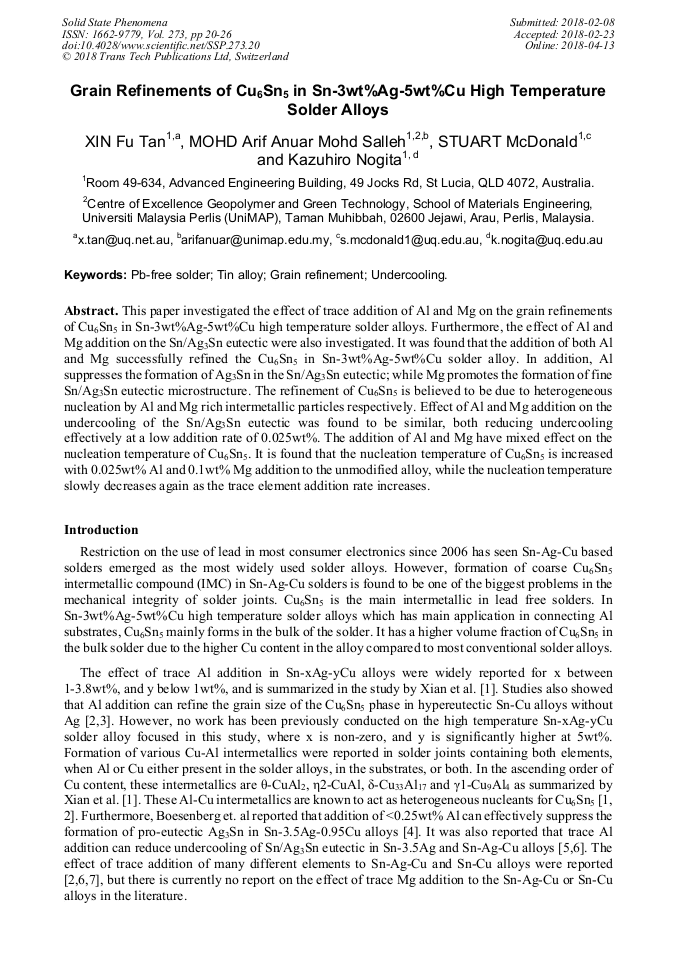

Grain Refinements of Cu₆Sn₅ in Sn-3wt%Ag-5wt%Cu High Temperature Solder Alloys

Abstract:

This paper investigated the effect of trace addition of Al and Mg on the grain refinements of Cu₆Sn₅ in Sn-3wt%Ag-5wt%Cu high temperature solder alloys. Furthermore, the effect of Al and Mg addition on the Sn/Ag₃Sn eutectic were also investigated. It was found that the addition of both Al and Mg successfully refined the Cu₆Sn₅ in Sn-3wt%Ag-5wt%Cu solder alloy. In addition, Al suppresses the formation of Ag₃Sn in the Sn/Ag₃Sn eutectic; while Mg promotes the formation of fine Sn/Ag₃Sn eutectic microstructure. The refinement of Cu₆Sn₅ is believed to be due to heterogeneous nucleation by Al and Mg rich intermetallic particles respectively. Effect of Al and Mg addition on the undercooling of the Sn/Ag₃Sn eutectic was found to be similar, both reducing undercooling effectively at a low addition rate of 0.025wt%. The addition of Al and Mg have mixed effect on the nucleation temperature of Cu₆Sn₅. It is found that the nucleation temperature of Cu₆Sn₅ is increased with 0.025wt% Al and 0.1wt% Mg addition to the unmodified alloy, while the nucleation temperature slowly decreases again as the trace element addition rate increases.

• Periodical: Solid State Phenomena (Volume 273)
• Pages: 20-26
• DOI: https://doi.org/10.4028/www.scientific.net/SSP.273.20
• Online since: April 2018
• Authors: Xin Fu Tan, Mohd Arif Anuar Mohd Salleh, Stuart D. McDonald, Kazuhiro Nogita
• Keywords: Grain Refinement, Pb-Free Solder, Tin Alloy, Undercooling

References

[1] J.W. Xian, S.A. Belyakov, T.B. Britton and C.M. Gourlay: Journal of Alloys and Compounds Vol. 619 (2015), p.345.

[2] S. McDonald, K. Nogita, J. Read, T. Ventura and T. Nishimura: Journal of Electronic Materials Vol. 42 (2012), p.256.

[3] F. Somidin, M.A.A. Mohd Salleh and K.R. Ahmad: Advanced Materials Research Vol. 620 (2013), p.105.

[4] A.J. Boesenberg, I.E. Anderson and J.L. Harringa: Journal of Electronic Materials Vol 41(7) (2012), p.1868.

[5] K.R. Kotidia, O. Mokhtari, M. Bottrill, M.P. Clode, M.A. Green and S.H. Mannan: Journal of Electronic Materials Vol. 39(12) (2010), p.2720.

[6] I.E. Anderson, J.W. Walleser, J.L. Harringa, F. Laabs and A. Kracher: Journal of Electronic Materials Vol. 38(12) (2009), p.2770.

[7] I.E. Anderson, J. Walleser and J.L. Harringa: JOM Vol. 59(7) (2007), p.38.

[8] A.K. Dahle, K. Nogita, J.W. Zindel, S.D. McDonald and L.M. Hogan: Metallurgical and Materials Transaction A Vol. 32A (2001), p.949.

[9] S. Nafisi and R. Ghomashchi: Semi-Solid Processing of Aluminium Alloys (Springer International Publishing, Switzerland 2016).

[10] W.B de Castro, M. de Lucena Maia, C.S. Kiminami and C. Bolfarini: Materials Resarch Vol. 4(2) (2001), p.83.

[11] K. Sweatman, S.D. McDonald, M. Whitewick, T. Nishimura and K. Nogita: Proc. IPC APEX EXPO 2013, S11, San Diego, USA.
