Growth of 8-Inch SiC Single Crystals with Low Basal Plane Dislocation Density

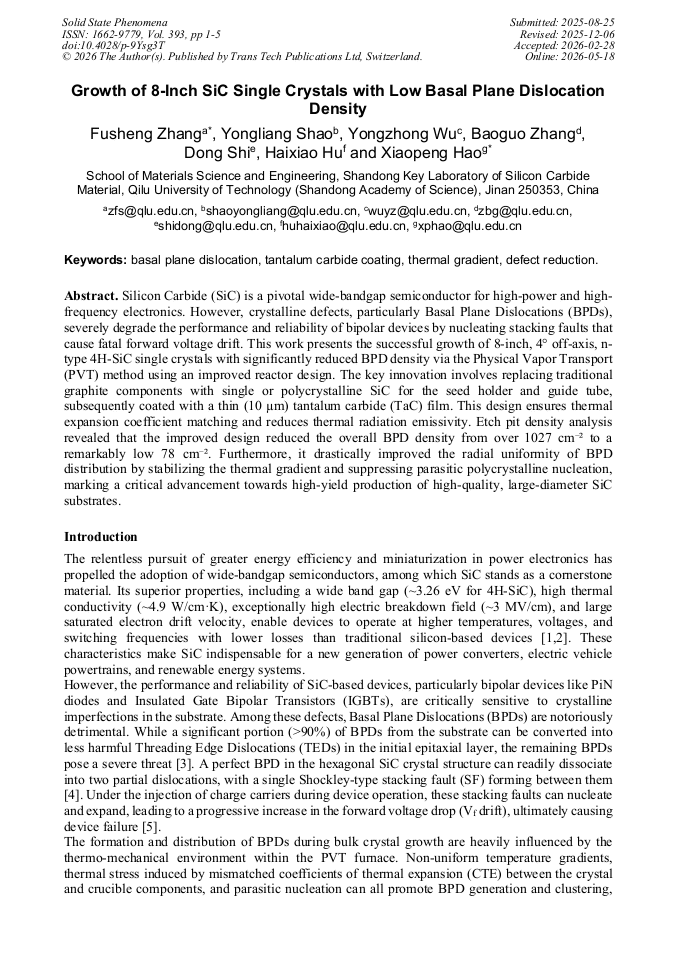

Article Preview
View Pdf By email

Abstract:

Silicon Carbide (SiC) is a pivotal wide-bandgap semiconductor for high-power and high-frequency electronics. However, crystalline defects, particularly Basal Plane Dislocations (BPDs), severely degrade the performance and reliability of bipolar devices by nucleating stacking faults that cause fatal forward voltage drift. This work presents the successful growth of 8-inch, 4° off-axis, n-type 4H-SiC single crystals with significantly reduced BPD density via the Physical Vapor Transport (PVT) method using an improved reactor design. The key innovation involves replacing traditional graphite components with single or polycrystalline SiC for the seed holder and guide tube, subsequently coated with a thin (10 µm) tantalum carbide (TaC) film. This design ensures thermal expansion coefficient matching and reduces thermal radiation emissivity. Etch pit density analysis revealed that the improved design reduced the overall BPD density from over 1027 cm⁻² to a remarkably low 78 cm⁻². Furthermore, it drastically improved the radial uniformity of BPD distribution by stabilizing the thermal gradient and suppressing parasitic polycrystalline nucleation, marking a critical advancement towards high-yield production of high-quality, large-diameter SiC substrates.

You have full access to the following eBook
Bulk and Epitaxial Growth of SiC Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 393)

Pages:

1-5

DOI:

https://doi.org/10.4028/p-9Ysg3T

Citation:

Cite this paper

Online since:

May 2026

Authors:

Fu Sheng Zhang*, Yong Liang Shao, Yong Zhong Wu, Bao Guo Zhang, Dong Shi, Hai Xiao Hu, Xiao Peng Hao

Keywords:

Basal Plane Dislocation, Defect Reduction, Tantalum Carbide Coating, Thermal Gradient

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
