300 mm 4H-SiC Crystal and Substrate Development

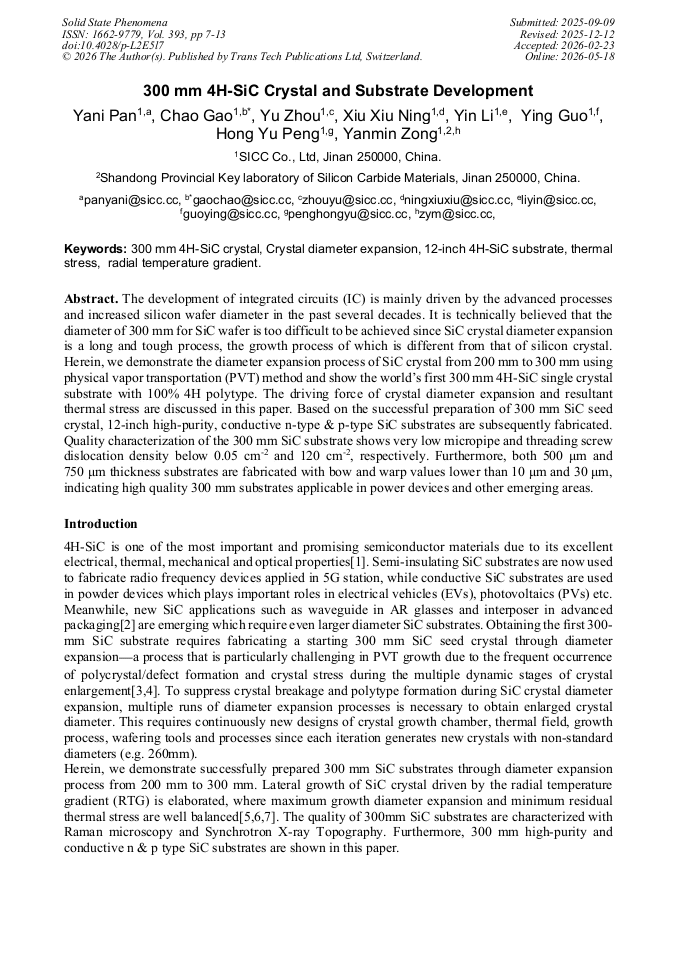

Article Preview

Abstract:

The development of integrated circuits (IC) is mainly driven by the advanced processes and increased silicon wafer diameter in the past several decades. It is technically believed that the diameter of 300 mm for SiC wafer is too difficult to be achieved since SiC crystal diameter expansion is a long and tough process, the growth process of which is different from that of silicon crystal. Herein, we demonstrate the diameter expansion process of SiC crystal from 200 mm to 300 mm using physical vapor transportation (PVT) method and show the world’s first 300 mm 4H-SiC single crystal substrate with 100% 4H polytype. The driving force of crystal diameter expansion and resultant thermal stress are discussed in this paper. Based on the successful preparation of 300 mm SiC seed crystal, 12-inch high-purity, conductive n-type & p-type SiC substrates are subsequently fabricated. Quality characterization of the 300 mm SiC substrate shows very low micropipe and threading screw dislocation density below 0.05 cm-2 and 120 cm-2, respectively. Furthermore, both 500 μm and 750 μm thickness substrates are fabricated with bow and warp values lower than 10 μm and 30 μm, indicating high quality 300 mm substrates applicable in power devices and other emerging areas.

You have full access to the following eBook

Info:

* - Corresponding Author

[1] Wellmann, P. J., Arzig, M., Ihle, J., Kollmuss, M., Steiner, J., & Mauceri, M., et al. "Review of Sublimation Growth of SiC Bulk Crystals," Materials Science Forum. (2022).

DOI: 10.4028/p-05sz31

Google Scholar

[2] Chen, Boqu, et al. "Ultra-Thin, Ultra-Light, Rainbow-Free AR Glasses Based on Single-Layer Full-Color SiC Diffrcative Waveguide," (2024).

Google Scholar

[3] Hahn, Peter O. "The 300 mm silicon wafer-a cost and technology challenge," Microelectronic Engineering. 56(1/2), 3-13 (2001).

DOI: 10.1016/s0167-9317(00)00499-8

Google Scholar

[4] Yang, X.L., Pan, Y.N., Gao, C., Liang, Q.R., Wang, L.P., et al. "Development of High Quality 8 inch 4H-SiC Substrates," Solid State Phenomena. 344, 41-46 (2023).

DOI: 10.4028/p-x44871

Google Scholar

[5] Miyazaki, K, et al. "Effect of crucible thermal conductivity on dislocation distribution in crystals in a silicon carbide physical vapor transport furnace," Journal of Crystal Growth. 603, (2023).

DOI: 10.1016/j.jcrysgro.2022.126981

Google Scholar

[6] Choi, Jung Woo, et al. "Modified Hot-Zone Design for Large Diameter 4H-SiC Single Crystal Growth," Materials Science Forum. 963, 18-21 (2019).

DOI: 10.4028/www.scientific.net/msf.963.18

Google Scholar

[7] Steiner, Johannes, and P. J. Wellmann. "Impact of Mechanical Stress and Nitrogen Doping on the Defect Distribution in the Initial Stage of the 4H-SiC PVT Growth Process," Materials (Basel, Switzerland) 15, 5 (2022).

DOI: 10.3390/ma15051897

Google Scholar

[8] Ha, Minh Tan, and S. M. Jeong. "A review of the simulation studies on the bulk growth of silicon carbide single crystals." Journal of the Korean Ceramic Society, 2, 59 (2022).

DOI: 10.1007/s43207-022-00188-y

Google Scholar

[9] Hu, S., Liu, Y., Cheng, Q., Chen, Z., Tong, X., & Raghothamachar, B., et al. "Investigation of defect formation at the early stage of PVT-grown 4H-SiC crystals," Journal of Crystal Growth. 628 (2024).

DOI: 10.1016/j.jcrysgro.2023.127542

Google Scholar

[10] Xu B., Han X.F., Xu S.C., et al., "Optimization of the Thermal Field of 8-Inch SiC Crystal Growth by PVT Method with "3 Separation Heater Method," SSRN Electronic Journal. (2023).

DOI: 10.2139/ssrn.4395634

Google Scholar

[11] Yang N., Song B., Wang W., et al. "Control of the temperature field by double induction coils for growth of large-sized SiC single crystals via the physical vapor transport technique," (2022)

DOI: 10.1039/d2ce00113f

Google Scholar

[12] Chen P.C., Miao W.C., Ahmed T., et al. "Defect Inspection Techniques in SiC," Nanoscale Research Letters. 17, 30 (2022).

Google Scholar
