Paper Titles
Preface
Growth of 8-Inch SiC Single Crystals with Low Basal Plane Dislocation Density
p.1
300 mm 4H-SiC Crystal and Substrate Development
p.7
Epitaxial Growth and Characterization of 4H-SiC Layer on C-Face and Si-Face Substrates
p.15
Development of High Concentration Uniformity Epitaxial Growth on 200 mm 4H-SiC Wafers
p.21
Ultra-Pure SiC Source Material for Optical SiC Crystal Growth
p.27
Ultra-Thick (~200µm) Epitaxy on 150mm 4H-SiC Wafers Using Single Wafer CVD Reactor
p.35
Solution Growth Technique of Silicon Carbide with In Situ Observation
p.41
Close Space PVT Growth of N- and P-Type Quasi-Bulk SiC in a Classic PVT Setup and a Newly Developed TableTopCSTM Growth Machine
p.47

Development of High Concentration Uniformity Epitaxial Growth on 200 mm 4H-SiC Wafers

Article Preview
View Pdf By email

Abstract:

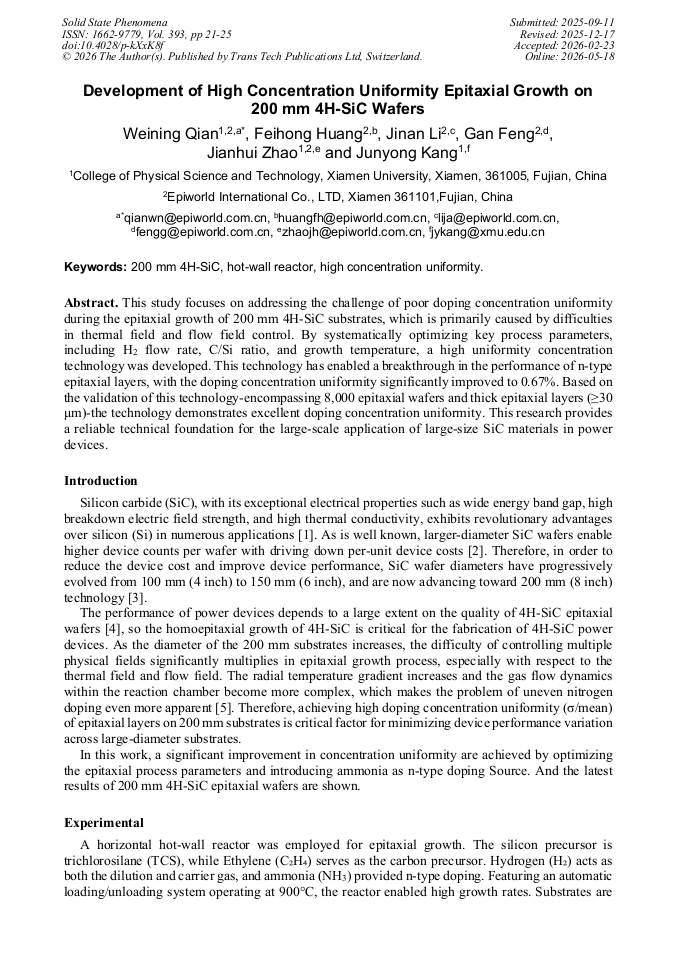

This study focuses on addressing the challenge of poor doping concentration uniformity during the epitaxial growth of 200 mm 4H-SiC substrates, which is primarily caused by difficulties in thermal field and flow field control. By systematically optimizing key process parameters, including H2 flow rate, C/Si ratio, and growth temperature, a high uniformity concentration technology was developed. This technology has enabled a breakthrough in the performance of n-type epitaxial layers, with the doping concentration uniformity significantly improved to 0.67%. Based on the validation of this technology—encompassing 8,000 epitaxial wafers and thick epitaxial layers (≥30 μm)—the technology demonstrates excellent doping concentration uniformity. This research provides a reliable technical foundation for the large-scale application of large-size SiC materials in power devices.

You have full access to the following eBook
Bulk and Epitaxial Growth of SiC Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 393)

Pages:

21-25

DOI:

https://doi.org/10.4028/p-kXxK8f

Citation:

Cite this paper

Online since:

May 2026

Authors:

Wei Ning Qian*, Fei Hong Huang, Jin An Li, Gan Feng, Jian Hui Zhao, Jun Yong Kang

Keywords:

200 mm 4H-SiC, High Concentration Uniformity, Hot-Wall Reactor

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] J. B. Casady, R. W. Johnson, Status of silicon carbide (SiC) as a wide-bandgap semiconductor for high-temperature applications A review, Solid-State Electron., 39 (1996) 1409-1422.

DOI: 10.1016/0038-1101(96)00045-7

Google Scholar

[2] M. Musolino, E. Carria, D. Crippa, et al, Development of n-type epitaxial growth on 200mm 4H-SiC wafers for the next generation of power devices, Microelectron. Eng., 274 (2023) 111976.

DOI: 10.1016/j.mee.2023.111976

Google Scholar

[3] M. Musolino, E. Carria, D. Crippa, et al, Paving the way toward the world's first 200mm SiC pilot line, Mat. Sci. Semicon. Proc., 2021, 135 (2021) 106088.

DOI: 10.1016/j.mssp.2021.106088

Google Scholar

[4] J. Li, C. Meng, L. Yu, et al, Effect of various defects on 4H-SiC Schottky diode performance and its relation to epitaxial growth conditions, Micromachines-basel, 11 (2020) 609.

DOI: 10.3390/mi11060609

Google Scholar

[5] G. Hu, G. Zhong, X. Xiong, et al, Improvement of the resistivity uniformity of 8-inch 4H–SiC wafers by optimizing the thermal field, Vacuum, 222 (2024) 112961.

DOI: 10.1016/j.vacuum.2024.112961

Google Scholar

[6] J. Zhang, J. Mazzola, C. Hoff, et al, High growth rate (up to 20 µm/h) SiC epitaxy in a horizontal hot-wall reactor, Mater. Sci. Forum, 77 (2005) 483-485.

DOI: 10.4028/www.scientific.net/msf.483-485.77

Google Scholar

[7] X. Gong, P. Li, T. Xie,et al, High uniform N-type doping of 4H-SiC homoepitaxy based on a horizontal hot-wall reactor, J. Cryst. Growth, 648 (2024) 127877.

DOI: 10.1016/j.jcrysgro.2024.127877

Google Scholar

[8] D.J. Larkin, P.G. Neudeck, J.A. Powell, L.G. Matus, Appl. Phys. Lett., 65 (1994) 1659-1661.

Google Scholar

[9] G. Ferro, D. Chaussende, Revisiting the site-competition doping of 4H-SiC: cases of N and Al, Mater. Sci. Forum, 1004 (2020) 96-101.

DOI: 10.4028/www.scientific.net/msf.1004.96

Google Scholar
