Development and Evaluation of a 1.2kV SiC MOSFET-Based PTC Controller for Energy-Efficient xEV Heating Applications

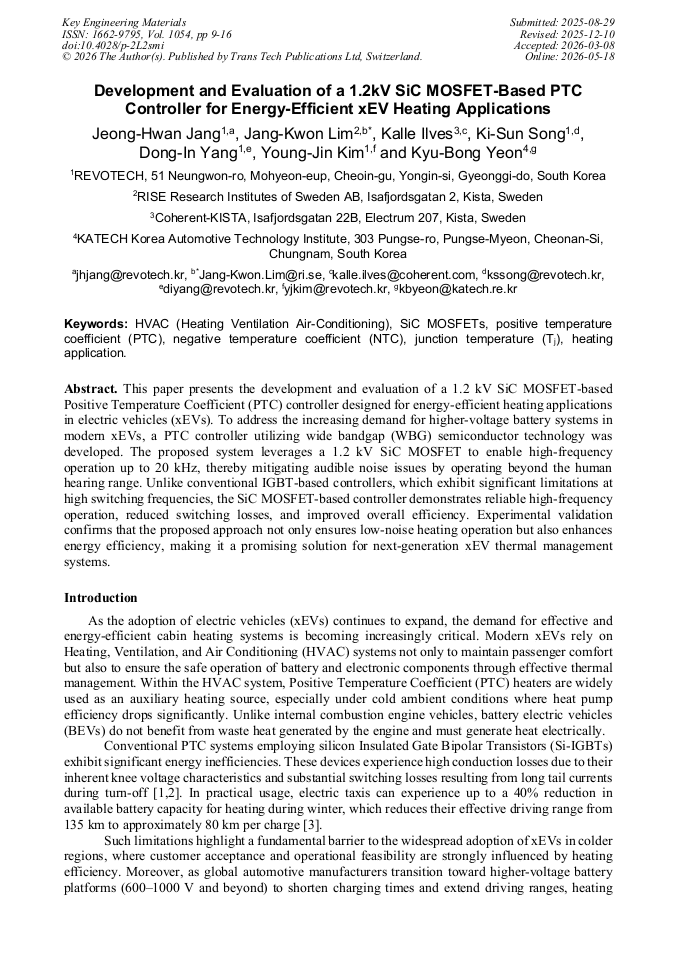

Article Preview
View Pdf By email

Abstract:

This paper presents the development and evaluation of a 1.2 kV SiC MOSFET-based Positive Temperature Coefficient (PTC) controller designed for energy-efficient heating applications in electric vehicles (xEVs). To address the increasing demand for higher-voltage battery systems in modern xEVs, a PTC controller utilizing wide bandgap (WBG) semiconductor technology was developed. The proposed system leverages a 1.2 kV SiC MOSFET to enable high-frequency operation up to 20 kHz, thereby mitigating audible noise issues by operating beyond the human hearing range. Unlike conventional IGBT-based controllers, which exhibit significant limitations at high switching frequencies, the SiC MOSFET-based controller demonstrates reliable high-frequency operation, reduced switching losses, and improved overall efficiency. Experimental validation confirms that the proposed approach not only ensures low-noise heating operation but also enhances energy efficiency, making it a promising solution for next-generation xEV thermal management systems.

You have full access to the following eBook
Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

9-16

DOI:

https://doi.org/10.4028/p-2L2smi

Citation:

Cite this paper

Online since:

May 2026

Authors:

Jeong Hwan Jang, Jang Kwon Lim*, Kalle Ilves, Ki Sun Song, Dong In Yang, Young Jin Kim, Kyu Bong Yeon

Keywords:

Heating Application, HVAC (Heating Ventilation Air-Conditioning), Junction Temperature (Tj), Negative Temperature Coefficient (NTC), Positive Temperature Coefficient (PTC), SiC MOSFET

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Albanna A., et al., "Performance comparison and device analysis Between Si IGBT and SiC MOSFET." presented in 2016 IEEE Transportation Electrification Conference and Expo (ITEC), IEEE, 2016, p.1–6.

DOI: 10.1109/ITEC.2016.7520242

Google Scholar

[2] Ranstad P., et al., "An experimental evaluation of SiC switches in soft-switching converters," IEEE Transactions on Power Electronics, vol. 29, no. 5, p.2527–2538, May 2014.

DOI: 10.1109/tpel.2013.2265380

Google Scholar

[3] Hao X., et al., "Seasonal effects on electric vehicle energy consumption and driving range: A case study on personal, taxi, and ridesharing vehicles," Journal of Cleaner Production, vol. 249, article. 119403, 2020.

DOI: 10.1016/j.jclepro.2019.119403

Google Scholar

[4] Sadik D.P., et al., "Comparison of thermal stress during short-circuit in different types of 1.2-kV SiC transistors based on experiments and simulations," IEEE Transactions on Industrial Electronics, vol. 68, no.3, 2608-2616, Mar. 2021.

DOI: 10.1109/tie.2020.2972442

Google Scholar

[5] Lim, J.-K., et al., "Comparison of total losses of 1.2 kV SiC JFET and BJT in DC-DC converter including gate driver," Materials Science Forum, vols. 679-680, pp.649-652, Apr. 2011.

DOI: 10.4028/www.scientific.net/msf.679-680.649

Google Scholar

[6] Buffolo M., et al., "Review and Outlook on GaN and SiC Power Devices: Industrial State-of-the-Art, Applications, and Perspectives," IEEE Transactions on Electron Devices, vol. 71, no. 3, 1344-1355, Mar. 2024.

DOI: 10.1109/ted.2023.3346369

Google Scholar
