Reliability Challenges of SiC MOSFETs under Continuous Dual-Bias Stress in EV Applications

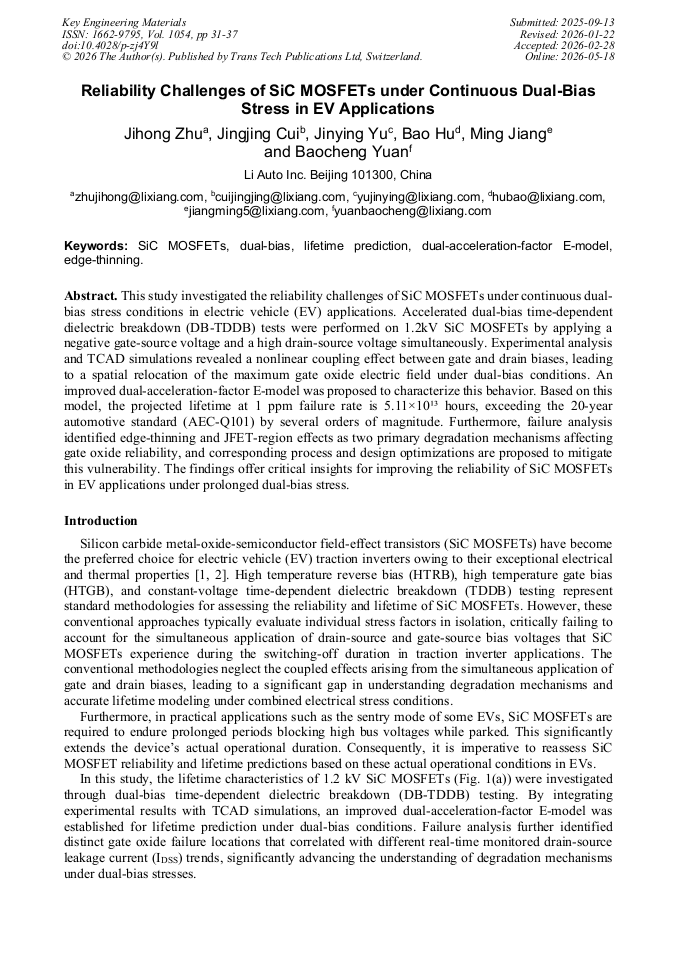

Article Preview
View Pdf By email

Abstract:

This study investigated the reliability challenges of SiC MOSFETs under continuous dual-bias stress conditions in electric vehicle (EV) applications. Accelerated dual-bias time-dependent dielectric breakdown (DB-TDDB) tests were performed on 1.2kV SiC MOSFETs by applying a negative gate-source voltage and a high drain-source voltage simultaneously. Experimental analysis and TCAD simulations revealed a nonlinear coupling effect between gate and drain biases, leading to a spatial relocation of the maximum gate oxide electric field under dual-bias conditions. An improved dual-acceleration-factor E-model was proposed to characterize this behavior. Based on this model, the projected lifetime at 1 ppm failure rate is 5.11×10¹³ hours, exceeding the 20-year automotive standard (AEC-Q101) by several orders of magnitude. Furthermore, failure analysis identified edge-thinning and JFET-region effects as two primary degradation mechanisms affecting gate oxide reliability, and corresponding process and design optimizations are proposed to mitigate this vulnerability. The findings offer critical insights for improving the reliability of SiC MOSFETs in EV applications under prolonged dual-bias stress.

You have full access to the following eBook
Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

31-37

DOI:

https://doi.org/10.4028/p-zj4Y9l

Citation:

Cite this paper

Online since:

May 2026

Authors:

Ji Hong Zhu*, Jing Jing Cui, Jin Ying Yu, Bao Hu, Ming Jiang, Bao Cheng Yuan

Keywords:

Dual-Acceleration-Factor E-Model, Dual-Bias, Edge-Thinning, Lifetime Prediction, SiC MOSFET

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] C.C. Wu, U.S. Rout, Y.L. Wang, Y.L. Lin and J.S. Hu, A comparative analysis of SiC MOSFET performance in a traction inverter, IEEE Asia Pacific Conference on Circuits and Systems. (2024) 377-381.

DOI: 10.1109/apccas62602.2024.10808742

Google Scholar

[2] B. Shi, A. I. Ramons, Y. Liu, H. Wang Y. Li, S. Pischinger and J. Ander, A review of silicon carbide MOSFETs in electrified vehicles: Application, challenges, and future development, IET Power Electronics.16 (2023) 2103-2120.

DOI: 10.1049/pel2.12524

Google Scholar

[3] G. Rescher, G. Pobegen, T. Aichinger and T. Grasser, Preconditioned BTI on 4H-SiC: Proposal for a nearly delay time-independent measurement technique, IEEE Trans on Electron Devices. 65 (2018) 1419-1425.

DOI: 10.1109/ted.2018.2803283

Google Scholar

[4] W. Jouha, M. Masmoudi, A. E. Oualkadi , E. Joubert and P. Dherbécourt, Physical study of SiC power MOSFETs towards HTRB stress based on C-V characteristics, IEEE Transactions on Device and Materials Reliability. 20 (2020) 505-511.

DOI: 10.1109/tdmr.2020.2999029

Google Scholar

[5] S. Zhu, T. Liu, L. Shi, M. Jin, H.L. R. Maddi, M. H. White and A. K. Agarwal, Comparison of gate oxide lifetime predictions with charge-to-breakdown approach and constant-voltage TDDB on SiC power MOSFET, IEEE Workshop on Wide Bandgap Power Devices and Applications. (2021) 1-4.

DOI: 10.1109/wipda49284.2021.9645100

Google Scholar

[6] J. Yu, J. Cui, B. Hu, J. Deng and B. Yuan, Analysis on BVDSS outlier chips and screening technology for 1.2 kV automotive SiC MOSFETs, International Symposium on Power Semiconductor Devices & ICs. (2025) 501- 504.

DOI: 10.23919/ispsd62843.2025.11117452

Google Scholar

[7] K. Matocha, Member IEEE, G. Dunne, S. Soloviev and R. Beaupre, Time-dependent dielectric breakdown of 4H-SiC MOS capacitors and DMOSFETs, IEEE Transactions on Electron Devices. 55 (2008) 1830-1834.

DOI: 10.1109/ted.2008.926595

Google Scholar

[8] L.W.Y. Ying, D. K. Pal, R. Tan, N. H. Seng, M. Ong, T. G. Hong and W. J. Sang, Failure mechanism and improvement on gate oxide failure at the edge of LOCOS, IEEE International Conference on Semiconductor Electronics. (2012) 588-591.

DOI: 10.1109/smelec.2012.6417214

Google Scholar
