Impact of Packaging on Discrepancy of Datasheet Static Measurements of SiC Power MOSFETs in Bare Dies and TO-247 Packaged Form-Factors

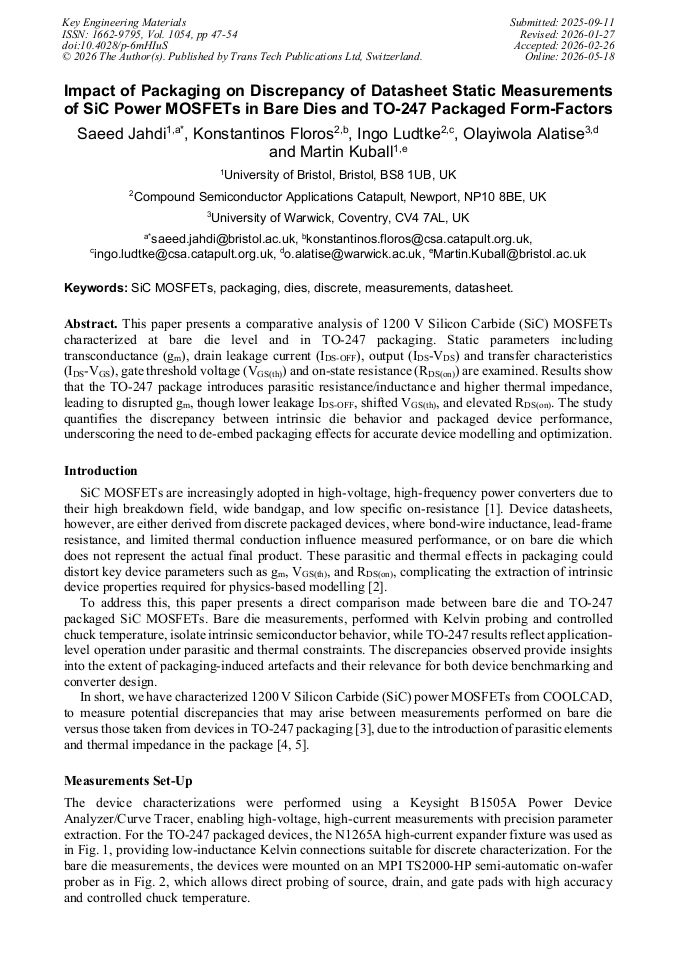

Article Preview
View Pdf By email

Abstract:

This paper presents a comparative analysis of 1200 V Silicon Carbide (SiC) MOSFETs characterized at bare die level and in TO-247 packaging. Static parameters including transconductance (gm), drain leakage current (IDS-OFF), output (IDS-VDS) and transfer characteristics (IDS-VGS), gate threshold voltage (VGS(th)) and on-state resistance (RDS(on)) are examined. Results show that the TO-247 package introduces parasitic resistance/inductance and higher thermal impedance, leading to disrupted gm, though lower leakage IDS-OFF, shifted VGS(th), and elevated RDS(on). The study quantifies the discrepancy between intrinsic die behavior and packaged device performance, underscoring the need to de-embed packaging effects for accurate device modelling and optimization.

You have full access to the following eBook
Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

47-54

DOI:

https://doi.org/10.4028/p-6mHIuS

Citation:

Cite this paper

Online since:

May 2026

Authors:

Saeed Jahdi*, Konstantinos Floros, Ingo Ludtke, Olayiwola Alatise, Martin Kuball

Keywords:

Datasheet, Dies, Discrete, Measurements, Packaging, SiC MOSFET

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Z. Zhu, R. Yao, H. Li, J. Li and Z. Chen, "Comparative Analysis on Switching Characteristics of Discrete SiC MOSFET in Press-pack Package and Wire-bonded Package", IEEE Int. Power Elec. Conf. & Expo. (PEAC), Guangzhou, China, 2022, pp.66-71.

DOI: 10.1109/PEAC56338.2022.9959610

Google Scholar

[2] J. O. Gonzalez, R. Wu, S. Jahdi and O. Alatise, "Performance and Reliability Review of 650 V and 900 V Silicon and SiC Devices: MOSFETs, Cascode JFETs and IGBTs," in IEEE Transactions on Industrial Electronics, vol. 67, no. 9, pp.7375-7385, Sept. 2020.

DOI: 10.1109/TIE.2019.2945299

Google Scholar

[3] A. Lemmon, S. Banerjee, K. Matocha and L. Gant, "Analysis of Packaging Impedance on Performance of SiC MOSFETs," PCIM Europe 2016, Nuremberg, Germany, 2016, pp.1-8.

Google Scholar

[4] A. Anthon, J. C. Hernandez, Z. Zhang and M. A. E. Andersen, "Switching investigations on a SiC MOSFET in a TO-247 package," IECON 2014 - 40th Annual Conference of the IEEE Industrial Electronics Society, Dallas, TX, USA, 2014, pp.1854-1860.

DOI: 10.1109/IECON.2014.7048754

Google Scholar

[5] N. Phankong, T. Yanagi and T. Hikihara, "Evaluation of inherent elements in a SiC power MOSFET by its equivalent circuit," 14th Euro. Conf. on Power Electronics, UK, 2011, pp.1-8.

Google Scholar
