Enhanced Gate Oxide Reliability in Vertical SiC Power MOSFETs via Optimized Processing and Screening

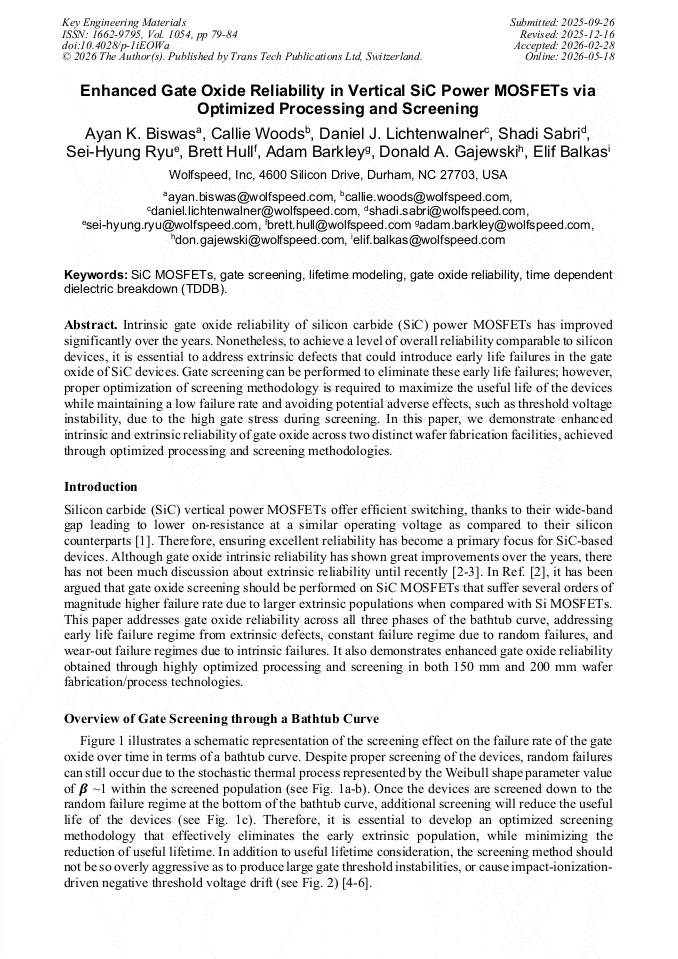

Article Preview
View Pdf By email

Abstract:

Intrinsic gate oxide reliability of silicon carbide (SiC) power MOSFETs has improved significantly over the years. Nonetheless, to achieve a level of overall reliability comparable to Si devices, it is essential to address extrinsic defects that could introduce early life failures in the gate oxide of SiC devices. Gate screening can be performed to eliminate these early life failures; however, proper optimization of screening methodology is required to maximize the useful life of the devices while maintaining a low failure rate and avoiding potential adverse effects, such as threshold voltage instability, due to the high gate stress during screening. In this paper, we demonstrate enhanced intrinsic and extrinsic reliability of gate oxide across two distinct wafer fabrication facilities, achieved through optimized processing and screening methodologies.

You have full access to the following eBook
Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

79-84

DOI:

https://doi.org/10.4028/p-1iEOWa

Citation:

Cite this paper

Online since:

May 2026

Authors:

Ayan K. Biswas*, Callie Woods, Daniel J. Lichtenwalner, Shadi Sabri, Sei Hyung Ryu, Brett Hull, Adam Barkley, Donald A. Gajewski, Elif Balkas

Keywords:

Gate Oxide Reliability, Gate Screening, Lifetime Modeling, SiC MOSFET, Time Dependent Dielectric Breakdown (TDDB)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] J. W. Palmour et al., IEEE Int. Symp. on Power Semi. Dev. & IC's, 2014, 79-82.

Google Scholar

[2] T. Aichinger and M. Schmidt, IEEE International Reliability Physics Symposium (IRPS), 2020, pp.1-6.

Google Scholar

[3] P. Moens et al., IEEE International Reliability Physics Symposium (IRPS), 2024, pp.1-7.

Google Scholar

[4] A. Biswas et al., IEEE International Reliability Physics Symposium (IRPS), 2024, pp.1-5.

Google Scholar

[5] S. R. Stein, et al., IEEE International Reliability Physics Symposium (IRPS), 2024, pp.1-5.

Google Scholar

[6] S. Das, et al., Solid State Phenomena., 2025, pp.49-53.

Google Scholar

[7] J. W. McPherson, Reliability Physics and Engineering, 3rd Ed., Springer Publishing, 2019.

Google Scholar
