Degradation Mechanisms of 1200 V 4H-SiC Planar Power MOSFET under Negative HTGB Stress

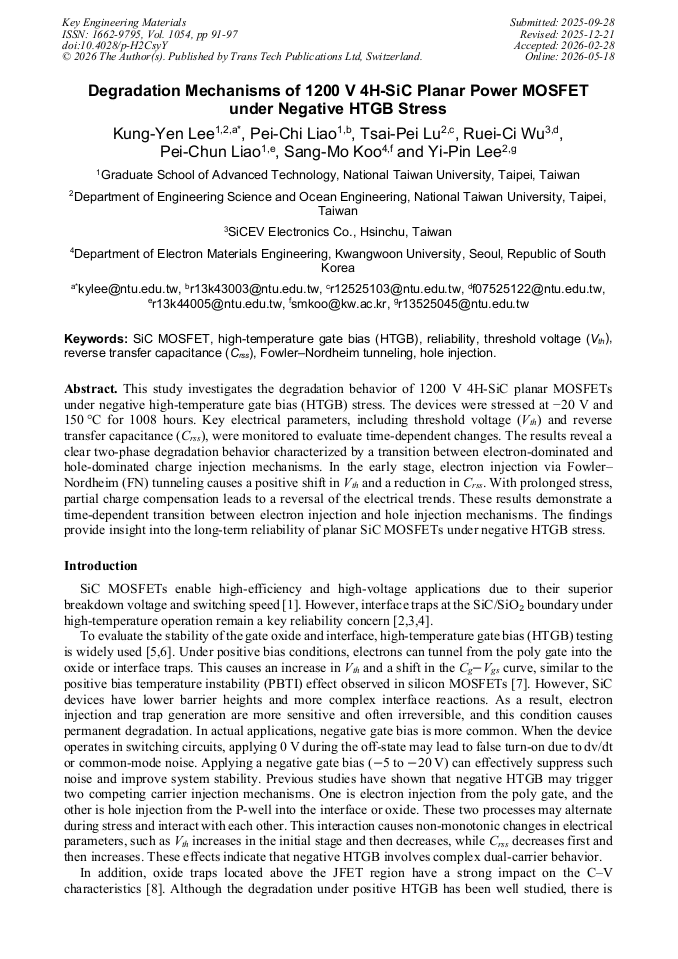

Article Preview
View Pdf By email

Abstract:

This study investigates the degradation behavior of 1200 V 4H-SiC planar MOSFETs under negative high-temperature gate bias (HTGB) stress. The devices were stressed at −20 V and 150 °C for 1008 hours. Key electrical parameters, including threshold voltage (Vth) and reverse transfer capacitance (Crss), were monitored to evaluate time-dependent changes. The results reveal a clear two-phase degradation behavior characterized by a transition between electron-dominated and hole-dominated charge injection mechanisms. In the early stage, electron injection via Fowler–Nordheim (FN) tunneling causes a positive shift in Vth and a reduction in Crss. With prolonged stress, partial charge compensation leads to a reversal of the electrical trends. These results demonstrate a time-dependent transition between electron injection and hole injection mechanisms. The findings provide insight into the long-term reliability of planar SiC MOSFETs under negative HTGB stress.

You have full access to the following eBook
Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

91-97

DOI:

https://doi.org/10.4028/p-H2CsyY

Citation:

Cite this paper

Online since:

May 2026

Authors:

Kung Yen Lee, Pei Chi Liao*, Tsai Pei Lu, Ruei Ci Wu, Pei Chun Liao, Sang Mo Koo, Yi Pin Lee

Keywords:

Fowler-Nordheim Tunneling, High-Temperature Gate Bias (HTGB), Hole Injection, Reliability, Reverse Transfer Capacitance (Crss), SiC MOSFET, Threshold Voltage (Vth)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Baliga, B. Jayant. Fundamentals of power semiconductor devices. Springer, 2018.

Google Scholar

[2] Afanasev, Valeri V., et al. "Intrinsic sic/sio2 interface states." physica status solidi (a) 162.1 (1997): 321-337.

DOI: 10.1002/1521-396x(199707)162:1<321::aid-pssa321>3.0.co;2-f

Google Scholar

[3] Xin, Jinlei, et al. "Threshold voltage monitoring method for SiC MOSFET based on body diode voltage under body effect." 2021 IEEE 4th International Electrical and Energy Conference (CIEEC). IEEE, 2021.

DOI: 10.1109/cieec50170.2021.9510634

Google Scholar

[4] Aichinger, Thomas, Gerald Rescher, and Gregor Pobegen. "Threshold voltage peculiarities and bias temperature instabilities of SiC MOSFETs." Microelectronics Reliability 80 (2018): 68-78.

DOI: 10.1016/j.microrel.2017.11.020

Google Scholar

[5] Zhong, Yongle, et al. "Review of HTRB and HTGB Reliability of SiC MOSFETs." 2024 7th International Conference on Energy, Electrical and Power Engineering (CEEPE). IEEE, 2024.

DOI: 10.1109/ceepe62022.2024.10586507

Google Scholar

[6] Zhao, Haoran, et al. "Study of Influence of HTGB and HTRB Tests on Parameters of 1200V SiC MOSFETs." 2024 3rd International Symposium on Semiconductor and Electronic Technology (ISSET). IEEE, 2024.

DOI: 10.1109/isset62871.2024.10779939

Google Scholar

[7] Shen, Yutong, et al. "Time-dependent degradation mechanism of 1.2 kV SiC MOSFET under long-term high-temperature gate bias stress." IEEE Transactions on Electron Devices 70.3 (2022): 1162-1167.

DOI: 10.1109/ted.2022.3213774

Google Scholar

[8] Wei, Jiaxing, et al. "Interfacial damage extraction method for SiC power MOSFETs based on CV characteristics." 2017 29th International Symposium on Power Semiconductor Devices and IC's (ISPSD). IEEE, 2017.

DOI: 10.23919/ispsd.2017.7988992

Google Scholar

[9] Kimoto, T., & Cooper, J. A. (2014). Fundamentals of silicon carbide technology: growth, characterization, devices and applications. John Wiley & Sons.

DOI: 10.1002/9781118313534

Google Scholar

[10] AEC-Q101 Rev. H, Stress Test Qualification for Automotive Grade Discrete Semiconductors, Automotive Electronics Council, 2020.

Google Scholar

[11] Cochrane, C. J., P. M. Lenahan, and A. J. Lelis. "An electrically detected magnetic resonance study of performance limiting defects in SiC metal oxide semiconductor field effect transistors." Journal of Applied Physics 109.1 (2011).

DOI: 10.1063/1.3530600

Google Scholar
