Resonance Damping Optimization in 1200V Power Modules with Planar SiC MOSFET Devices for 200 kW Output

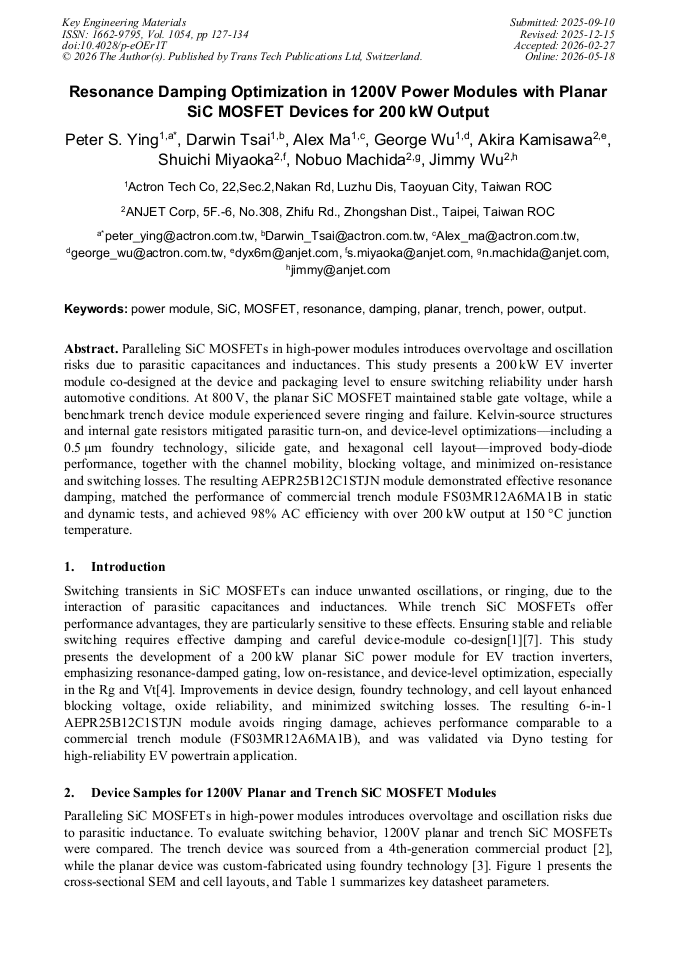

Article Preview
View Pdf By email

Abstract:

Paralleling SiC MOSFETs in high-power modules introduces overvoltage and oscillation risks due to parasitic capacitances and inductances. This study presents a 200 kW EV inverter module co-designed at the device and packaging level to ensure switching reliability under harsh automotive conditions. At 800 V, the planar SiC MOSFET maintained stable gate voltage, while a benchmark trench device module experienced severe ringing and failure. Kelvin-source structures and internal gate resistors mitigated parasitic turn-on, and device-level optimizations—including a 0.5 µm foundry technology, silicide gate, and hexagonal cell layout—improved body-diode performance, together with the channel mobility, blocking voltage, and minimized on-resistance and switching losses. The resulting AEPR25B12C1STJN module demonstrated effective resonance damping, matched the performance of commercial trench module FS03MR12A6MA1B in static and dynamic tests, and achieved 98% AC efficiency with over 200 kW output at 150 °C junction temperature.

You have full access to the following eBook
Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

127-134

DOI:

https://doi.org/10.4028/p-eOEr1T

Citation:

Cite this paper

Online since:

May 2026

Authors:

Peter S. Ying*, Darwin Tsai, Alex Ma, George Wu, Akira Kamisawa, Shuichi Miyaoka, Nobuo Machida, Jimmy Wu

Keywords:

Damping, MOSFET, Output, Planar, Power, Power Module, Resonance, Silicon Carbide (SiC), Trench

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
