Low-Inductance Packaging Design for SiC Power MOSFET Modules

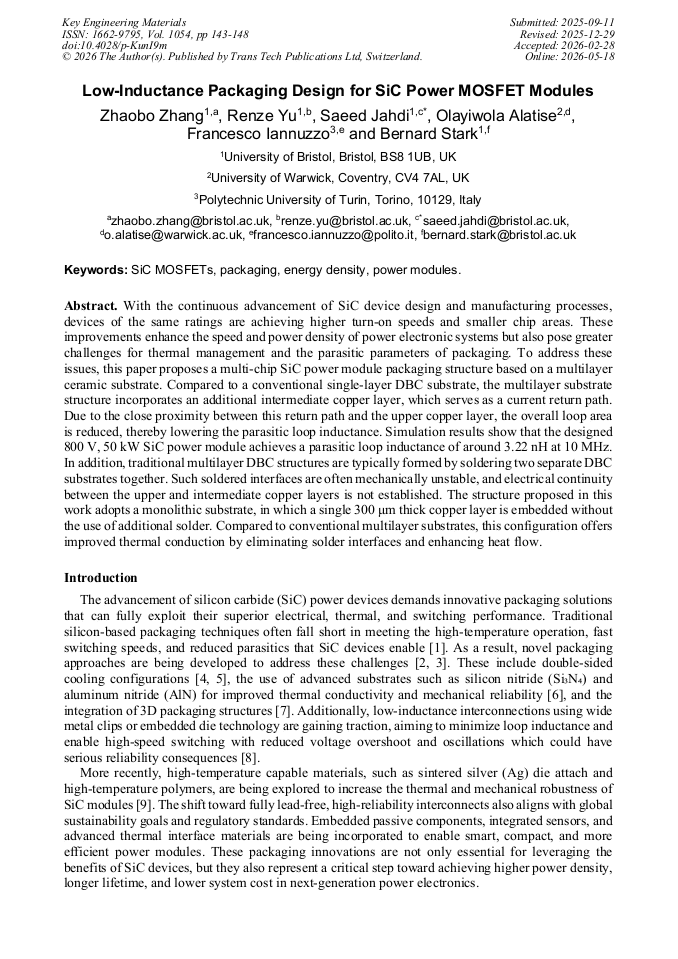

Article Preview
View Pdf By email

Abstract:

With the continuous advancement of SiC device design and manufacturing processes, devices of the same ratings are achieving higher turn-on speeds and smaller chip areas. These improvements enhance the speed and power density of power electronic systems but also pose greater challenges for thermal management and the parasitic parameters of packaging. To address these issues, this paper proposes a multi-chip SiC power module packaging structure based on a multilayer ceramic substrate. Compared to a conventional single-layer DBC substrate, the multilayer substrate structure incorporates an additional intermediate copper layer, which serves as a current return path. Due to the close proximity between this return path and the upper copper layer, the overall loop area is reduced, thereby lowering the parasitic loop inductance. Simulation results show that the designed 800 V, 50 kW SiC power module achieves a parasitic loop inductance of around 3.22 nH at 10 MHz. In addition, traditional multilayer DBC structures are typically formed by soldering two separate DBC substrates together. Such soldered interfaces are often mechanically unstable, and electrical continuity between the upper and intermediate copper layers is not established. The structure proposed in this work adopts a monolithic substrate, in which a single 300 μm thick copper layer is embedded without the use of additional solder. Compared to conventional multilayer substrates, this configuration offers improved thermal conduction by eliminating solder interfaces and enhancing heat flow.

You have full access to the following eBook
Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

143-148

DOI:

https://doi.org/10.4028/p-KunI9m

Citation:

Cite this paper

Online since:

May 2026

Authors:

Zhao Bo Zhang, Renze Yu, Saeed Jahdi*, Olayiwola Alatise, Francesco Iannuzzo, Bernard Stark

Keywords:

Energy Density, Packaging, Power Module, SiC MOSFET

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Y. Li, et al., "State-of-the-Art Medium- and High-Voltage Silicon Carbide Power Modules, Challenges and Mitigation Techniques: A Review," in IEEE Transactions on Components, Packaging and Manufacturing Technology, vol. 14, no. 12, pp.2177-2195, Dec. 2024.

DOI: 10.1109/TCPMT.2024.3391653

Google Scholar

[2] C. M. DiMarino, et al., "10-kV SiC MOSFET Power Module With Reduced Common-Mode Noise and Electric Field," in IEEE Transactions on Power Electronics, vol. 35, no. 6, pp.6050-6060, June 2020.

DOI: 10.1109/TPEL.2019.2952633

Google Scholar

[3] C. DiMarino, et al., "Design and Experimental Validation of a Wire-Bond-Less 10-kV SiC MOSFET Power Module," in IEEE Journal of Emerging and Selected Topics in Power Electronics, vol. 8, no. 1, pp.381-394, March 2020.

DOI: 10.1109/JESTPE.2019.2944138

Google Scholar

[4] C. Ding, et al., "A double-side cooled SiC MOSFET power module with sintered-silver interposers: I-design, simulation, fabrication, and performance characterization, " IEEE Transactions on Power Electronics, vol. 36, no. 10, pp.11-672–11 680, Oct. 2021.

DOI: 10.1109/tpel.2021.3070326

Google Scholar

[5] R. Paul, et al., "A double-sided cooled SiC MOSFET power module for EV inverters", IEEE Transactions on Power Electronics, vol. 39, no. 9, pp.11-047–11 059, Sept. 2024.

DOI: 10.1109/tpel.2024.3397679

Google Scholar

[6] T. Abe, et al., "High temperature dielectric property of silicon nitride insulating substrate for next generation power module up to 350 degrees Celsius", International Conf. on Electronics Packaging (ICEP), Niigata, Japan: IEEE, Apr. 2019, p.444–448.

DOI: 10.23919/ICEP.2019.8733529

Google Scholar

[7] Z. Zhang, et al., "From packaging to converter: a high power density power converter based on direct cooling chip-on-ceramic heatsink packaging", IEEE 9th Southern Power Electronics Conf. (SPEC), Brisbane, Australia: IEEE, Dec. 2024, p.1–6.

DOI: 10.1109/SPEC62217.2024.10892807

Google Scholar

[8] T. Ueda, et al., "Simple, compact, robust and high-performance power module T-PM (transfer-molded power module)", in Proc. Int. Symp. Power Semicond. Devices ICs, 2010, p.47–50.

Google Scholar

[9] L. Wang, et al., "A Review of Partial Discharge in Medium Voltage SiC Power Modules Under Square Wave Excitation: Characterization, Mitigation, and Detection," in IEEE Journal of Emerging and Selected Topics in Power Electronics, vol. 12, no. 4, pp.3588-3606, Aug. 2024.

DOI: 10.1109/JESTPE.2024.3408449

Google Scholar

[10] Y. Zhang, et al., "Investigation of a finned baseplate material and thickness variation for thermal performance of a SiC power module," 15th Int. Conf. on Multi-Physics Simulation and Experiments in Microelectronics (EuroSimE), Belgium, 2014, pp.1-8.

DOI: 10.1109/EuroSimE.2014.6813817

Google Scholar

[11] M. Appleby et al., "Instrumentation Requirements for Fast 130+ V/ns Switching of 1700 V, 35 mOmega SiC MOSFETs," PCIM Europe 2024, Nürnberg, Germany, 2024, pp.3271-3280.

Google Scholar
