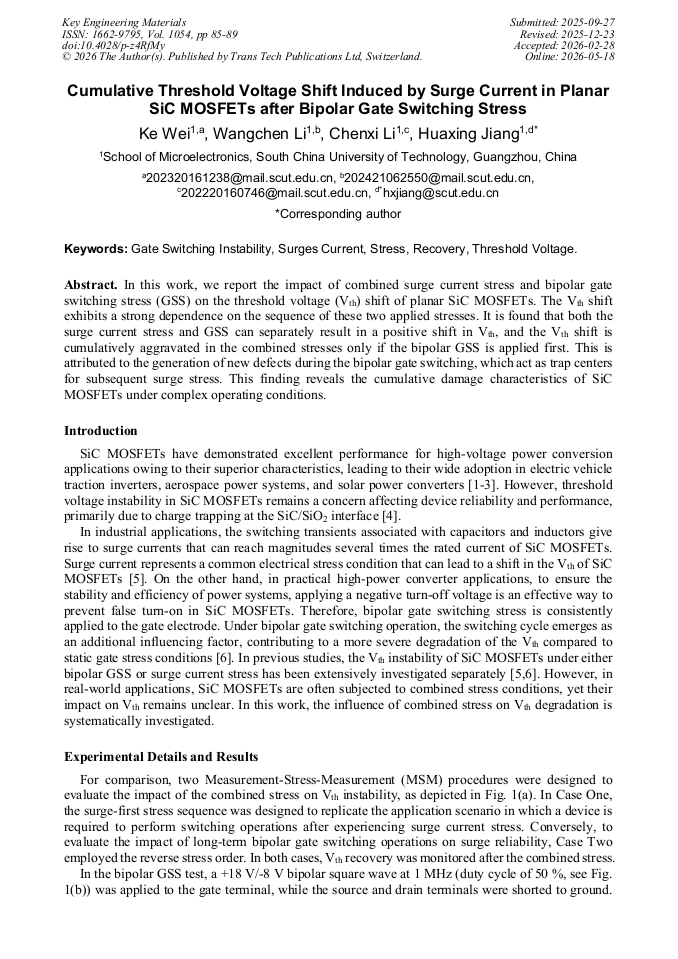

Cumulative Threshold Voltage Shift Induced by Surge Current in Planar SiC MOSFETs after Bipolar Gate Switching Stress

In this work, we report the impact of combined surge current stress and bipolar gate switching stress (GSS) on the threshold voltage (V_th) shift of planar SiC MOSFETs. The V_th shift exhibits a strong dependence on the sequence of these two applied stresses. It is found that both the surge current stress and GSS can separately result in a positive shift in V_th, and the V_th shift is cumulatively aggravated in the combined stresses only if the bipolar GSS is applied first. This is attributed to the generation of new defects during the bipolar gate switching, which act as trap centers for subsequent surge stress. This finding reveals the cumulative damage characteristics of SiC MOSFETs under complex operating conditions.

You have full access to the following eBook

Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules

Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

85-89

DOI:

https://doi.org/10.4028/p-z4RfMy

Citation:

Cite this paper

Online since:

May 2026

Authors:

Ke Wei, Wang Chen Li, Chen Xi Li, Hua Xing Jiang*

Keywords:

Gate Switching Instability (GSI), Recovery, Stress, Surges Current, Threshold Voltage (V_th)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] J. Millán, P. Godignon, X. Perpiñà, A. Pérez-Tomás, and J. Rebollo, "A survey of wide bandgap power semiconductor devices," Transactions on Power Electronics 29 (5), p.2155–2163 (2014).

DOI: 10.1109/tpel.2013.2268900

Google Scholar

[2] T. Kimoto and J.A. Cooper, Fundamentals of Silicon Carbide Technology: Growth, Characterization, Devices, and Applications. Wiley, Singapore, 2014.

DOI: 10.1002/9781118313534

Google Scholar

[3] Q. Zhang et al., "Latest results on 1200 V 4H-SiC CIMOSFETs with Rsp,on of 3.9 mΩ·cm2 at 150°C," in 27th International Symposium on Power Semiconductor Devices and ICs (ISPSD), Hong Kong, p.89–92 (2015).

DOI: 10.1109/ispsd.2015.7123396

Google Scholar

[4] T. Aichinger, G. Rescher, andG. Pobegen, "Threshold voltage peculiarities and bias temperature instabilities of SiC MOSFETs," Microelectronics Reliability 80, p.68–78 (2018).

DOI: 10.1016/j.microrel.2017.11.020

Google Scholar

[5] L. Knoll et al., "Robust 3.3kV silicon carbide MOSFETs with surge and short circuit capability," in 29th International Symposium on Power Semiconductor Devices and ICs (ISPSD), Sapporo, p.243–246 (2017).

DOI: 10.23919/ispsd.2017.7988905

Google Scholar

[6] H. Jiang, X. Zhong, G. Qiu, L. Tang, X. Qi, and L. Ran, "Dynamic gate stress induced threshold voltage drift of silicon carbide MOSFET," Electron Device Letters 41 (9), p.1284–1287 (2020).

DOI: 10.1109/led.2020.3007626

Google Scholar

[7] Lelis, A. J., et al., "Basic mechanisms of threshold-voltage instability and implications for reliability testing of SiC MOSFETs." in IEEE Transactions on Electron Devices 62 (2), pp.316-323 (2015).

DOI: 10.1109/ted.2014.2356172

Google Scholar

[8] H. Xu et al., "Methodology for enhanced surge robustness of 1.2-kV SiC MOSFET body diode," Journal of Emerging and Selected Topics in Power Electronics 10 (5), p.5039–5047 (2022).

DOI: 10.1109/jestpe.2021.3106742

Google Scholar

[9] M.W. Feil et al., "Gate switching instability in Silicon Carbide MOSFETs—Part I: experimental," in IEEE Transactions on Electron Devices 71 (7), pp.4210-4217 (2024).

DOI: 10.1109/ted.2024.3397636

Google Scholar
