Understanding the Influence of Different Parameters on the Dynamic VSD Behaviour of SiC MOSFETs during Power Cycling Test

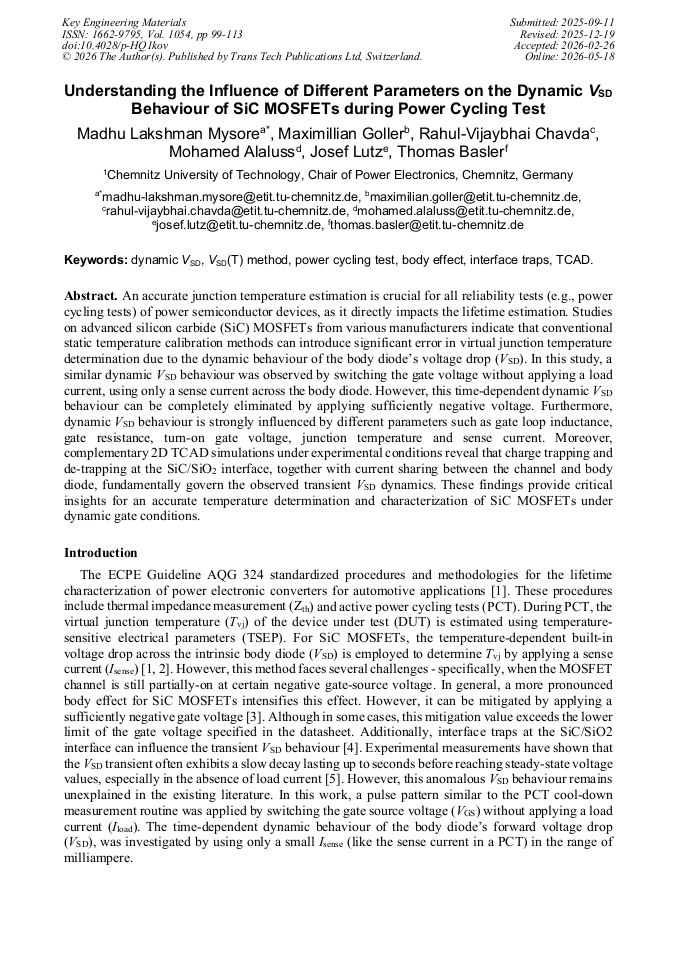

Article Preview
View Pdf By email

Abstract:

An accurate junction temperature estimation is crucial for all reliability tests (e.g., power cycling tests) of power semiconductor devices, as it directly impacts the lifetime estimation. Studies on advanced silicon carbide (SiC) MOSFETs from various manufacturers indicate that conventional static temperature calibration methods can introduce significant error in virtual junction temperature determination due to the dynamic behaviour of the body diode’s voltage drop (VSD). In this study, a similar dynamic VSD behaviour was observed by switching the gate voltage without applying a load current, using only a sense current across the body diode. However, this time-dependent dynamic VSD behaviour can be completely eliminated by applying sufficiently negative voltage. Furthermore, dynamic VSD behaviour is strongly influenced by different parameters such as gate loop inductance, gate resistance, turn-on gate voltage, junction temperature and sense current. Moreover, complementary 2D TCAD simulations under experimental conditions reveal that charge trapping and de-trapping at the SiC/SiO2 interface, together with current sharing between the channel and body diode, fundamentally govern the observed transient VSD dynamics. These findings provide critical insights for an accurate temperature determination and characterization of SiC MOSFETs under dynamic gate conditions.

You have full access to the following eBook
Robustness and Reliability of SiC MOSFET Devices, SiC MOSFET Power Modules Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1054)

Pages:

99-113

DOI:

https://doi.org/10.4028/p-HQ1kov

Citation:

Cite this paper

Online since:

May 2026

Authors:

Madhu Lakshman Mysore*, Maximilian Goller, Rahul Vijaybhai Chavda, Mohamed Alaluss, Josef Lutz, Thomas Basler

Keywords:

Body Effect, Dynamic VSD, Interface Traps, Power Cycling Test, TCAD, VSD(T) Method

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author
