Characterizations of 4H-SiC/SiO2 Interface by High-Temperature N2/H2 Pretreatment

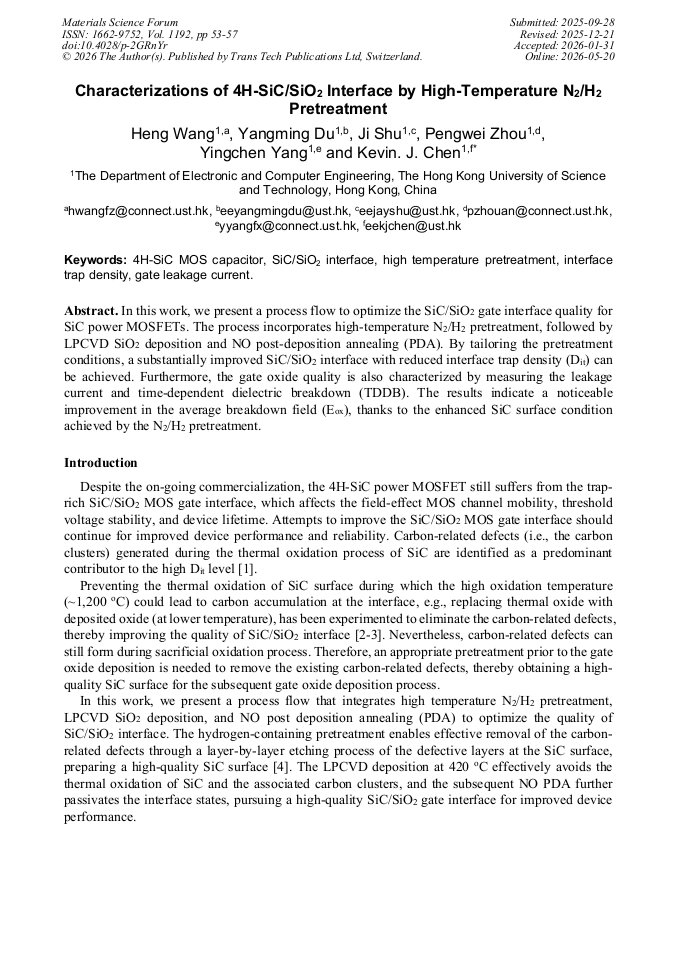

Article Preview
View Pdf By email

Abstract:

In this work, we present a process flow to optimize the SiC/SiO2 gate interface quality for SiC power MOSFETs. The process incorporates high-temperature N2/H2 pretreatment, followed by LPCVD SiO2 deposition and NO post-deposition annealing (PDA). By tailoring the pretreatment conditions, a substantially improved SiC/SiO2 interface with reduced interface trap density (Dit) can be achieved. Furthermore, the gate oxide quality is also characterized by measuring the leakage current and time-dependent dielectric breakdown (TDDB). The results indicate a noticeable improvement in the average breakdown field (Eox), thanks to the enhanced SiC surface condition achieved by the N2/H2 pretreatment.

You have full access to the following eBook
Interface, Dielectrics and Ohmic Contact in SiC Power Devices Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1192)

Pages:

53-57

DOI:

https://doi.org/10.4028/p-2GRnYr

Citation:

Cite this paper

Online since:

May 2026

Authors:

Heng Wang*, Yang Ming Du, Ji Shu, Peng Wei Zhou, Ying Chen Yang, Kevin J. Chen

Keywords:

4H-SiC MOS Capacitor, Gate Leakage Current, High Temperature Pretreatment, Interface Trap Density, SiC/SiO2 Interface

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] Z. Wang, Z. Zhang, S. Liu, C. Shao, J. Robertson, and Y. Guo, Impact of carbon–carbon defects at the SiO2/4H-SiC (0001) interface: a first-principles calculation, Journal of Physics D: Applied Physics 55.2 (2021): 025109.

DOI: 10.1088/1361-6463/ac2bc9

Google Scholar

[2] K. Tachiki, M. Kaneko, and T. Kimoto, Mobility improvement of 4H-SiC (0001) MOSFETs by a three-step process of H2 etching, SiO2 deposition, and interface nitridation, Applied physics express 14.3 (2021): 031001.

DOI: 10.35848/1882-0786/abdcd9

Google Scholar

[3] K. Tachiki, M. Kaneko, T. Kobayashi, and T. Kimoto, Formation of high-quality SiC (0001)/SiO2 structures by excluding oxidation process with H2 etching before SiO2 deposition and high-temperature N2 annealing, Applied physics express 13.12 (2020): 121002.

DOI: 10.35848/1882-0786/abc6ed

Google Scholar

[4] S. Glass, F. Reis, M. Bauernfeind, J. Aulbach, M. R. Scholz, F. Adler, L. Dudy, G. Li, R. Claessen, and J. Schäfer, Atomic-Scale Mapping of Layer-by-Layer Hydrogen Etching and Passivation of SiC (0001) Substrates, The Journal of Physical Chemistry C 120.19 (2016): 10361-10367.

DOI: 10.1021/acs.jpcc.6b01493

Google Scholar

[5] B. Tsui, Y. Huang, T. Wu, and C. Chien, Time-dependent dielectric breakdown of gate oxide on 4H-SiC with different oxidation processes, Microelectronics Reliability 123 (2021): 114186.

DOI: 10.1016/j.microrel.2021.114186

Google Scholar
