Enhanced Mobility in SiC (0001) MOSFETs Using a Decoupled Plasma Nitridation (DPN) Process and Oxide Deposition

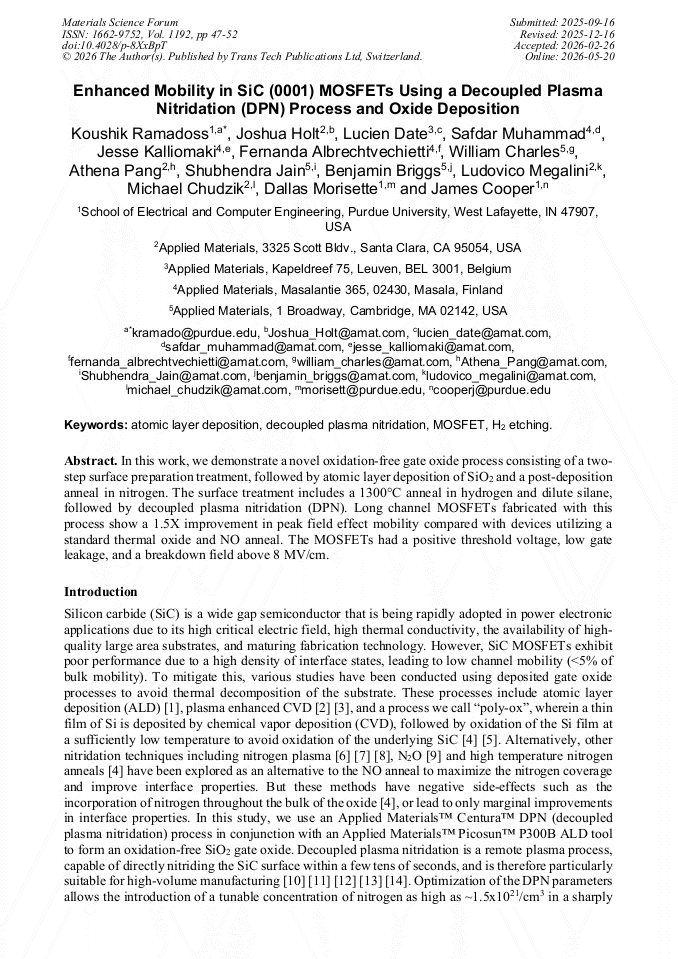

Article Preview
View Pdf By email

Abstract:

In this work, we demonstrate a novel oxidation-free gate oxide process consisting of a two-step surface preparation treatment, followed by atomic layer deposition of SiO2 and a post-deposition anneal in nitrogen. The surface treatment includes a 1300°C anneal in hydrogen and dilute silane, followed by decoupled plasma nitridation (DPN). Long channel MOSFETs fabricated with this process show a 1.5X improvement in peak field effect mobility compared with devices utilizing a standard thermal oxide and NO anneal. The MOSFETs had a positive threshold voltage, low gate leakage, and a breakdown field of nearly 10 MV/cm.

You have full access to the following eBook
Interface, Dielectrics and Ohmic Contact in SiC Power Devices Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1192)

Pages:

47-52

DOI:

https://doi.org/10.4028/p-8XxBpT

Citation:

Cite this paper

Online since:

May 2026

Authors:

Koushik Ramadoss*, Joshua Holt, Lucien Date, Safdar Muhammad, Jesse Kalliomaki, Fernanda Albrechtvechietti, William Charles, Athena Pang, Shubhendra Jain, Benjamin Briggs, Ludovico Megalini, Michael Chudzik, Dallas Morisette, James A. Cooper

Keywords:

Atomic Layer Deposition (ALD), Decoupled Plasma Nitridation, H2 Etching, MOSFET

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] R. P. Ramamurthy, D. T. Morisette, V. Amarasinghe and L. C. Feldman, "Thermal-oxidation-free dielectrics for SiC power devices," in 2017 IEEE 5th Workshop on Wide Bandgap Power Devices and Applications (WiPDA), 2017.

DOI: 10.1109/wipda.2017.8170554

Google Scholar

[2] K. Tachiki, M. Kaneko and a. T. Kimoto, "Mobility improvement of 4H-SiC (0001) MOSFETs by a three-step process of H2 etching, SiO2 deposition, and interface nitridation," Applied Physics Express, vol. 14, p.031001, 2021.

DOI: 10.35848/1882-0786/abdcd9

Google Scholar

[3] M. Yakut, A. Roy, F. Arith, A. Whitworth, A. Alexander, J. Gryglewicz, J. Sheriff, S. Olsen, K. Vasilevskiy and a. A. O'Neill, "Increasing Mobility in 4H-SiC MOSFETs with Deposited Oxide by In-Situ Nitridation of SiC Surface," Solid State Phenomena, vol. 359, pp.157-162, 2024.

DOI: 10.4028/p-vy4b9t

Google Scholar

[4] T. Kobayashi, T. Okuda, K. Tachiki, K. Ito, Y.-i. Matsushita and a. T. Kimoto, "Design and formation of SiC (0001)/SiO2 interfaces via Si deposition followed by low-temperature oxidation and high-temperature nitridation," Applied Physics Express, vol. 13, p.091003, 2020.

DOI: 10.35848/1882-0786/ababed

Google Scholar

[5] K. Ramadoss, A. Samal, D. T. Morisette and a. J. A. Cooper, "High Mobility SiC MOSFETs Using an Oxidation-Minimizing Process," in Poster presented at 21st International Conference on Silicon Carbide and Related Materials, 2024.

DOI: 10.35848/1882-0786/ae3366

Google Scholar

[6] X. Zhu, A. C. Ahyi, M. Li, Z. Chen, J. Rozen, L. C. Feldman and a. J. R. Williams, "The effect of nitrogen plasma anneals on interface trap density and channel mobility for 4H–SiC MOS devices," Solid-State Electronics, vol. 57, no. 1, pp.76-79, 2011.

DOI: 10.1016/j.sse.2010.12.002

Google Scholar

[7] Modic, Y. Sharma, Y. Xu, G. Liu, A. Ahyi, J. Williams, L. Feldman and a. S. Dhar, "Nitrogen Plasma Processing of SiO2/4H-SiC Interfaces," Journal of Electronic Materials, vol. 43, p.857–862, 2014.

DOI: 10.1007/s11664-014-3022-8

Google Scholar

[8] D.-K. Kim, Y.-S. Kang, K.-S. Jeong, H.-K. Kang, S. W. Cho, K.-B. Chung, H. Kim and a. M.-H. Cho, "Effects of spontaneous nitrogen incorporation by a 4H-SiC(0001) surface caused by plasma nitridation," Journal of Materials Chemistry C, vol. 3, pp.5078-5088, 2015.

DOI: 10.1039/c5tc00076a

Google Scholar

[9] T. Kimoto, H. Kawano, M. Noborio, J. Suda and a. H. Matsunami, "Improved Dielectric and Interface Properties of 4H-SiC MOS Structures Processed by Oxide Deposition and N2O Annealing," Materials Science Forum , Vols. 527-529, pp.987-990, 2006.

DOI: 10.4028/www.scientific.net/msf.527-529.987

Google Scholar

[10] H. N. Al-Shareef, A. Karamcheti, T. Y. Luo, G. Bersuker, G. A. Brown, R. W. Murto, M. D. Jackson, H. R. Huff, P. Kraus, D. Lopes, C. Olsen and G. Miner, "Device performance of in situ steam generated gate dielectric nitrided by remote plasma nitridation," Applied Physics Letters, vol. 78, pp.3875-3877, 2001.

DOI: 10.1063/1.1379363

Google Scholar

[11] Materials, "TSMC Qualifies Applied Materials' Gate Stack System for Its Leading-Edge 65nm Transistor Processes," Applied Materials, Inc, 5 May 2005. [Online]. Available: https://ir.appliedmaterials.com/news-releases/news-release-details/tsmc-qualifies-applied-materials-gate-stack-system-its-leading/.

Google Scholar

[12] S. W. Lim, T.-Y. Luo and a. J. Jiang, "Mechanism of Silicon Dioxide Decoupled Plasma Nitridation," Japanese Journal of Applied Physics, vol. 45, p. L413, 2006.

DOI: 10.1143/jjap.45.l413

Google Scholar

[13] M. Tian, K. Chen, C. Wang, T. Guan, Q. Sun and a. D. W. Zhang, "Decoupled Plasma Nitridation (DPN) and Postnitridation Annealing (PNA) Treatment for Metal Boundary Effect Reduction," IEEE Transactions on Electron Devices , vol. 71, no. 3, pp.2233-2237, 2024.

DOI: 10.1109/ted.2024.3360027

Google Scholar

[14] P. Fiorenza, G. Lorito, L. Vigo, L. Date, J. Holt, M. Vivona, G. Cautiero, A. Cockburn, L. Megalini, M. Chudzik and a. F. Roccaforte, "Decoupled Plasma Nitridation of SiC surface for Interface States Density reduction in 4H-SiC MOS Capacitors," in Poster presented at 22nd International Conference on Silicon Carbide and Related Materials, 2025.

Google Scholar

[15] T. Kimoto, T. Kobayashi and a. K. Tachiki, "SiC semiconductor device manufacturing method and SiC semiconductor device". United States Patent Application No. 2023/0307503 A1, 28 Sep 2023.

Google Scholar

[16] X. Yang, B. Lee and V. Misra, "Electrical Characteristics of SiO2 Deposited by Atomic Layer Deposition on 4H–SiC After Nitrous Oxide Anneal," IEEE Transactions on Electron Devices, vol. 63, p.2826, 2016.

DOI: 10.1109/ted.2016.2565665

Google Scholar
