Extraction of Trench Sidewall Capacitance by Linear Component Separation towards Wafer Level Evaluation

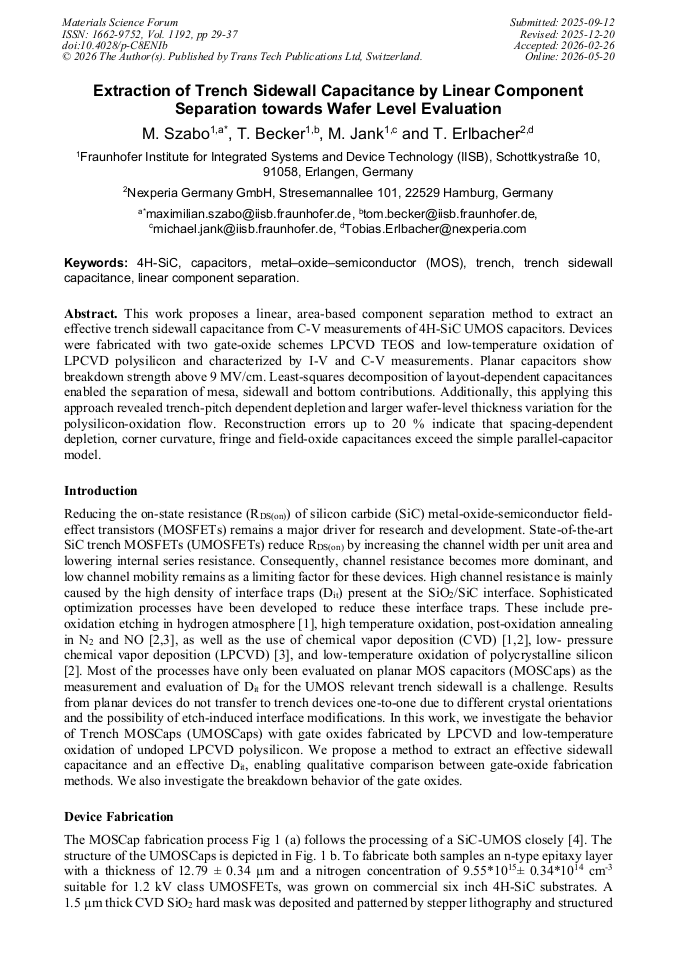

Article Preview
View Pdf By email

Abstract:

This work proposes a linear, area‑based component separation method to extract an effective trench sidewall capacitance from C-V measurements of 4H‑SiC UMOS capacitors. Devices were fabricated with two gate‑oxide schemes LPCVD TEOS and low‑temperature oxidation of LPCVD polysilicon and characterized by I-V and C-V measurements. Planar capacitors show breakdown strength above 9 MV/cm. Least‑squares decomposition of layout‑dependent capacitances enabled the separation of mesa, sidewall and bottom contributions. Additionally, this applying this approach revealed trench-pitch dependent depletion and larger wafer‑level thickness variation for the polysilicon‑oxidation flow. Reconstruction errors up to 20 % indicate that spacing‑dependent depletion, corner curvature, fringe and field‑oxide capacitances exceed the simple parallel‑capacitor model.

You have full access to the following eBook
Interface, Dielectrics and Ohmic Contact in SiC Power Devices Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1192)

Pages:

29-37

DOI:

https://doi.org/10.4028/p-C8ENIb

Citation:

Cite this paper

Online since:

May 2026

Authors:

Maximilian Szabo*, Tom Becker, Michael Jank, Tobias Erlbacher

Keywords:

4H-SiC, Capacitors, Linear Component Separation, Metal-Oxide-Semiconductor (MOS), Trench, Trench Sidewall Capacitance

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
