Preliminary Study into Ferroelectric Properties of ALD Al-Doped HfO2/SiO2/ 4H-SiC MOS Capacitors for Improved Short Circuit Reliability

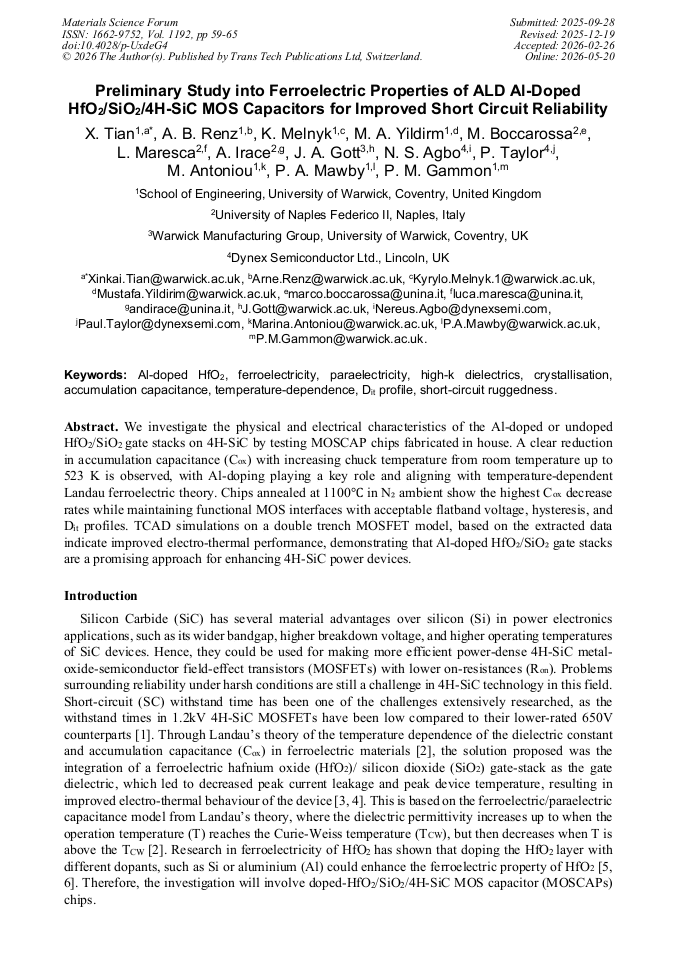

Article Preview
View Pdf By email

Abstract:

We investigate the physical and electrical characteristics of the Al-doped or undoped HfO2/SiO2 gate stacks on 4H-SiC by testing MOSCAP chips fabricated in house. A clear reduction in accumulation capacitance (Cox) with increasing chuck temperature from room temperature up to 523 K is observed, with Al-doping playing a key role and aligning with temperature-dependent Landau ferroelectric theory. Chips annealed at 1100°C in N₂ ambient show the highest Cox decrease rates while maintaining functional MOS interfaces with acceptable flatband voltage, hysteresis, and Dit profiles. TCAD simulations on a double trench MOSFET model, based on the extracted data indicate improved electro-thermal performance, demonstrating that Al-doped HfO₂/SiO₂ gate stacks are a promising approach for enhancing 4H-SiC power devices.

You have full access to the following eBook
Interface, Dielectrics and Ohmic Contact in SiC Power Devices Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1192)

Pages:

59-65

DOI:

https://doi.org/10.4028/p-UxdeG4

Citation:

Cite this paper

Online since:

May 2026

Authors:

Xinkai Tian*, Arne Benjamin Renz, Kyrylo Melnyk, Mustafa Akif Yildirm, Marco Boccarossa, Luca Maresca, A. Irace, James A. Gott, Nereus S. Agbo, Paul Taylor, Marina Antoniou, Philip Andrew Mawby, Peter M. Gammon

Keywords:

Accumulation Capacitance, Al-Doped HfO2, Crystallisation, Dit Profile, Ferroelectricity, High-k Dielectrics, Paraelectricity, Short-Circuit Ruggedness, Temperature-Dependence

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] G. Kampitsis, S. Papathanassiou, S. Manias, "Comparative evaluation of the short-circuit withstand capability of 1.2kV silicon carbide (SiC) power transistors in real life applications", Microelectronics Reliability, Volume 55, Issue 12, Part B, (2015), pp.2640-2646, ISSN 0026-2714.

DOI: 10.1016/j.microrel.2015.09.012

Google Scholar

[2] G.A. Salvatore et al., "Modeling the Temperature Dependence of Fe-FET Static Characteristics Based on Landau's Theory," in IEEE TED, vol. 58, no. 9, pp.3162-3169, Sept. 2011.

DOI: 10.1109/ted.2011.2160868

Google Scholar

[3] M. Boccarossa et al., "The Ferro-Power MOSFET: Enhancing Short-Circuit Robustness in Power Switches With a Ferroelectric Gate Stack," in IEEE Access, vol. 13, pp.59264-59274, 2025.

DOI: 10.1109/ACCESS.2025.3555931

Google Scholar

[4] M. Boccarossa et al., "Substantial Improvement of the Short-circuit Capability of a 1.2 kV SiC MOSFET by a HfO2/SiO2 Ferroelectric Gate Stack," 2024 36th International Symposium on Power Semiconductor Devices and ICs (ISPSD), Bremen, Germany, 2024, pp.88-91.

DOI: 10.1109/ISPSD59661.2024.10579678

Google Scholar

[5] Mueller, S., Mueller, J., Singh, A., Riedel, S., Sundqvist, J., Schroeder, U. and Mikolajick, T. (2012), Incipient Ferroelectricity in Al-Doped HfO2 Thin Films. Adv. Funct. Mater., 22: 2412-2417.

DOI: 10.1002/adfm.201103119

Google Scholar

[6] Park, M.H., Lee, Y.H., Kim, H.J., Kim, Y.J., Moon, T., Kim, K.D., Müller, J., Kersch, A., Schroeder, U., Mikolajick, T. and Hwang, C.S. (2015), Ferroelectricity and Antiferroelectricity of Doped Thin HfO2-Based Films. Adv. Mater., 27: 1811-1831.

DOI: 10.1002/adma.201404531

Google Scholar

[7] X. Tian et al., "The Impact of Varying the High-Temperature Post-Deposition Anneal Time or Temperature Ramp Rates on ALD-SiO2/4H-SiC Interfaces," 2024 IEEE Workshop on Wide Bandgap Power Devices and Applications in Europe (WiPDA Europe), Cardiff, United Kingdom, 2024, pp.1-5.

DOI: 10.1109/WiPDAEurope62087.2024.10797374

Google Scholar

[8] Jiseok Kim, Siddarth A. Krishnan, Sudarshan Narayanan, Michael P. Chudzik, Massimo V. Fischetti, "Thickness and temperature dependence of the leakage current in hafnium-based Si SOI MOSFETs", Microelectronics Reliability, vol. 52, Issue 12, 2012, pp.2907-2913, ISSN 0026-2714.

DOI: 10.1016/j.microrel.2012.06.151

Google Scholar

[9] Zhang, XY., Hsu, CH., Lien, SY. et al. Temperature-Dependent HfO2/Si Interface Structural Evolution and its Mechanism. Nanoscale Res Lett 14, 83 (2019).

DOI: 10.1186/s11671-019-2915-0

Google Scholar

[10] Kant, S., Kumar, V.S.R.S.P., Kumar, M. et al. Surface wettability, morphology and optical characteristics of HfO2 films grown systematically by electron beam evaporation. Appl. Phys. A 129, 172 (2023).

DOI: 10.1007/s00339-023-06434-2

Google Scholar

[11] K. Melnyk et al., "Analysis and Performance Trade-Offs of State-of-the-Art 4H-SiC Trench MOSFET Technology," 2024 IEEE ECCE, Phoenix, AZ, USA, 2024, pp.6764-6770.

DOI: 10.1109/ecce55643.2024.10861529

Google Scholar

[12] M.A. Yildirim et al., "Investigation of Interface and Reliability of 3C- and 4H-SiC MOS Structures through Gate Dielectric Stacking and Post-Deposition Annealing," MSF, vol. 1158, p.67–74, Sept. 2025, doi: 10.4028/p-q2iyst. Available:.

DOI: 10.4028/p-q2IYST

Google Scholar
