Electrical Characterization of Mo-Carbide Schottky Contacts on 4H-SiC

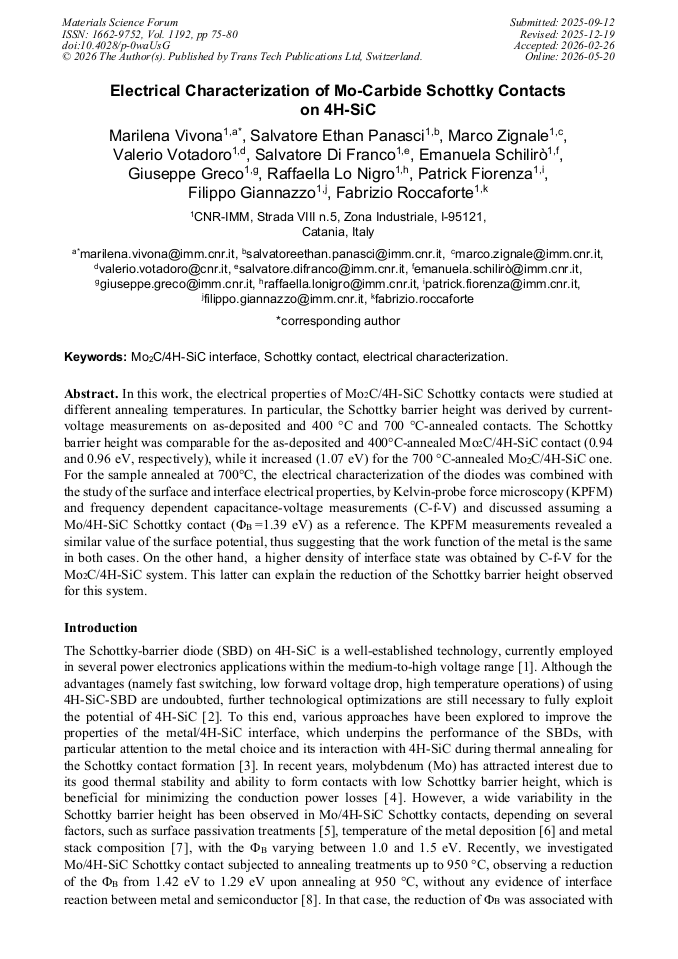

Article Preview
View Pdf By email

Abstract:

In this work, the electrical properties of Mo2C/4H-SiC Schottky contacts were studied at different annealing temperatures. In particular, the Schottky barrier height was derived by current-voltage measurements on as-deposited and 400 °C and 700 °C-annealed contacts. The Schottky barrier height was comparable for the as-deposited and 400°C-annealed Mo2C/4H-SiC contact (0.94 and 0.96 eV, respectively), while it increased (1.07 eV) for the 700 °C-annealed Mo2C/4H-SiC one. For the sample annealed at 700°C, the electrical characterization of the diodes was combined with the study of the surface and interface electrical properties, by Kelvin-probe force microscopy (KPFM) and frequency dependent capacitance-voltage measurements (C-f-V) and discussed assuming a Mo/4H-SiC Schottky contact (FB =1.39 eV) as a reference. The KPFM measurements revealed a similar value of the surface potential, thus suggesting that the work function of the metal is the same in both cases. On the other hand, a higher density of interface state was obtained by C-f-V for the Mo2C/4H-SiC system. This latter can explain the reduction of the Schottky barrier height observed for this system.

You have full access to the following eBook
Interface, Dielectrics and Ohmic Contact in SiC Power Devices Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1192)

Pages:

75-80

DOI:

https://doi.org/10.4028/p-0waUsG

Citation:

Cite this paper

Online since:

May 2026

Authors:

Marilena Vivona*, Salvatore Ethan Panasci, Marco Zignale, Valerio Votadoro, Salvatore di Franco, Emanuela Schilirò, Giuseppe Greco, Raffaella Lo Nigro, Patrick Fiorenza, Filippo Giannazzo, Fabrizio Roccaforte

Keywords:

Electrical Characterization, Mo2C/ 4H-SiC Interface, Schottky Contact

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author
