Threshold Voltage Control in 4H-SiC MOS Devices by Atomic Layer Deposited Al₂O₃/SiO₂ Interface Dipole Engineering

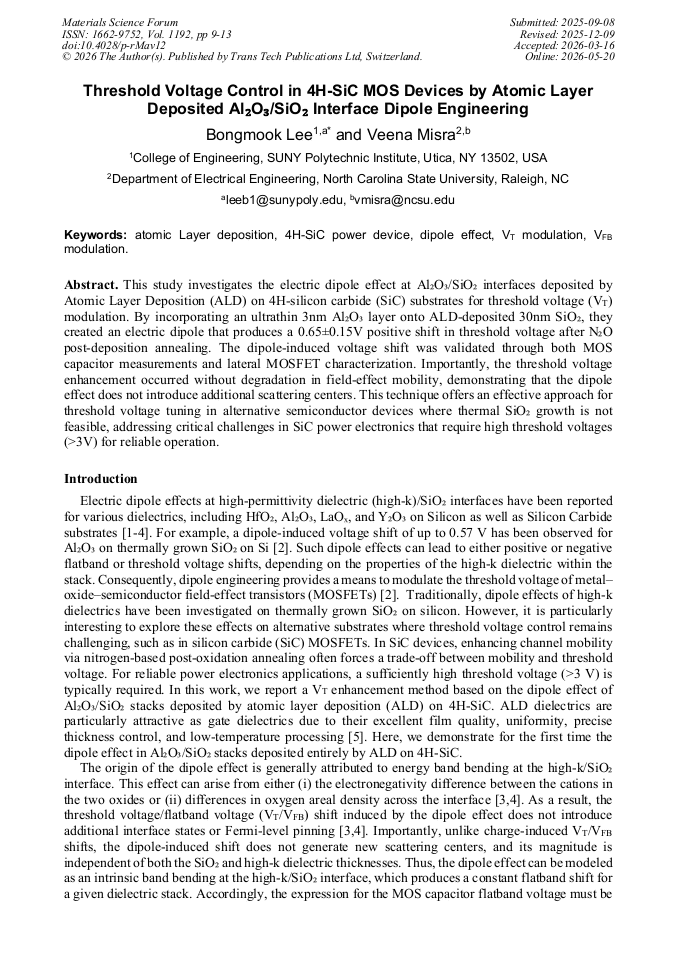

View Pdf By email

Abstract:

This study investigates the electric dipole effect at Al₂O₃/SiO₂ interfaces deposited by Atomic Layer Deposition (ALD) on 4H-silicon carbide (SiC) substrates for threshold voltage (V_T) modulation. By incorporating an ultrathin 3nm Al₂O₃ layer onto ALD-deposited 30nm SiO₂, they created an electric dipole that produces a 0.65±0.15V positive shift in threshold voltage after N₂O post-deposition annealing. The dipole-induced voltage shift was validated through both MOS capacitor measurements and lateral MOSFET characterization. Importantly, the threshold voltage enhancement occurred without degradation in field-effect mobility, demonstrating that the dipole effect does not introduce additional scattering centers. This technique offers an effective approach for threshold voltage tuning in alternative semiconductor devices where thermal SiO₂ growth is not feasible, addressing critical challenges in SiC power electronics that require high threshold voltages (>3V) for reliable operation.

You have full access to the following eBook

Interface, Dielectrics and Ohmic Contact in SiC Power Devices

Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1192)

Pages:

9-13

DOI:

https://doi.org/10.4028/p-rMav12

Citation:

Cite this paper

Online since:

May 2026

Authors:

Bongmook Lee*, Veena Misra

Keywords:

4H-SiC Power Device, Atomic Layer Deposition (ALD), Dipole Effect, V_FB Modulation, V_T Modulation

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author
