Electrical Characteristics Temperature Dependence of 600V-Class Deep Implanted Gate Vertical JFET

Makoto Mizukami; Osamu Takikawa; Seiji Imai; Kozo Kinoshita; Tetsuo Hatakeyama; Tomokazu Domon; Takashi Shinohe

doi:10.4028/www.scientific.net/MSF.483-485.881

Paper Titles

Hole-Like Defects in n-Channel 4H-SiC MESFETs Observed by Current Transient Spectroscopy
p.865

High-Purity Versus High-Defect-Density Semiinsulating Substrates for SiC MESFET: Simulation of Device Characteristics
p.869

Wannier-Stark Localization Effects in 6H-SiC JFETs
p.873

Effective Edge Termination Design in SiC VJFET
p.877

Electrical Characteristics Temperature Dependence of 600V-Class Deep Implanted Gate Vertical JFET
p.881

Gamma and Proton Irradiation Effects on 4H-SiC Depletion-Mode Trench JFETs
p.885

Current Gain of 4H-SiC Bipolar Transistors Including the Effect of Interface States
p.889

BV_CEO Versus BV_CBO for 4H and 6H Polytype SiC Bipolar Junction Transistors
p.893

Electrical Characteristics of 4H-SiC BJTs at Elevated Temperatures
p.897

HomeMaterials Science ForumMaterials Science Forum Vols. 483-485Electrical Characteristics Temperature Dependence...

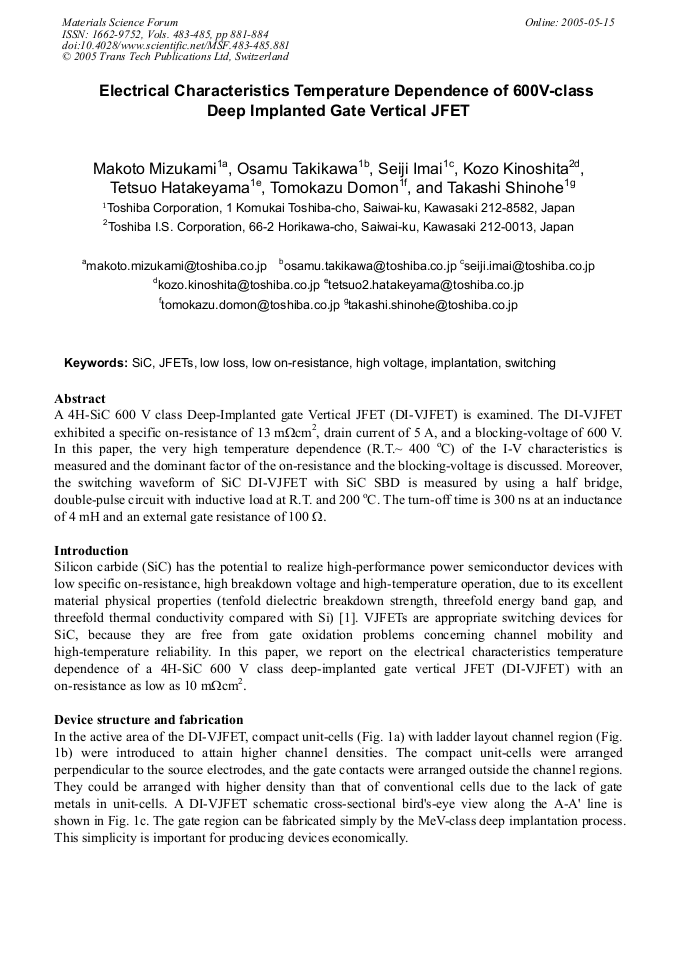

Electrical Characteristics Temperature Dependence of 600V-Class Deep Implanted Gate Vertical JFET
