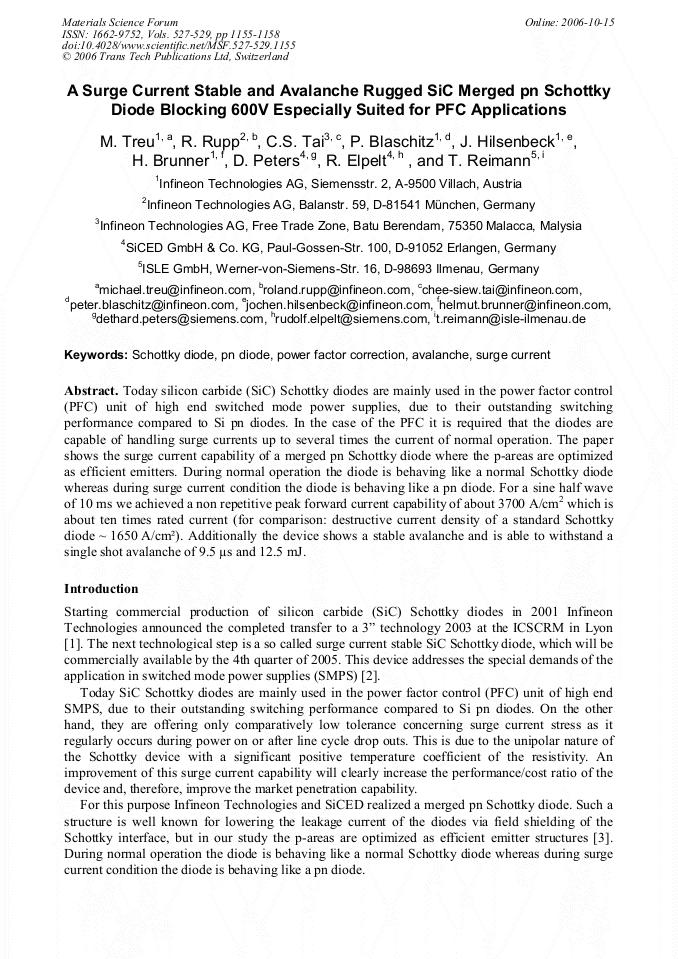

A Surge Current Stable and Avalanche Rugged SiC Merged pn Schottky Diode Blocking 600V Especially Suited for PFC Applications

Michael Treu; Roland Rupp; Chee Siew Tai; Peter Blaschitz; Jochen Hilsenbeck; Helmut Brunner; Dethard Peters; Rudolf Elpelt; T. Reimann

doi:10.4028/www.scientific.net/MSF.527-529.1155
