Growth of Nanocrystalline Translucent h-BN Films Deposited by CVD at High Temperature on SiC Substrates

Abstract:

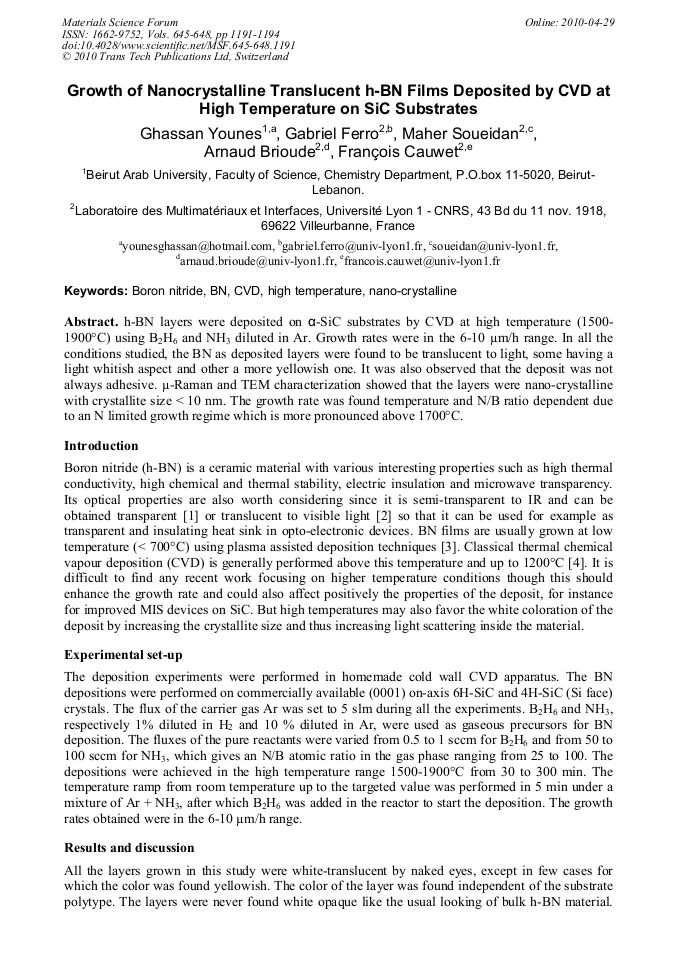

h-BN layers were deposited on α-SiC substrates by CVD at high temperature (1500-1900°C) using B2H6 and NH3 diluted in Ar. Growth rates were in the 6-10 µm/h range. In all the conditions studied, the BN as deposited layers were found to be translucent to light, some having a light whitish aspect and other a more yellowish one. It was also observed that the deposit was not always adhesive. µ-Raman and TEM characterization showed that the layers were nano-crystalline with crystallite size < 10 nm. The growth rate was found temperature and N/B ratio dependent due to an N limited growth regime which is more pronounced above 1700°C.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2009

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 645-648)

Pages:

1191-1194

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.645-648.1191

Citation:

Cite this paper

Online since:

April 2010

Authors:

Ghassan Younes, Gabriel Ferro, Maher Soueidan, Arnaud Brioude, François Cauwet

Keywords:

Chemical Vapor Deposition (CVD)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K. Watanabe, T. Taniguchi and H. Kanda, Nature Materials Vol. 3 (2004), p.404.

Google Scholar

[2] T. Takahashi, H. Itoh, M. Kuroda, J. Crystal Growth Vol. 47 (1979), p.245.

Google Scholar

[3] K. Larsson, Wide band gap materials and new developments, Research Signpost, Trivandrum695 023 (Kerala, India), editors M. Syväjärvi and R. Yakimova (2006), p.41.

Google Scholar

[4] B. J Choi, Materials Research Bulletin Vol. 34 (1999), p.2215.

Google Scholar

[5] R.J. Nemanich, S.A. Solin, R.M. Martin, Phys. Rev. B Vol. 23 (1981), p.6348.

Google Scholar

[6] S.L. Rumyantsev, M.E. Levinshtein, A.D. Jackson, S.N. Mohammad, G.L. Harris, M.G. Spencer, M.S. Shur, Properties of Advanced Semiconductor Materials, Eds. M.E. Levinshtein, S.L. Rumyantsev, M.S. Shur, Wiley & Sons Inc., New York (2001).

DOI: 10.1142/2046

Google Scholar

[4] [5] [6] [7] [8] [9] [10] B2H6 = 1 sccm; N/B = 25 B2H6 = 0. 5 sccm; N/B = 100 Figure 6 : µ-IR reflectivity spectrum collected on a BN layer grown on SiC substrate. 500 1000 1500 2000 2500 3000 3500 4000.

Google Scholar

[20] [40] [60] [80] 100 120 Reflectivity (%) Wavenumber (cm-1) BN SiC BN Layer : 3. 36 µm.
