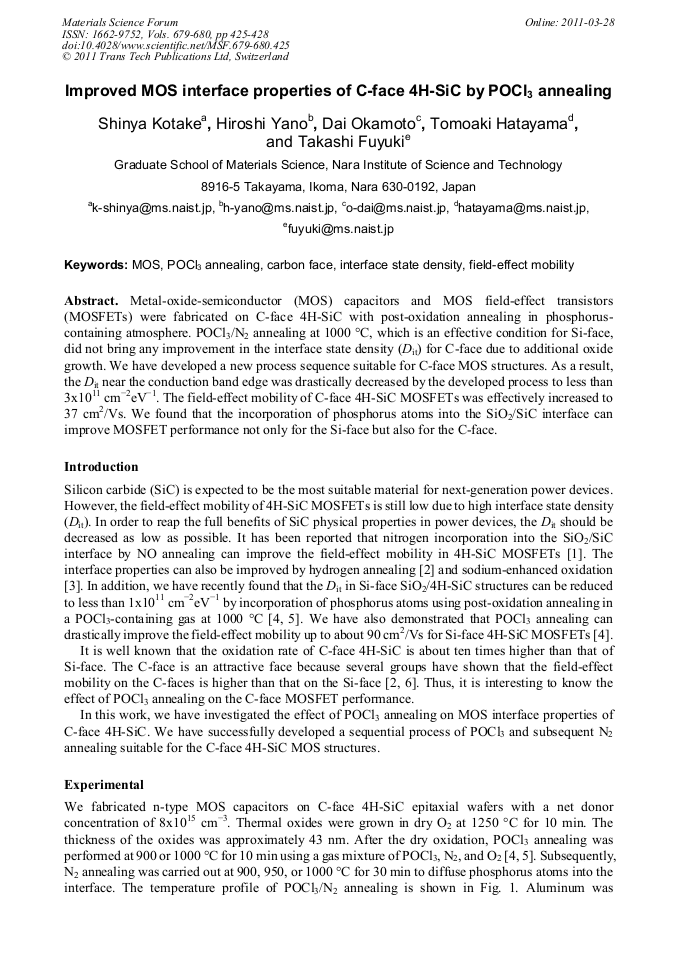

Improved MOS Interface Properties of C-Face 4H-SiC by POCl₃ Annealing

Abstract:

Metal-oxide-semiconductor (MOS) capacitors and MOS field-effect transistors (MOSFETs) were fabricated on C-face 4H-SiC with post-oxidation annealing in phosphorus- containing atmosphere. POCl3/N2 annealing at 1000 °C, which is an effective condition for Si-face, did not bring any improvement in the interface state density (Dit) for C-face due to additional oxide growth. We have developed a new process sequence suitable for C-face MOS structures. As a result, the Dit near the conduction band edge was drastically decreased by the developed process to less than 3x1011 cm−2eV−1. The field-effect mobility of C-face 4H-SiC MOSFETs was effectively increased to 37 cm2/Vs. We found that the incorporation of phosphorus atoms into the SiO2/SiC interface can improve MOSFET performance not only for the Si-face but also for the C-face.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2010

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 679-680)

Pages:

425-428

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.679-680.425

Citation:

Cite this paper

Online since:

March 2011

Authors:

Shinya Kotake, Hiroshi Yano, Dai Okamoto, Tomoaki Hatayama, Takashi Fuyuki

Keywords:

Carbon Face, Field-Effect Mobility, Interface State Density (D_it), MOS, POCl₃ Annealing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G. Y. Chung, C. C. Tin, J. R. Williams, K. McDonald, R. K. Chanana, R. A. Weller, S. T. Pantelides, L. C. Feldman, O. W. Holland, M. K. Das and J. W. Palmour: IEEE Electron Devices Lett. Vol. 22 (2001), p.176.

DOI: 10.1109/55.915604

Google Scholar

[2] K. Fukuda, M. Kato, K. Kojima and J. Senzaki: Appl. Phys. Lett. Vol. 84 (2004), p. (2088).

Google Scholar

[3] F. Allerstam, H. Ö. Ólafsson, G. Gudjónsson, D. Dochev, E. Ö. Sveinbjörnsson, T. Rödle and R. Jos: J. Appl. Phys. Vol. 101 (2007), p.124502.

DOI: 10.1063/1.2745321

Google Scholar

[4] D. Okamoto, H. Yano, K. Hirata, K. Hatayama and T. Fuyuki: IEEE Electron Devices Lett. Vol. 31 (2010), p.710.

Google Scholar

[5] D. Okamoto, H. Yano, T. Hatayama and T. Fuyuki: Appl. Phys. Lett. Vol. 96 (2010), p.203508.

Google Scholar

[6] T. Kimoto, Y. Kanzaki, M. Noborio, H. Kawano and H. Matsunami: Jpn. J. Appl. Phys. Vol. 44 (2005), p.1213.

Google Scholar
