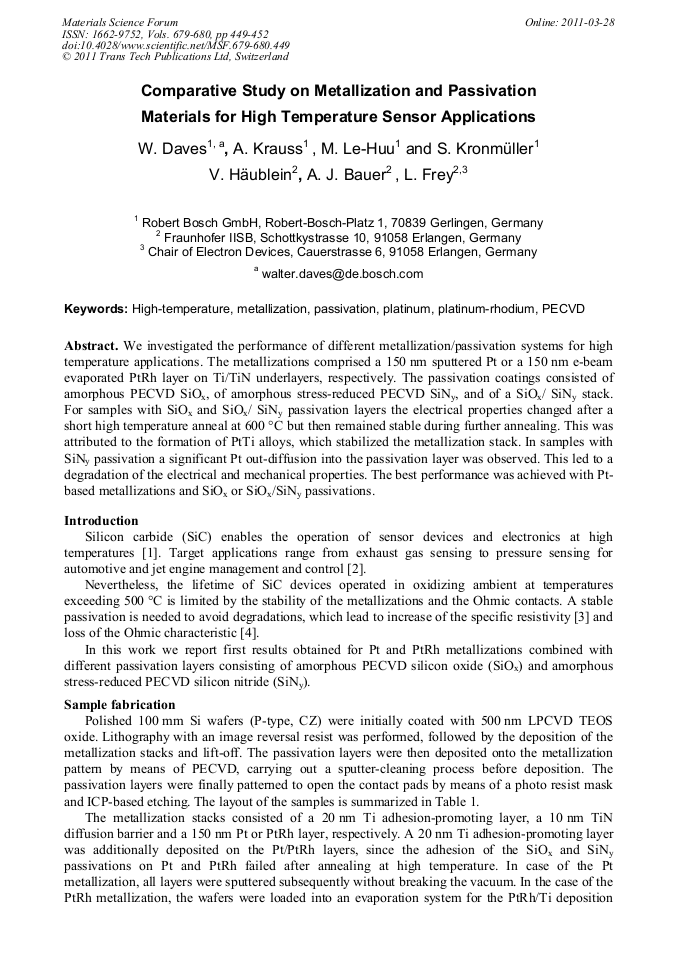

Comparative Study on Metallization and Passivation Materials for High Temperature Sensor Applications

Abstract:

We investigated the performance of different metallization/passivation systems for high temperature applications. The metallizations comprised a 150 nm sputtered Pt or a 150 nm e-beam evaporated PtRh layer on Ti/TiN underlayers, respectively. The passivation coatings consisted of amorphous PECVD SiOx, of amorphous stress-reduced PECVD SiNy, and of a SiOx/ SiNy stack. For samples with SiOx and SiOx/ SiNy passivation layers the electrical properties changed after a short high temperature anneal at 600 °C but then remained stable during further annealing. This was attributed to the formation of PtTi alloys, which stabilized the metallization stack. In samples with SiNy passivation a significant Pt out-diffusion into the passivation layer was observed. This led to a degradation of the electrical and mechanical properties. The best performance was achieved with Pt-based metallizations and SiOx or SiOx/SiNy passivations.

• Periodical: Materials Science Forum (Volumes 679-680)
• Pages: 449-452
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.679-680.449
• Online since: March 2011
• Authors: Walter Daves, A. Krauss, Martin Le-Huu, S. Kronmüller, Volker Haeublein, Anton J. Bauer, Lothar Frey
• Keywords: High-Temperature, Metallization, Passivation, PECVD, Platinum, Platinum-Rhodium

References

[1] E. Kohn, Harsh environment materials, in: Comprehensive Microsystems, Elsevier Science, Oxford (2008), Vol. 1, pp.131-173.

[2] R. Cheung, Silicon Carbide Micro Electromechanical Systems for Harsh Environments, Imperial College Press, London (2006), pp.128-168.

[3] S. L. Firebaugh et al., Journal of Microelectromechanical Systems, Vol. 7 (1998), pp.128-135.

[4] A. Virshup at al., J. of Elec. Mat., Vol. 38 (2009), pp.569-573.

[5] S. J. Bull, E. G. Berasetegui, Tribology International, Vol. 39 (2006), p.99–114.

[6] S. Ringler et al., Applied Surface Science, Vol. 162–163 (2000), pp.190-197.

[7] E. Savitskii et al., Physical Metallurgy of Platinum Metals, Pergamon Press, New York (1978).

[8] U. Schmid et al., Thin Solid Films, Vol. 516 (2008), p.898–906.

[9] R. M. Tiggelaar et al., Sensors and Actuators A, Vol. 152 (2009), p.39–47.
