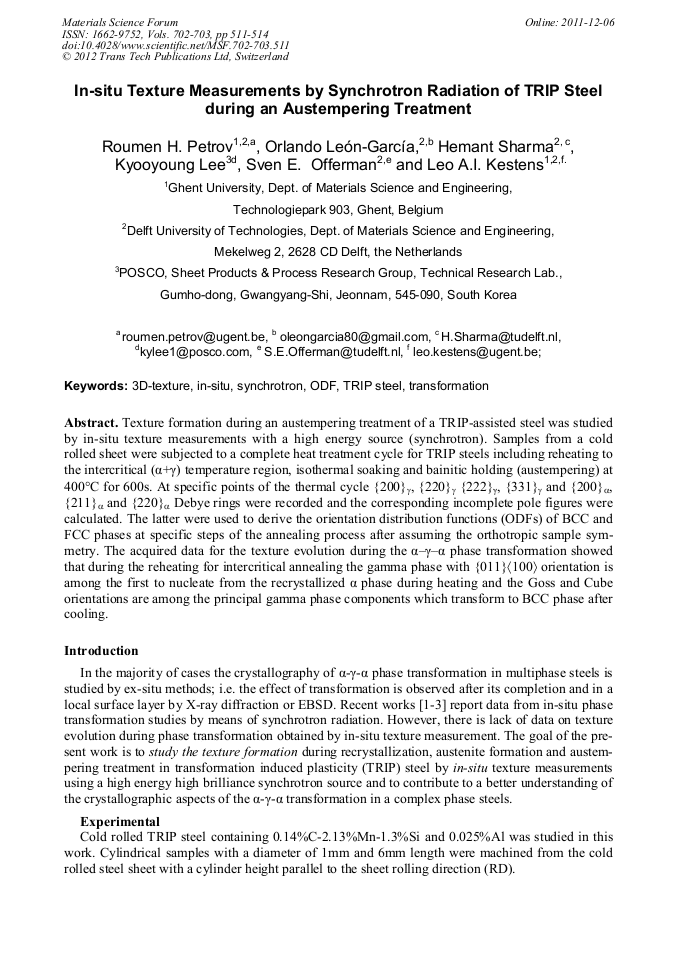

In-Situ Texture Measurements by Synchrotron Radiation of TRIP Steel during an Austempering Treatment

Abstract:

Texture formation during an austempering treatment of a TRIP-assisted steel was studied by in-situ texture measurements with a high energy source (synchrotron). Samples from a cold rolled sheet were subjected to a complete heat treatment cycle for TRIP steels including reheating to the intercritical (α+γ) temperature region, isothermal soaking and bainitic holding (austempering) at 400°C for 600s. At specific points of the thermal cycle {200}γ, {220}γ {222}γ, {331}γ and {200}α, {211}α and {220}α Debye rings were recorded and the corresponding incomplete pole figures were calculated. The latter were used to derive the orientation distribution functions (ODFs) of BCC and FCC phases at specific steps of the annealing process after assuming the orthotropic sample symmetry. The acquired data for the texture evolution during the α–γ–α phase transformation showed that during the reheating for intercritical annealing the gamma phase with {011} orientation is among the first to nucleate from the recrystallized α phase during heating and the Goss and Cube orientations are among the principal gamma phase components which transform to BCC phase after cooling.

• Periodical: Materials Science Forum (Volumes 702-703)
• Pages: 511-514
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.702-703.511
• Online since: December 2011
• Authors: Roumen H. Petrov, Orlando León-García, Hemant Sharma, Kyoo Young Lee, S. Erik Offerman, Leo A.I. Kestens
• Keywords: 3D-Texture, In Situ, ODF, Synchrotron, Transformation, TRIP Steel

References

[1] S.E. Offerman, N.H. van Dijk, J. Sietsma, S. Grigull, E.M. Lauridsen, L. Margulies, H.F. Poulsen, M.Th. Rekveldt, S. van der Zwaag, Science, 298 1003-1005 (2002).

DOI: 10.1126/science.1076681

[2] N. Dijk, A.M. Butt, L. Zhao, J. Sietsma, S.E. Offerman, J.P. Wright, S. van der Zwaag, , Acta Materialia, 53, 5439-5447 (2005).

DOI: 10.1016/j.actamat.2005.08.017

[3] B.C. DeCooman, Current Opinion in Solid State and Material Science, 8, 285-303 (2004).

[4] H. Sharma, A.C. Wattjes, M. Amirthalingam, T. Zuidwijk, N. Geerlofs and S.E. Offerman, Rev. Sci. Instruments, 80, 123301-1-7, (2009).

DOI: 10.1063/1.3262501

[5] M. Amirthalingam, M.J.M. Hermans, R.M. Huizenga, S.E. Offerman, J. Sietsma and I.M. Richardson, "In-situ phase transformation studies on a transformation induced plasticity steel under simulated weld thermal cycles using synchrotron diffraction", T.Kannengiesser et al., (eds), Springer-Verlag, Berlin Heidelberg, 133 – 148, (2011).

DOI: 10.1007/978-3-642-14794-4_9

[6] H.R. Wenk and S. Grigull, "Synchrotron Texture Analysis with Area Detectors", Journal of Applied Crystallography, 36, 1040-1049 (2003).

DOI: 10.1107/s0021889803010136

[7] A.P. Hammersley, "Fit2D: V99.129 Reference Manual Version 3.1". Internal Report ESRF-98-HA01, (1998).

[8] R. Hielscher and H. Schaeben, "A novel pole figure inversion method: specification of the MTEX algorithm", J. Appl. Cryst., 41, 1024–1037, (2008).

DOI: 10.1107/s0021889808030112
