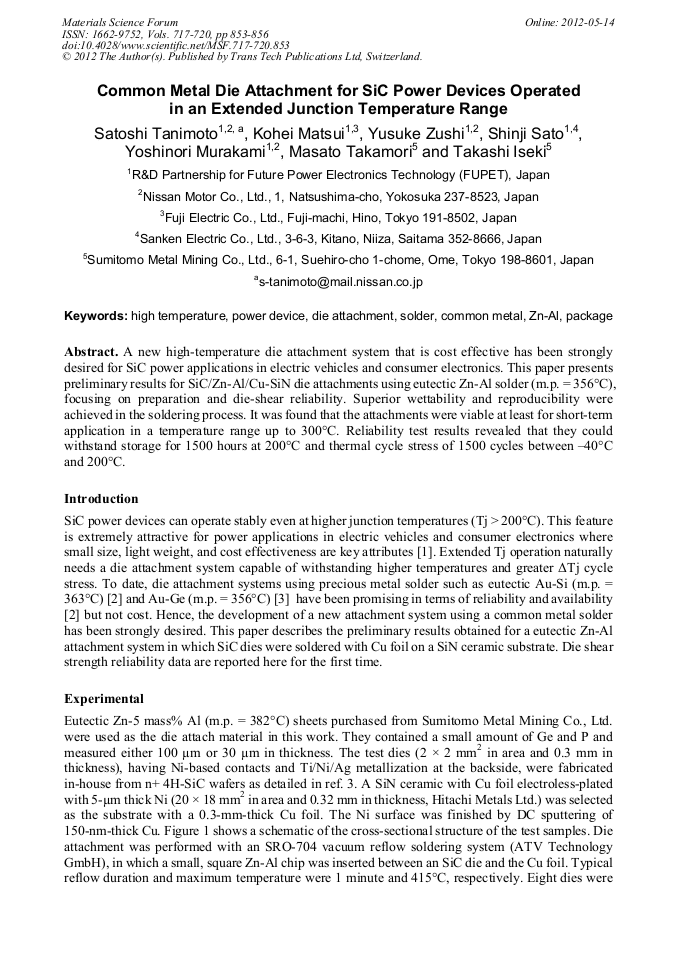

Common Metal Die Attachment for SiC Power Devices Operated in an Extended Junction Temperature Range

Abstract:

A new high-temperature die attachment system that is cost effective has been strongly desired for SiC power applications in electric vehicles and consumer electronics. This paper presents preliminary results for SiC/Zn-Al/Cu-SiN die attachments using eutectic Zn-Al solder (m.p. = 356°C), focusing on preparation and die-shear reliability. Superior wettability and reproducibility were achieved in the soldering process. It was found that the attachments were viable at least for short-term application in a temperature range up to 300°C. Reliability test results revealed that they could withstand storage for 1500 hours at 200°C and thermal cycle stress of 1500 cycles between –40°C and 200°C.

By email View Pdf

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2011

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 717-720)

Pages:

853-856

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.717-720.853

Citation:

Cite this paper

Online since:

May 2012

Authors:

Satoshi Tanimoto, Kohei Matsui, Yusuke Zushi, Shinji Sato, Yoshinori Murakami, Masato Takamori, Takashi Iseki

Keywords:

Common Metal, Die Attachment, High-Temperature, Package, Power Device, Solder, Zn-Al

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

References

[1] J. Hornberger, A. B. Lostetter, K. J. Olejniczak, T. McNutt, S. Magan Lal and A. Mantooth: 2004 IEEE Aerospace Conference Proceedings (Big Sky, MT, USA, 2004), pp.2583-2554.

DOI: 10.1109/aero.2004.1368048

Google Scholar

[2] P. Zheng, A. Wiggins, R. W. Hohnson, R. V. Frampton, S. J. Adam and L. Peltz: Proceedings, IMAPS International Conference and Exhibition on High Temperature Electronics 2008 (Albuquerque, NM, USA, 2008), pp.213-219.

Google Scholar

[3] S. Tanimoto, K. Matsui, Y. Murakami, H. Yamaguchi and H. Okumura: Proceedings, IMAPS International Conference and Exhibition on High Temperature Electronics 2010 (Albuquerque, NM, USA, 2010), pp.32-39.

Google Scholar

[4] T. Shimizu, H. Ishikawa, I. Ohnuma and K. Ishida: J. Electron. Mater., Vol. 28, p.1172 (1999).

Google Scholar

[5] Y. Yamada, Y. Takaku, Y. Yagi, I. Nakagawa, T. Atsumi, M. Shirai, I. Ohnuma and K. Ishida: ICEP 2009 Proceedings (Kyoto, Japan, 2009), pp.696-699.

Google Scholar

[6] http://www.crct.polymtl.ca/FACT/phase_diagram.php?file=Al-Zn.jpg&dir=BINARY

Google Scholar

[7] International Standard IEC 60749-19.

Google Scholar
