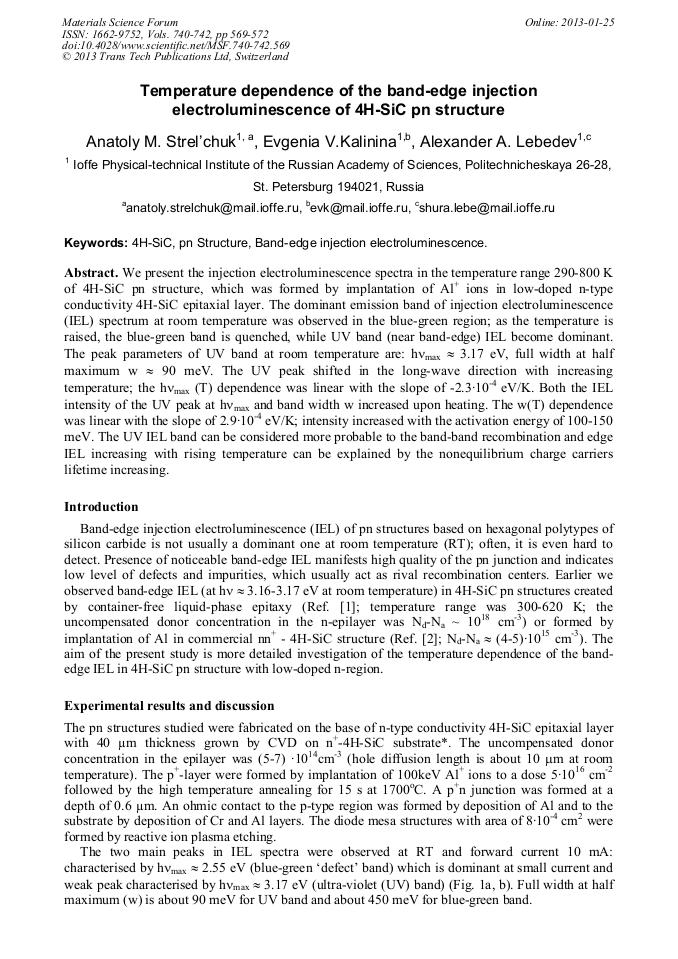

Temperature Dependence of the Band-Edge Injection Electroluminescence of 4H-SiC pn Structure

Abstract:

We present the injection electroluminescence spectra in the temperature range 290-800 K of 4H-SiC pn structure, which was formed by implantation of Al+ ions in low-doped n-type conductivity 4H-SiC epitaxial layer. The dominant emission band of injection electroluminescence (IEL) spectrum at room temperature was observed in the blue-green region; as the temperature is raised, the blue-green band is quenched, while UV band (near band-edge) IEL become dominant. The peak parameters of UV band at room temperature are: hmax  3.17 eV, full width at half maximum w  90 meV. The UV peak shifted in the long-wave direction with increasing temperature; the hmax (T) dependence was linear with the slope of -2.3∙10-4 eV/K. Both the IEL intensity of the UV peak at hmax and band width w increased upon heating. The w(T) dependence was linear with the slope of 2.9∙10-4 eV/K; intensity increased with the activation energy of 100-150 meV. The UV IEL band can be considered more probable to the band-band recombination and edge IEL increasing with rising temperature can be explained by the nonequilibrium charge carriers lifetime increasing.

• Periodical: Materials Science Forum (Volumes 740-742)
• Pages: 569-572
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.740-742.569
• Online since: January 2013
• Authors: Anatoly M. Strel'chuk, Evgenia V. Kalinina, Alexander A. Lebedev
• Keywords: 4H-SiC, Band-Edge Injection Electroluminescence, pn Structures

References

[1] M. M. Anikin, A. M. Strel'chuk, A. L. Syrkin, V. E. Chelnokov, A. E. Cherenkov, Temperature and current dependence of the intensity of the edge injection electroluminescence of SiC p-n structures, Semiconductors 28 (1994) 171-174.

[2] A. M. Strel'chuk, E. V. Kalinina, A. O. Konstantinov, A. Hallen, Influence of gamma-ray and neutron irradiation on injection characteristics of 4H-SiC pn structures, Mater. Sci. Forum 483-485 (2005) 993-996.

DOI: 10.4028/www.scientific.net/msf.483-485.993

[3] M. Ikeda, H. Matsunami, Free exciton luminescence in 3C, 4H, 6H, and 15R SiC, Phys. Stat. Sol. (a) 58 (1980).

DOI: 10.1002/pssa.2210580242

[4] M. E. Levinshtein, S. L. Rumyantsev, M. S. Shur, Properties of advanced semiconductor materials: GaN, AlN, InN, BN, SiC, SiGe, John Wiley and sons, Inc., 2001, 8-9.

[5] A. M. Strel`chuk, A. A. Lebedev, N. S. Savkina, A. N. Kuznetsov, Temperature dependence of the band-edge injection electroluminescence of 3C-SiC pn structure, Mater. Sci. Forum 556-557 (2007) 427-430.

DOI: 10.4028/www.scientific.net/msf.556-557.427

[6] A. M. Strel'chuk, Lifetimes and diffusion lengths of nonequilibrium charge carriers in SiC p-n structures, Semiconductors 29 (1995) 614-623.

[7] O. V. Loseww, Luminous carborundum detector and detection effect and oscillations with crystals, Wireless telegraphy and telephony 44 (1927) 485-494 (in Russian), and Phil. Mag. 6 (1928) 1024-1044.
