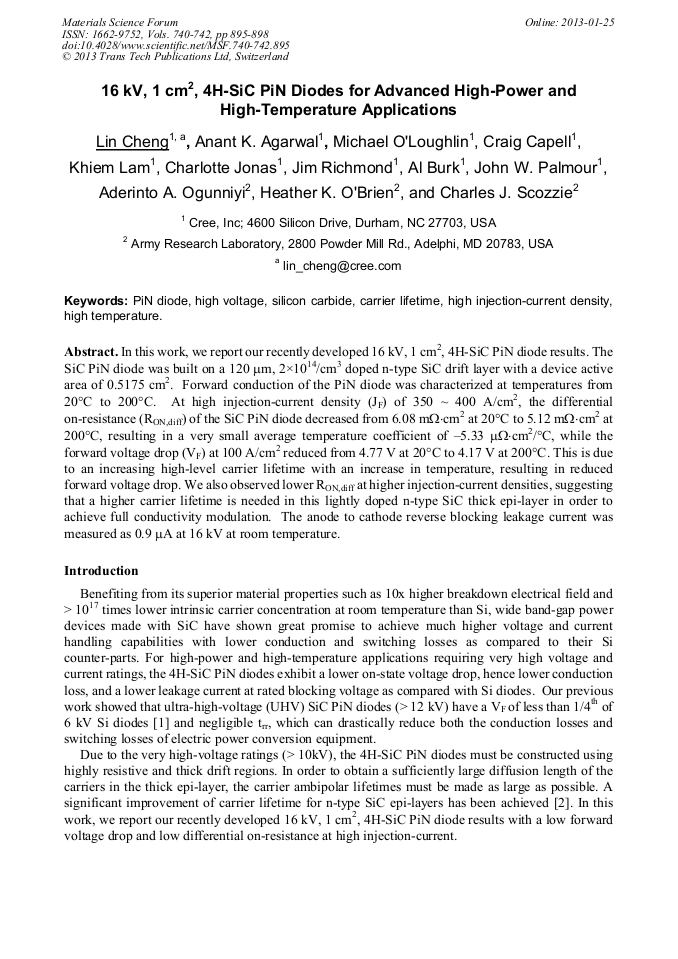

16 kV, 1 cm², 4H-SiC PiN Diodes for Advanced High-Power and High-Temperature Applications

Abstract:

In this work, we report our recently developed 16 kV, 1 cm², 4H-SiC PiN diode results. The SiC PiN diode was built on a 120 µm, 2×10¹⁴/cm³ doped n-type SiC drift layer with a device active area of 0.5175 cm². Forward conduction of the PiN diode was characterized at temperatures from 20°C to 200°C. At high injection-current density (J_F) of 350 ~ 400 A/cm², the differential on-resistance (R_ON,diff) of the SiC PiN diode decreased from 6.08 mΩ·cm² at 20°C to 5.12 mΩ·cm² at 200°C, resulting in a very small average temperature coefficient of –5.33 µΩ·cm²/°C, while the forward voltage drop (V_F) at 100 A/cm² reduced from 4.77 V at 20°C to 4.17 V at 200°C. This is due to an increasing high-level carrier lifetime with an increase in temperature, resulting in reduced forward voltage drop. We also observed lower R_ON,diff at higher injection-current densities, suggesting that a higher carrier lifetime is needed in this lightly doped n-type SiC thick epi-layer in order to achieve full conductivity modulation. The anode to cathode reverse blocking leakage current was measured as 0.9 µA at 16 kV at room temperature.
