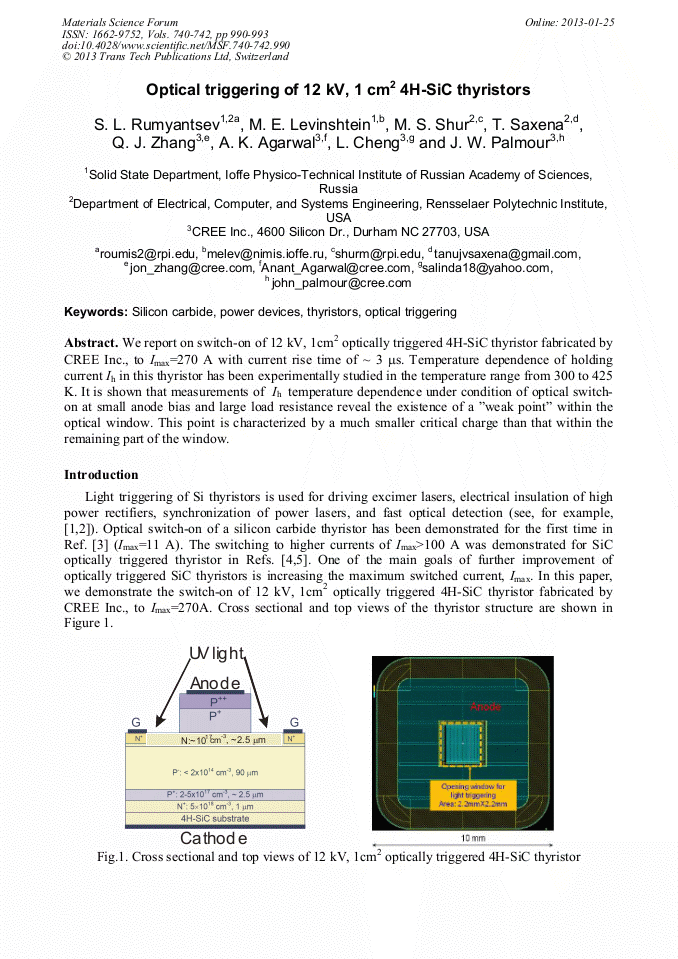

Optical Triggering of 12 kV 1 cm² 4H-SiC Thyristors

Abstract:

We report on switch-on of 12 kV, 1cm2 optically triggered 4H-SiC thyristor fabricated by CREE Inc., to Imax=270 А with current rise time of ~ 3 s. Temperature dependence of holding current Ih in this thyristor has been experimentally studied in the temperature range from 300 to 425 K. It is shown that measurements of Ih temperature dependence under condition of optical switch-on at small anode bias and large load resistance reveal the existence of a ”weak point” within the optical window. This point is characterized by a much smaller critical charge than that within the remaining part of the window.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2012

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 740-742)

Pages:

990-993

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.740-742.990

Citation:

Cite this paper

Online since:

January 2013

Authors:

Sergey L. Rumyantsev, Mikhail E. Levinshtein, Michael S. Shur, Tanuj Saxena, Q.J. Zhang, Anant Agarwal, L. Cheng, John W. Palmour

Keywords:

Optical Triggering, Power Device, Silicon Carbide (SiC), Thyristor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D. Giorgi, P.K.L. Yu, J.R. Long, V.D. Lew, T. Nouvapanih, O.S.F. Zuker, Light-activated silicon diode switches, Journ. Appl. Phys., 63 (1988) 930-933.

DOI: 10.1063/1.340035

Google Scholar

[2] G. Bickel, P. Heremans, M. Kuijk, R. Vounkx, and G. Gorghs, Receiver with optical thyristors operating at 155 Mbit/s with 3 femto-Joule optical inputs, Appl. Phys. Lett. 70 (1997) 750-752.

DOI: 10.1063/1.118269

Google Scholar

[3] M.E. Levinshtein, P.A. Ivanov, A.K. Agarwal, J.W. Palmour, Optical switch-on of silicon carbide thyristor, Electron. Lett., 38, (2002) 592-593.

DOI: 10.1049/el:20020415

Google Scholar

[4] N. Dheilly, C. Paques, S. Scharnholz, D. Planson, Pulse characterization of optically triggered SiC thyristors, Abstract Book of 2011 International Conference on Silicon Carbide and Related Materials (ICSCRM 2011), September 11-16, 2011, 410.

DOI: 10.4028/www.scientific.net/msf.717-720.1179

Google Scholar

[5] S. L. Rumyantsev, M. E. Levinshtein, M. S. Shur, T. Saxena, Q. J. Zhang, A. K. Agarwal and J. W. Palmour, Optical triggering of 12 kV, 100 A 4H-SiC thyristors, Semicond. Sci. Technol. 27 (2012) 015012

DOI: 10.1088/0268-1242/27/1/015012

Google Scholar

[6] M. Levinshtein, S. Rumyantsev, T. Mnatsakanov, A. Agarwal, J. Palmour, SiC thyristors, in "SiC Materials and Devices – vol. 1", ed., M.S. Shur, S.L. Rumyantsev, M.E. Levinshtein, World Scientific, 2006.

DOI: 10.1142/9789812773371_0007

Google Scholar

[7] M.I. Dyakonov, M.E. Levinshtein, Theory of propagation of the turned-on state in a thyristor, Sov. Phys. Semicond., 12, (1978) 426-433.

Google Scholar
