Monolithic Integration of Power MESFET for High Temperature SiC Integrated Circuits

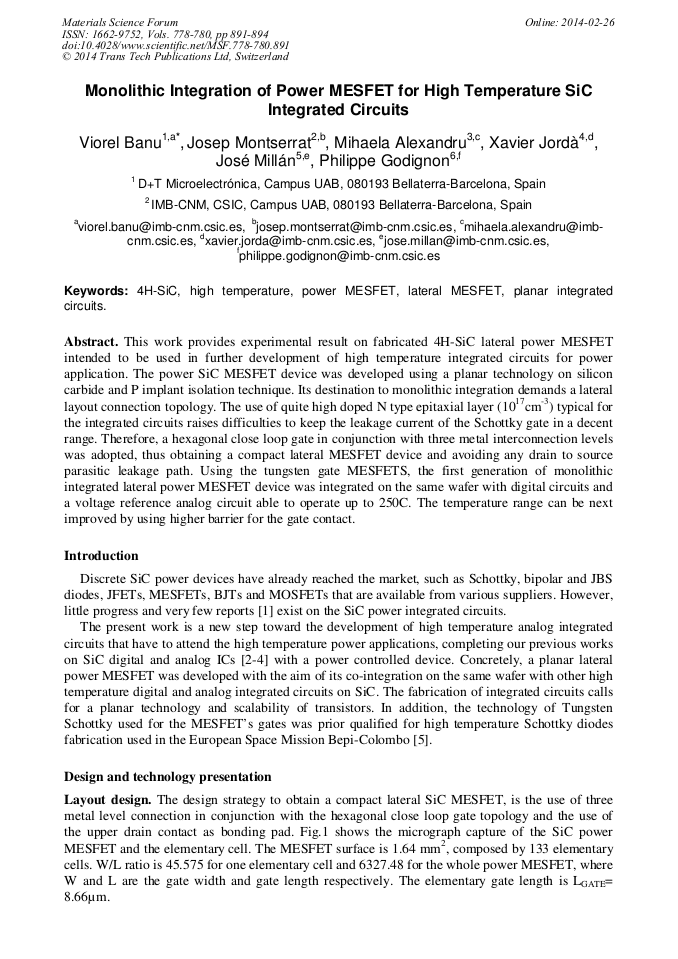

Abstract:

This work provides experimental result on fabricated 4H-SiC lateral power MESFET intended to be used in further development of high temperature integrated circuits for power application. The power SiC MESFET device was developed using a planar technology on silicon carbide and P implant isolation technique. Its destination to monolithic integration demands a lateral layout connection topology. The use of quite high doped N type epitaxial layer (10¹⁷cm^-3) typical for the integrated circuits raises difficulties to keep the leakage current of the Schottky gate in a decent range. Therefore, a hexagonal close loop gate in conjunction with three metal interconnection levels was adopted, thus obtaining a compact lateral MESFET device and avoiding any drain to source parasitic leakage path. Using the tungsten gate MESFETS, the first generation of monolithic integrated lateral power MESFET device was integrated on the same wafer with digital circuits and a voltage reference analog circuit able to operate up to 250C. The temperature range can be next improved by using higher barrier for the gate contact.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2013

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 778-780)

Pages:

891-894

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.778-780.891

Citation:

Cite this paper

Online since:

February 2014

Authors:

Viorel Banu*, Josep Montserrat, Mihaela Alexandru, Xavier Jordá, José Millan, Philippe Godignon

Keywords:

4H-SiC, High-Temperature, Lateral MESFET, Planar Integrated Circuits, Power MESFET

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J.B. Casady et al, A Hybrid 6H-SiC Temperature Sesor Operational from 25°C to 500°C, IEEE Tran. On Components, Packaging and Manufacturing Technology-PartA, Vol. 19, No. 3 Sept. 1996, pp.416-422.

DOI: 10.1109/95.536843

Google Scholar

[2] M. Alexandru et al., Materials Science Forum Vol. 711 (2012) pp.104-108.

Google Scholar

[3] M. Alexandru et. al., Materials Science Forum Vols. 740-742 (2013) pp.1048-1051.

Google Scholar

[4] V. Banu et al., High Temperature-Low Temperature Coefficient Analog Voltage Reference Integrated Circuit Implemented with SiC MESFETs, ESDSERC-ESSCIRC 2013, to be published.

DOI: 10.1109/esscirc.2013.6649164

Google Scholar

[5] P. Godignon et al., IEEE Trans. on Industrial Electronics, vol. 58, iss 7, pp.2582-2589. July (2011).

Google Scholar
