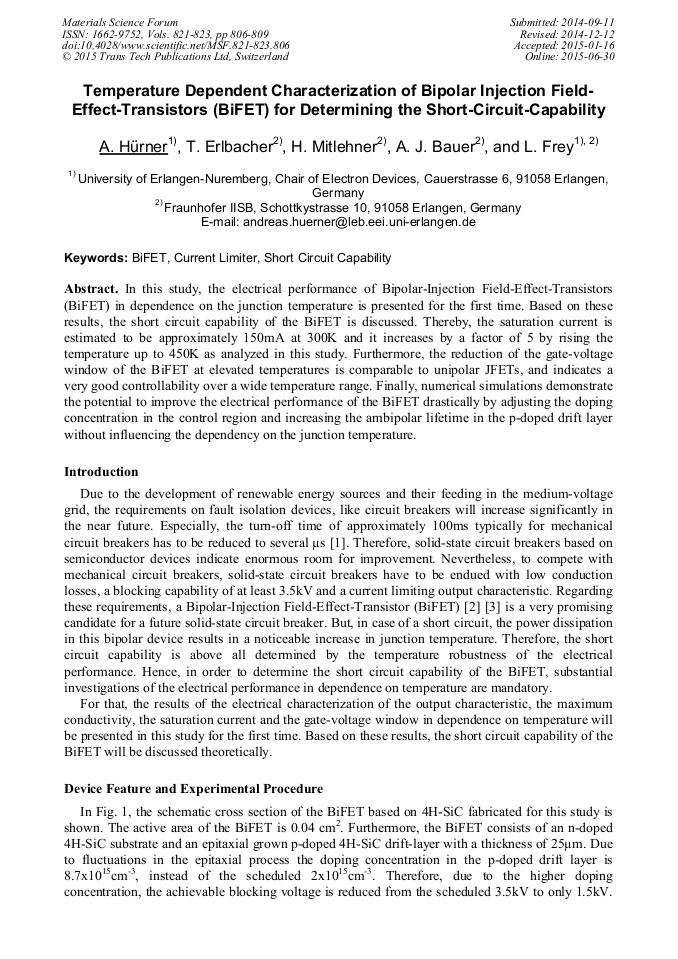

Temperature Dependent Characterization of Bipolar Injection Field-Effect-Transistors (BiFET) for Determining the Short-Circuit-Capability

Abstract:

In this study, the electrical performance of Bipolar-Injection Field-Effect-Transistors (BiFET) in dependence on the junction temperature is presented for the first time. Based on these results, the short circuit capability of the BiFET is discussed. Thereby, the saturation current is estimated to be approximately 150mA at 300K and it increases by a factor of 5 by rising the temperature up to 450K as analyzed in this study. Furthermore, the reduction of the gate-voltage window of the BiFET at elevated temperatures is comparable to unipolar JFETs, and indicates a very good controllability over a wide temperature range. Finally, numerical simulations demonstrate the potential to improve the electrical performance of the BiFET drastically by adjusting the doping concentration in the control region and increasing the ambipolar lifetime in the p-doped drift layer without influencing the dependency on the junction temperature.

• Periodical: Materials Science Forum (Volumes 821-823)
• Pages: 806-809
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.821-823.806
• Online since: June 2015
• Authors: Andreas Hürner*, Tobias Erlbacher, Heinz Mitlehner, Anton J. Bauer, Lothar Frey
• Keywords: BiFET, Current Limiter, Short Circuit Capability

References

[1] Meyer, C.; Schroder, S.; De Doncker, R.W., Solid-state circuit breakers and current limiters for medium-voltage systems having distributed power systems, Power Electronics, IEEE Transactions on , vol. 19, no. 5, p.1333, 1340, Sept. (2004).

DOI: 10.1109/tpel.2004.833454

[2] Mitlehner, H.; Friedrichs, P.; Elpelt, R.; Dohnke, K.O.; Schörner, R.; Stephani, D., BiFET – a novel bipolar switch for high voltage power electronics, Material Science Forum, vols. 457 – 460, p.1245, 1248, (2004).

DOI: 10.4028/www.scientific.net/msf.457-460.1245

[3] Sung, W.; Baliga, B.J.; Huang, A.Q., A Novel 4H-SiC Fault Isolation Device with Improved Trade-off between On-state Voltage Drop and Short Circuit SOA, Material Science Forum, vols. 717 – 720, p.1045. 1048, (2012).

DOI: 10.4028/www.scientific.net/msf.717-720.1045

[4] Peters, D.; Schoerner, R., US patent US 6, 204, 135 B1.

[5] Boughrara, N.; Moumen, S.; Lefebvre, S.; Khatir, Z.; Friedrichs, P.; Faugieres, J. -C.; Robustness of SiC JFET in Short-Circuit Modes, Electron Device Letters, IEEE , vol. 30, no. 1, p.51, 53, Jan. (2009).

DOI: 10.1109/led.2008.2008668

[6] Huang, Xing; Wang, Gangyao; Li, Yingshuang; Huang, Alex Q.; Baliga, B. Jayant, Short-circuit capability of 1200V SiC MOSFET and JFET for fault protection, Applied Power Electronics Conference and Exposition (APEC), 2013 Twenty-Eighth Annual IEEE , vol., no., p.197, 200, March (2013).

DOI: 10.1109/apec.2013.6520207

[7] Daniel Domes, Christoph Messelke, Peter Kanschat, 1st industrialized 1200V SiC JFET module for high energy efficiency applications, Proc. PCIM, May (2011).
