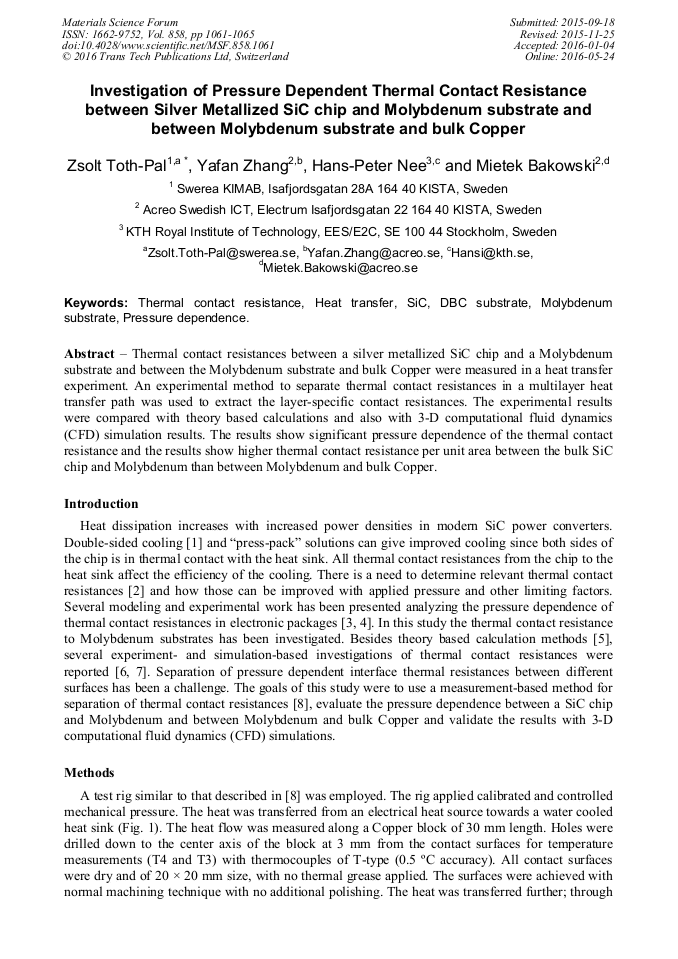

Investigation of Pressure Dependent Thermal Contact Resistance between Silver Metallized SiC Chip and Molybdenum Substrate and between Molybdenum Substrate and Bulk Copper

Abstract:

– Thermal contact resistances between a silver metallized SiC chip and a Molybdenum substrate and between the Molybdenum substrate and bulk Copper were measured in a heat transfer experiment. An experimental method to separate thermal contact resistances in a multilayer heat transfer path was used to extract the layer-specific contact resistances. The experimental results were compared with analytical calculations and also with 3-D computational fluid dynamics (CFD) simulation results. The results show significant pressure dependence of the thermal contact resistance and the results show higher thermal contact resistance per unit area between the bulk SiC chip and Molybdenum than between Molybdenum and bulk Copper.

• Periodical: Materials Science Forum (Volume 858)
• Pages: 1061-1065
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.858.1061
• Online since: May 2016
• Authors: Zsolt Toth-Pal*, Ya Fan Zhang, Hans Peter Nee, Mietek Bakowski
• Keywords: DBC Substrate, Heat Transfer, Molybdenum Substrate, Pressure Dependence, Silicon Carbide (SiC), Thermal Contact Resistance

References

[1] Buttay, C.; Rashid, J.; Mark Johnson, C.; Ireland, P.; Udrea, F.; Amaratunga, G.; Malhan, R.; High performance cooling system for automotive inverters, 2007 European Conference on Power Electronics and Applications, Sept 2007, pp.1-9.

DOI: 10.1109/epe.2007.4417363

[2] Fieberg, C.; Kneer, R.; Determination of thermal contactresistances from transient temperature measurements, International Journal of Heat and Mass Transfer, Vol. 51, Issues 5-6, pp.1017-1023.

DOI: 10.1016/j.ijheatmasstransfer.2007.05.004

[3] Grujicic, M.; Zhao, C.L.; Dusel, E.C.; The effect of thermal contact resistance on heat management in the electronic packaging, Journal of Applied Surface Science Vol. 246, pp.290-302, June (2005).

DOI: 10.1016/j.apsusc.2004.11.030

[4] Cui, T.; Li, Q.; Zhang, P.; Multiscale simulation of thermal contact resistance in electronic packaging, International Journal of Thermal Sciences, Vol. 83, pp.16-24, September (2014).

DOI: 10.1016/j.ijthermalsci.2014.04.006

[5] Yovanovich, M. et al, Calculating interface resistance, Electronics Cooling, Vol. 3, no. 2, pp.24-29, (1997).

[6] Poller, T.; Lutz, J. ; D'Arco, S. ; Hernes, M. 15th European Conference on Power Electronics and Applications (EPE), 2013 2-6 Sept. 2013 Lille, France pp.1-9.

DOI: 10.1109/epe.2013.6634440

[7] Luo, X.; Feng, H.; Liu, Jv.; Liu, M.L.; Liu, Sh.; An experimental Investigation on Thermal Contact Resistance across Metal Contact Interfaces, International Conference on Electronic Packaging Technology & High Density Packaging 2011. pp.733-738.

DOI: 10.1109/icept.2011.6066936

[8] Toth-Pal, Z.; Zhang, Y.; Below, I.; Nee, H-P.; Bakowski, M.; European Conference on Silicon Carbide and Related materials 2014 (ESCRM 2014) Grenoble, France September 21 – 26. 2014. Materials Science Forum Vol. 821-823 (2015) pp.452-455.

DOI: 10.4028/www.scientific.net/msf.821-823.452
