High Efficiency Activation of Phosphorus Atoms in 4H-SiC by Atmospheric Pressure Thermal Plasma Jet Annealing

Hiroaki Hanafusa; Keisuke Maruyama; Ryosuke Ishimaru; Seiichiro Higashi

doi:10.4028/www.scientific.net/MSF.858.535

Paper Titles

A Surprising Result: “Bulk” SiC Defects in the Negative Bias Instability in 4H-SiC MOSFETs
p.513

1950°C Annealing of Al⁺ Implanted 4H-SiC: Sheet Resistance Dependence on the Annealing Time
p.523

Al Doping from Laser Irradiated Al Film Deposited on 4H-SiC
p.527

Alternative Highly Homogenous Drift Layer Doping for 650 V SiC Devices
p.531

High Efficiency Activation of Phosphorus Atoms in 4H-SiC by Atmospheric Pressure Thermal Plasma Jet Annealing
p.535

Silicon Carbide Recrystallization Mechanism by Non-Equilibrium Melting Laser Anneal
p.540

Warpage Structure of 4H-SiC after Implantation and Annealing Processes
p.544

Low Resistance Ohmic Contact Formation on 4H-SiC C-Face with NbNi Silicidation Using Nanosecond Laser Annealing
p.549

Thermally Stable Ohmic Contact to p-Type 4H-SiC Based on Ti₃SiC₂ Phase
p.553

HomeMaterials Science ForumMaterials Science Forum Vol. 858High Efficiency Activation of Phosphorus Atoms in...

High Efficiency Activation of Phosphorus Atoms in 4H-SiC by Atmospheric Pressure Thermal Plasma Jet Annealing

Abstract:

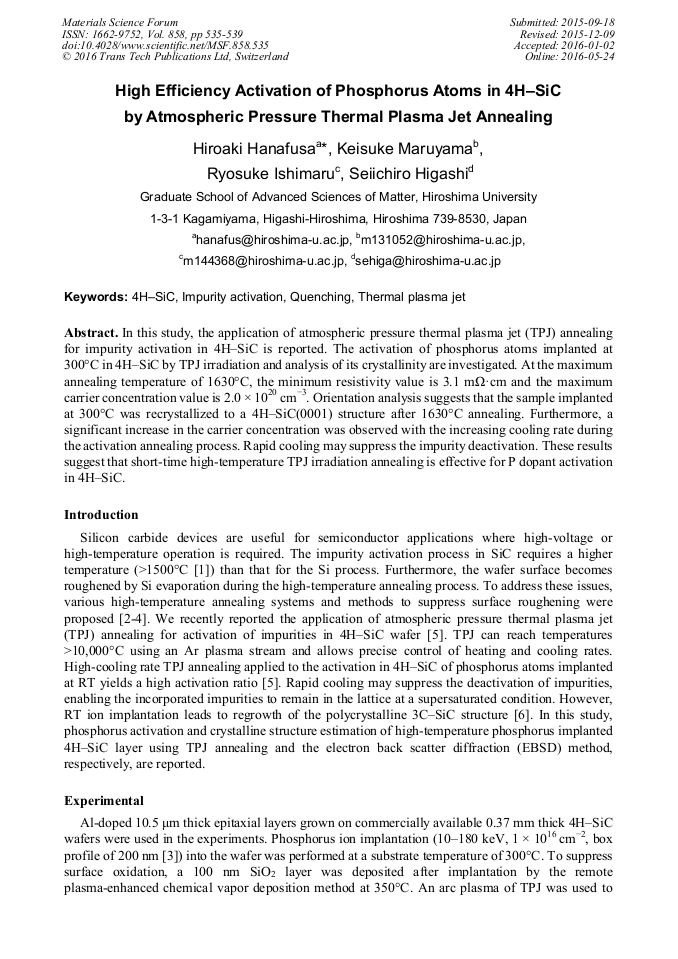

In this study, the application of atmospheric pressure thermal plasma jet (TPJ) annealing for impurity activation in 4H–SiC is reported. The activation of phosphorus atoms implanted at 300°C in 4H–SiC by TPJ irradiation and analysis of its crystallinity are investigated. At the maximum annealing temperature of 1630°C, the minimum resistivity value is 3.1 mΩ·cm and the maximum carrier concentration value is 2.0 × 10²⁰ cm⁻³. Orientation analysis suggests that the sample implanted at 300°C was recrystallized to a 4H–SiC(0001) structure after 1630°C annealing. Furthermore, a significant increase in the carrier concentration was observed with the increasing cooling rate during the activation annealing process. Rapid cooling may suppress the impurity deactivation. These results suggest that short-time high-temperature TPJ irradiation annealing is effective for P dopant activation in 4H–SiC.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2015

View Preview

Info:

Periodical:

Materials Science Forum (Volume 858)

Pages:

535-539

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.858.535

Citation:

Cite this paper

Online since:

May 2016

Authors:

Hiroaki Hanafusa*, Keisuke Maruyama, Ryosuke Ishimaru, Seiichiro Higashi

Keywords:

4H-SiC, Impurity Activation, Quenching, Thermal Plasma Jet

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. V. Rao, Solid-State Electron 47 (2003) 213.

Google Scholar

[2] M. A. Capano, S. Ryu, J. A. Cooper, Jr., M. R. Melloch, K. Rottner, S. Karlsson, N. Nordell, A. Powell and D. E. Walker, Jr., J. Electron. Mater. 28 (1999) 214.

DOI: 10.1007/s11664-999-0016-z

Google Scholar

[3] Y. Negoro, K. Katsumoto, T. Kimoto and H. Matsunami, J. Appl. Phys. 96 (2004) 224.

Google Scholar

[4] J. Senzaki, K. Fukuda and K. Arai, J. Appl. Phys. 94 (2003) 2942.

Google Scholar

[5] K. Maruyama, H. Hanafusa, R. Ashihara, S. Hayashi, H, Murakami and S. Higasahi, Jpn. J. Appl. Phys. 54 (2015) 06GC01.

Google Scholar

[6] M. Satoh, Mater. Sci. Forum 389 (2002) 773.

Google Scholar

[7] H. Hanafusa, K. Maruyama, S. Hayashi and S. Higashi, Mat. Sci. Forum 391 (2015) 821.

Google Scholar

[8] R. Nipoti, A. Nath, S. B. Qadri, Y-L. Tian, C. Albonetti, A. Carmera and M. V. Rao, J. Electron. Mater. 41 (2012) 457.

Google Scholar

[9] Y. Tanaka, K. Arai and H. Tanoue, Mat. Sci. Forum 389 (2002) 799.

Google Scholar
