Threshold-Voltage Instability in SiC MOSFETs Due to Near-Interfacial Oxide Traps

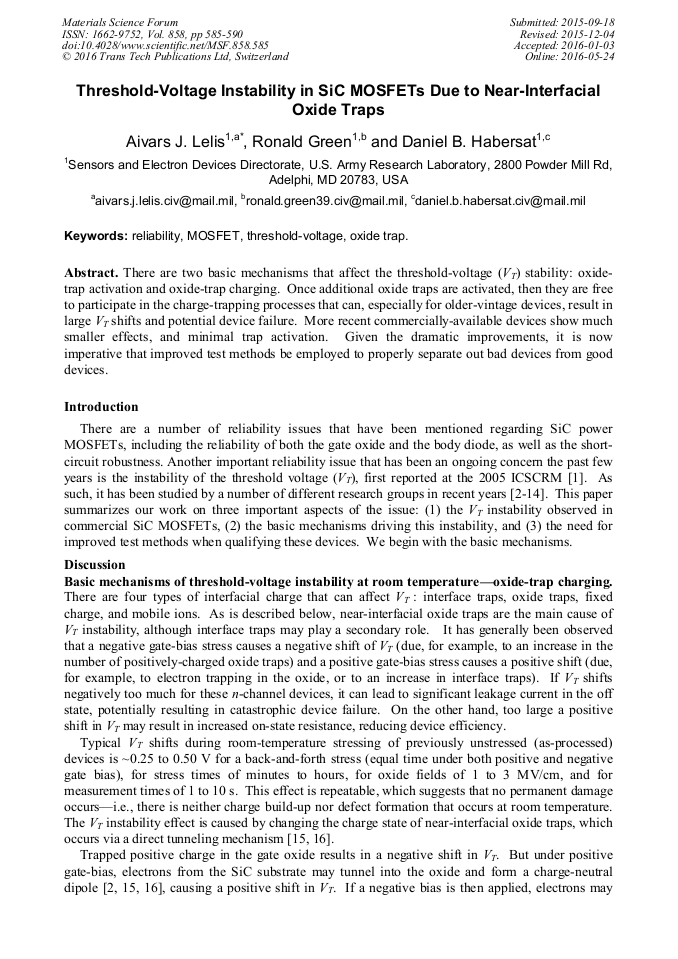

Article Preview

Abstract:

There are two basic mechanisms that affect the threshold-voltage (V_T) stability: oxide-trap activation and oxide-trap charging. Once additional oxide traps are activated, then they are free to participate in the charge-trapping processes that can, especially for older vintage devices, result in large V_T shifts and potential device failure. More recent commercially-available devices show much smaller effects, and minimal trap activation. Given the dramatic improvements, it is now imperative that improved test methods be employed to properly separate out bad devices from good devices.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2015

Info:

Periodical:

Materials Science Forum (Volume 858)

Pages:

585-590

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.858.585

Citation:

Cite this paper

Online since:

May 2016

Authors:

Aivars J. Lelis*, Ronald Green, Daniel B. Habersat

Keywords:

MOSFET, Oxide Traps, Reliability, Threshold-Voltage

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] A.J. Lelis, et al., Mater. Sci. Forum 527-529 (2006) 1317.

[2] A. J. Lelis, R. Green, D. B. Habersat, and M. El, IEEE Trans. Elec. Dev., 62(2) (2015) 316.

[3] M. Gurfinkel, et al., IEEE Trans. Elec. Dev., 55(8) (2008) (2004).

[4] T. Okayama, S. D. Arthur, J. L. Garrett, and M. V. Rao, Solid-State Electronics, 52 (2008) 164.

[5] M. J. Tadjer, K. D. Hobart, E. Imhoff, and F. J. Kub, Mater. Sci. Forum, 600-603 (2009) 1147.

[6] M. Grieb, et al., Mater. Sci. Forum, 645-648 (2010) 681.

[7] H. Yano, et al., Mater. Sci. Forum, 679-680 (2011) 603.

[8] S. DasGupta, et al., Appl. Phys. Lett., 99 (2011) 023503.

[9] M. Okamoto, et al., Applied Physics Express, 5 (2012) 041302.

[10] S. Noll, D. Scholten, M. Grieb, A. Bauer, and L. Frey, Mater. Sci. Forum, 740-742 (2013) 521.

[11] T. Aichinger, P. Lenahan, and D. Peters, Mater. Sci. Forum, 740-742 (2013) 529.

[12] H. Watanabe, et al., Mater. Sci. Forum, 740-742 (2013) 741.

[13] G. Pobegen and T. Grasser, Mater. Sci. Forum, 740-742 (2013) 757.

[14] K. Matocha, et al., Mater. Sci. Forum, 778-780 (2014) 903.

[15] A. J. Lelis, et al., IEEE Trans. Nucl. Sci., 36(6) (1989) 1808.

[16] A. J. Lelis, et al., IEEE Trans. Elec. Dev., 55(8) (2008) 1835.

[17] A. J. Lelis, D. Habersat, R. Green, and N. Goldsman, Mater. Sci. Forum, 717-720 (2012) 465.

[18] A. Lelis, D. Habersat, R. Green, and M. El, ECS Transactions, 58(4), (2013) 87.

[19] V. V. Afanas'ev, et al., Appl. Phys. Lett., 82(4) (2003) 568.

[20] H. Yano, T. Araoka, T. Hatayama, and T. Fuyuki, Mater. Sci. Forum, 740-742 (2013) 727.

[21] A. J. Lelis, R. Green, and D. Habersat, Mater. Sci. Forum, 679-680 (2011) 599.

[22] X. Shen and S. Pantelides, private communication, Aug. (2014).

[23] C. J. Cochrane, P. M. Lenahan, and A. J. Lelis, J. Appl. Phys., 109(1) (2011) 014506.

[24] M. A. Anders, et al., 2015 Intl. Rel. Physics Symposium Proc. (2015) 3E. 4. 1 - 3E. 4. 5.

[25] P. M. Lenahan and P. V. Dressendorfer, J. Appl. Phys., 55(10) (1984) 3495.

[26] R. Green, A. J. Lelis, M. El, and D. Habersat, Mater. Sci. Forum, 740-742 (2013) 549.

[27] E. Ö. Sveinbjörnsson, et al., Mater. Sci. Forum, 527–529 (2006) 961.

[28] D. J. Lichtenwalner, et al., Mater. Sci. Forum, 821–823 (2015) 749.

[29] Z. Chen, et al., J. Electron. Mater., 39(5) (2010) 526.

[30] D. B. Habersat, et al., Mater. Sci. Forum, 717–720 (2012) 461.

[31] A. Chanthaphan, et al., Mater. Sci. Forum, 778–780 (2014) 541.

[32] D. B. Habersat, N. Goldsman, and A. J. Lelis, Mater. Sci. Forum, 821–823 (2015) 697.

[33] R. Green, A. Lelis, M. El, and D. Habersat, Mater. Sci. Forum, 821-823 (2015) 677.

[34] A. Lelis, R. Green, D. Habersat, and M. El, presented at the International SiC Power Electronics Applications Workshop (ISiCPEAW); Stockholm, Sweden (May 2015) (unpublished).

[35] R. Green, A. Lelis, and D. Habersat, 2011 Intl. Rel. Physics Symposium Proc. 11 (2011) 756.

[36] Stress Test Qualification for Automotive Grade Discrete Semiconductors, AEC-Q101-Rev-C, (2005).

[37] Temperature, Bias, and Operating Life Std., JESD22-A108C, (2005).

[38] Test Methods for Semiconductor Devices, MIL-STD-750E, (2006).

[39] D. Habersat, A. Lelis, R. Green, and M. El, Comparison of Test Methods for Proper Characterization of VT in SiC MOSFETs, to be published Mater. Sci. Forum (2016).
