Shielded Gate SiC Trench Power MOSFET with Ultra-Low Switching Loss

Abstract:

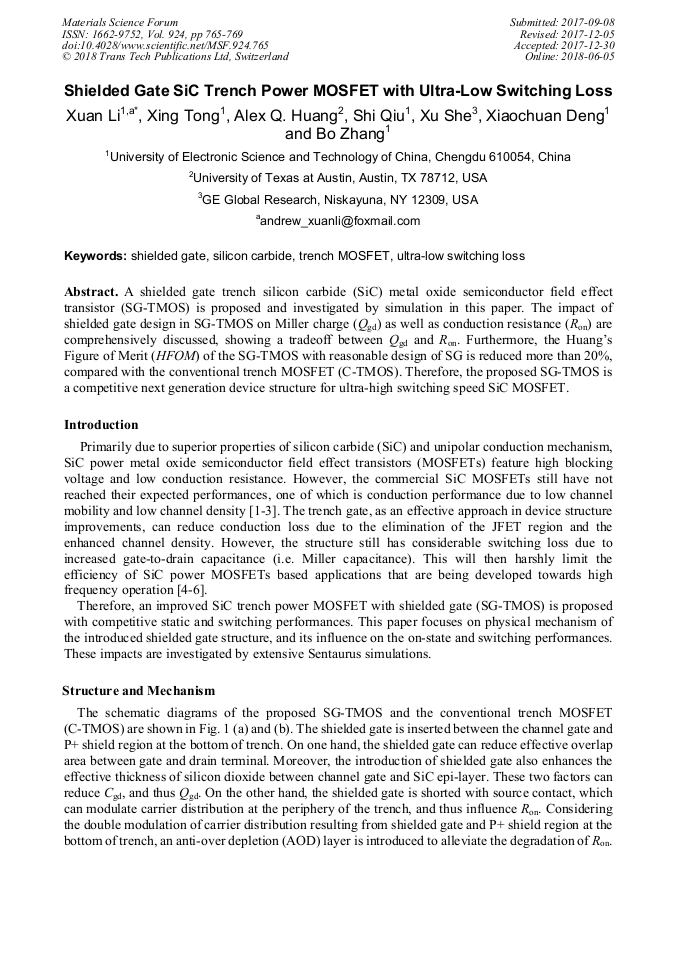

Article Preview

A shielded gate trench silicon carbide (SiC) metal oxide semiconductor field effect transistor (SG-TMOS) is proposed and investigated by simulation in this paper. The impact of shielded gate design in SG-TMOS on Miller charge (Qgd) as well as conduction resistance (Ron) are comprehensively discussed, showing a tradeoff between Qgd and Ron. Furthermore, the Huang’s Figure of Merit (HFOM) of the SG-TMOS with reasonable design of SG is reduced more than 20%, compared with the conventional trench MOSFET (C-TMOS). Therefore, the proposed SG-TMOS is a competitive next generation device structure for ultra-high switching speed SiC MOSFET.

Info:

Periodical:

Edited by:

Robert Stahlbush, Philip Neudeck, Anup Bhalla, Robert P. Devaty, Michael Dudley and Aivars Lelis

Pages:

765-769

Citation:

X. Li et al., "Shielded Gate SiC Trench Power MOSFET with Ultra-Low Switching Loss", Materials Science Forum, Vol. 924, pp. 765-769, 2018

Online since:

June 2018

Export:

Price:

$38.00

* - Corresponding Author

[1] T. Kimoto, J. A. Cooper, Fundamentals of Silicon Carbide Technology: growth, characterization, devices and application, Wiley, Singapore, (2014).

[2] J. W. Palmour, L. Cheng, V. Pala, E. V. Brunt, D. J. Lichtenwalner, G. -Y Wang, J. Richmond, M. O'Loughlin, S.Ryu, S. T. Allen, A. A. Burk and C. Scozzie, Silicon Carbide Power MOSFETs: Breakthrough Performance from 900V up to 15kV, IEEE Int. Symp. Power Semiconductor Devices ICs (ISPSD). (2014).

DOI: https://doi.org/10.1109/ispsd.2014.6855980

[3] B.J Baliga, Silicon Carbide Power Devices, World Scientific, Singapore, (2006).

[4] Xuan Li, Liqi Zhang, Suxuan Guo, Yang Lei, Alex Q. Huang, Bo Zhang, Understanding Switching Losses in SiC MOSFET: Toward Lossless Switching, 3rd IEEE Workshop on Wide Bandgap Power Device and Application (WIPDA). (2015) 257-262.

DOI: https://doi.org/10.1109/wipda.2015.7369295

[5] Suxuan Guo, Liqi Zhang, Yang Lei, Xuan Li, Wensong Yu, Alex Q. Huang, Design and Application of a 1200V Ultra-fast Integrated Silicon Carbide MOSFET Module, 2016 IEEE Applied Power Electronics Conference and Exposition (APEC). (2016) 2063-(2070).

DOI: https://doi.org/10.1109/apec.2016.7468151

[6] X. Li, J. N. Jiang, A. Q. Huang, S. X Guo, X.C. Deng, B. Zhang and X. She, A SiC Power MOSFET Loss Model Suitable for High Frequency Applications, IEEE Trans. Ind. Electron. Vol. PP (2017) 1–1.

DOI: https://doi.org/10.1109/tie.2017.2703910

[7] T. Nakamura, Y. Nakano, M. Aketa, R. Nakamura, S. Mitani, H. Sakairi, and Y. Yokotsuji, Charge Storage Effect in SiC Trench MOSFET with a Floating p-Shield and Its Impact on Dynamic Performances, inTech. Dig. Int. Electron Devices Meeting. (2011).

DOI: https://doi.org/10.1109/iedm.2011.6131619

[8] J. Wei, M. Zhang, H. P Jiang, H. X. Wang and K. J. Chen, Charge Storage Effect in SiC Trench MOSFET with a Floating p-Shield and Its Impact on Dynamic Performances, IEEE Int. Symp. Power Semiconductor Devices ICs (ISPSD). (2017) 387-390.

DOI: https://doi.org/10.23919/ispsd.2017.7988985

[9] Alex Q. Huang, New Unipolar Switching Power Device Figs of Merit, IEEE Electron Device Letter. Vol. 25 (2004) 298-301.

DOI: https://doi.org/10.1109/led.2004.826533
