Optimizing 1.2 kV SiC Trench MOSFETs for Enhanced Performance and Manufacturing Efficiency

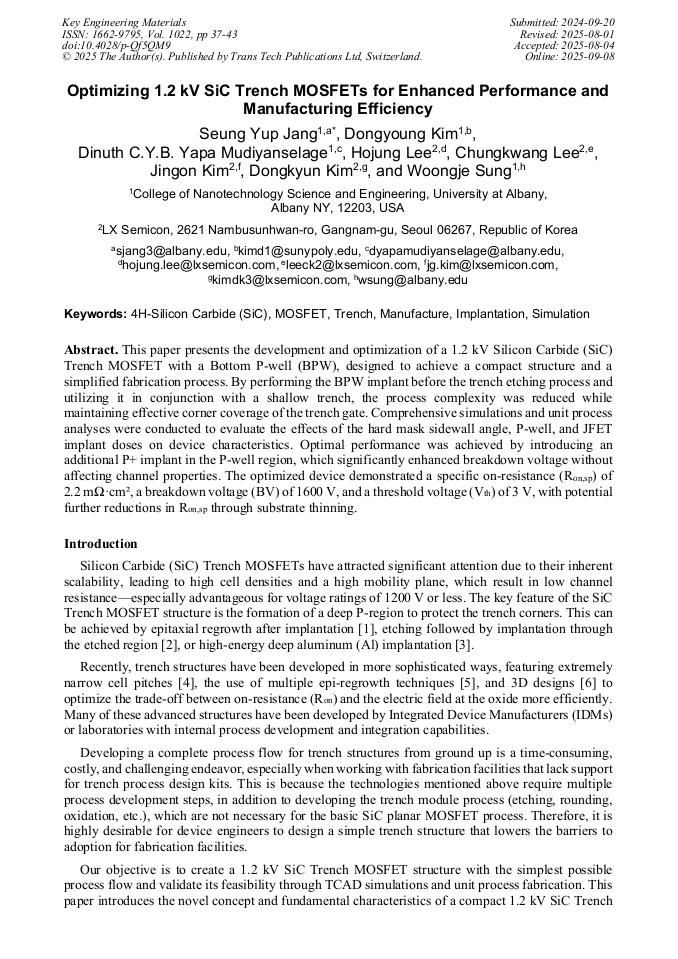

Abstract:

This paper presents the development and optimization of a 1.2 kV Silicon Carbide (SiC) Trench MOSFET with a Bottom P-well (BPW), designed to achieve a compact structure and a simplified fabrication process. By performing the BPW implant before the trench etching process and utilizing it in conjunction with a shallow trench, the process complexity was reduced while maintaining effective corner coverage of the trench gate. Comprehensive simulations and unit process analyses were conducted to evaluate the effects of the hard mask sidewall angle, P-well, and JFET implant doses on device characteristics. Optimal performance was achieved by introducing an additional P+ implant in the P-well region, which significantly enhanced breakdown voltage without affecting channel properties. The optimized device demonstrated a specific on-resistance (R_on,sp) of 2.2 mΩ·cm², a breakdown voltage (BV) of 1600 V, and a threshold voltage (V_th) of 3 V, with potential further reductions in R_on,sp through substrate thinning.

By email View Pdf

You have full access to the following eBook

Characteristics Evaluation and Device Design

Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1022)

Pages:

37-43

DOI:

https://doi.org/10.4028/p-Qf5QM9

Citation:

Cite this paper

Online since:

September 2025

Authors:

Seung Yup Jang*, Dong Young Kim, Dinuth C.Y.B. Yapa Mudiyanselage, Ho Jung Lee, Chung Kwang Lee, Jin Gon Kim, Dong Kyun Kim, Woong Je Sung

Keywords:

4H-Silicon Carbide (SiC), Implantation, Manufacture, MOSFET, Simulation, Trench

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] S. Harada, Y. Kobayashi, A. Kinoshita, N. Ohse, T. Kojima, M. Iwaya, H. Shiomi, H. Kitai, S. Kyogoku, K. Ariyoshi, Y. Onishi, and H. Kimura, Materials Science Forum, 897 (2017) 497-500.

DOI: 10.4028/www.scientific.net/msf.897.497

Google Scholar

[2] R. Tanaka, K. Sugawara, Y. Fukui, H. Hatta, H. Koketsu, H. Suzuki, Y. Miyata, K. Taguchi, Y. Kagawa, S. Tomohisa, and N. Miura, Materials Science Forum, 1004 (2019) 770-775.

DOI: 10.4028/www.scientific.net/msf.1004.770

Google Scholar

[3] S. Harada, Y. Kobayashi, K. Ariyoshi, T. Kojima, J. Senzaki, Y. Tanaka, and H. Okumura, IEEE Electron Device Letters, 37 (2016), 314-316.

DOI: 10.1109/led.2016.2520464

Google Scholar

[4] M. Sampath, D. Morisette, and J. A. Cooper, Key Engineering Materials, 946 (2023) 95-102.

Google Scholar

[5] S. Harada, Y. Kobayashi, S. Kyogoku, T. Morimoto, T. Tanaka, M. Takei, and H. Okumura, IEEE International Electron Devices Meeting (2018), 8.2.1-8.2.4.

DOI: 10.1109/iedm.2018.8614670

Google Scholar

[6] Y. Ebihara, Aiko Ichimura, S. Mitani, M. Noborio, Y. Takeuchi, S. Mizuno, T. Yamamoto, and K. Tsuruta, International Symposium on Power Semiconductor Devices & ICs (2018), 44-47.

DOI: 10.1109/ispsd.2018.8393598

Google Scholar

[7] Y. Kobayashi, S. Harada, H. Ishimori, S. Takasu, T. Kojima, K. Ariyoshi, M. Sometani, J. Senzaki, M. Takei, Y. Tanaka, and H. Okumura, Materials Science Forum, 858 (2016), 974-977.

DOI: 10.4028/www.scientific.net/msf.858.974

Google Scholar
